What is peak to peak voltage

So, what is AC peak voltage? As the name implies, AC peak voltage is the maximum or peak voltage the source can or will achieve. Peak voltage, which we designate as VP, is measured from the horizontal axis (at 0 reference height) to the top of the waveform or crest.

Is 120 VAC the same as 120 volts?

Voltage Amperage and Frequency There is no such thing as VAC power - it is just AC power. When you see 110 VAC on an appliance, it means 110 volts AC power. Voltage is a measure of "circuit pressure." It refers to how hard the electricity pushes through a circuit.

What is meant by ripple current?

The ripple current in capacitors mainly means the current flowing into capacitors when the load current to IC changes. At this time, capacitors generate heat by the ripple current since they have resistance called ESR in themselves.

What is peak voltage used for?

It is important to note that there is a distinction between peak voltage and peak to peak voltage

Is RMS AC or DC?

“RMS” stands for Root Mean Square, and is a way of expressing an AC quantity of voltage or current in terms functionally equivalent to DC. For example, 10 volts AC RMS is the amount of voltage that would produce the same amount of heat dissipation across a resistor of given value as a 10 volt DC power supply.

How do you find the peak voltage of an AC circuit?

2. The voltage in the European wall socket oscillates between the positive and negative peak voltages, resulting in an rms voltage of 240 V. Multiply the rms voltage by the square root of two to calculate the peak voltage.

What is the maximum DC voltage?

The maximum voltage in DC circuit is 282 V.

How do you reduce peak to peak voltage?

It can be seen that the peak-to-peak value of the output voltage ripple and noise is about 445.9mV when there is no external capacitor. In order to suppress the output voltage ripple and noise, the most common and simple way is add the capacitor.

Is peak-to-peak the same as RMS?

DPeak refers to the maximum value that the current or voltage reaches in an alternating current. RMS gives an average value for current or voltage. When a voltage value for an AC current is quoted, it is usually the RMS value that is quoted.

What is VPP signal?

A special high-voltage supply that supplies the potential and energy for altering the state of certain nonvolatile memory arrays. On some devices, the presence of VPP also acts as a program enable signal (P).

What is measured from peak to peak?

Peak-to-peak is the amplitude of a waveform that is measured from the crest (top of the waveform) to the trough (bottom of the waveform). Peak-to-peak values are normally used to measure current, power and voltage. The pk-pk amplitude of a signal is sometimes confused with peak amplitude.

How do you convert rms to peak to peak?

To compute the RMS voltage from the peak voltage, the peak voltage is multiplied by 0.7071. To compute the RMS voltage from the peak-to-peak voltage, the peak-to-peak voltage is multiplied by 0.35355.

Is 240V RMS or peak?

The RMS voltage is 240 volts, so the peak value Vm= V. √2 = 340 volts.

Why is RMS value needed?

Significance of RMS value ► RMS value of an AC voltage/current is equivalent to the DC voltage/current that produces the same heating effect when applied across an identical resistor. Hence, it is also a measure of energy content in a given signal.

What is peak-to-peak voltage in oscilloscope?

To determine peak voltage from an oscilloscope trace, the maximum vertical deviation of the trace from the centre line is measured from the screen. This number of divisions is multiplied by the Y gain from the oscilloscope controls.

What is peak-to-peak voltage formula?

Peak-to-peak value is equal to two times the square root of two times VRMS, or roughly 2.8284 times VRMS. RMS is most used in AC electrical work. To illustrate the difference between peak, peak-to-peak and RMS voltage we can use standard North American residential power.

What is peak voltage and RMS voltage?

In terms of voltage, the root mean square voltage is called the effective voltage, as opposed to the peak voltage which corresponds to the maximum AMPLITUDE of the voltage variations. RMS power (in watts) is similarly called the effective power, since for an AMPLIFIER, for instance, it represents its real POWER.

How do you measure peak voltage with a multimeter?

The position on the multimeter is volts DC will and I'll turn the ignition switch to the on position

Can peak to peak voltage be negative?

Peak-to-peak voltage is a parameter measured between the maximum signal amplitude value and its minimum value (which can be negative, as in this case) over a single period (Fig.

Is 480v RMS or peak?

No 220/240. 480 volts is the amout of pressure that the circuit is involved with pushing the current. 480 volts AC is actually 240 + peak volts and 240 - peak volts . 480 volts AC is 480 volts peak to peak.

6 What is peak to peak voltage Images

Peak peaktopeak and RMS voltages

Electronic Peak to Peak vs Amplitude iTecTec

Solved Above If We Look At The Peak To Peak Voltage Of T Cheggcom

Peak voltage as a function of difference between the final and initial

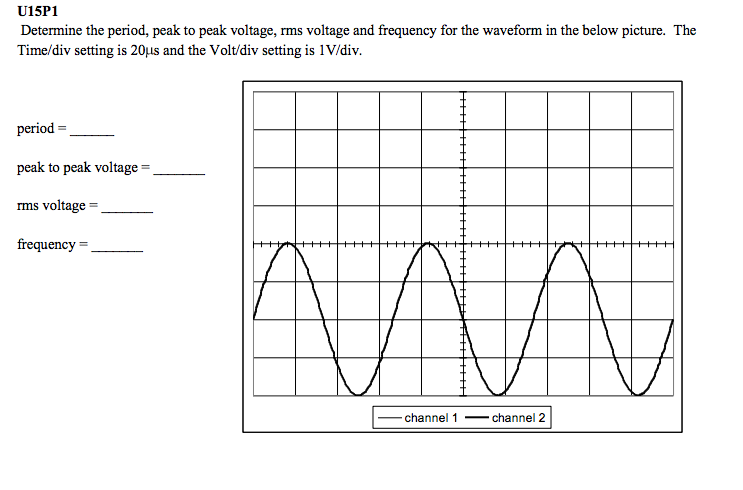

Solved Determine The Period Peak To Peak Voltage Rms Vo Cheggcom
