What Is Optocoupler - Is Optocoupler Same As Relay?

What is optocoupler

Optocouplers are cheaper than a relay, longer lasting than a relay, use a lot less power than a relay, and handle less power than a relay. So for input it makes no sense to use a relay because the inputs don't use significant power. For output it might, since the relay can switch high power devices.

Which device is used in optocoupler?

An optoisolator (also known as an optical coupler, photocoupler, optocoupler) is a semiconductor device that transfers an electrical signal between isolated circuits using light.

What are the 4 types of optocoupler?

Depending on the use there are mainly four types of optocouplers are available.

• Opto-coupler which use Photo Transistor.
• Opto-coupler which use Photo Darlington Transistor.
• Opto-coupler which use Photo TRIAC.
• Opto-coupler which use Photo SCR.

What is the input voltage of optocoupler?

Optocoupler circuit accept input between 3-50 volt.

Is optocoupler a relay?

An optocoupler is used as input interface. It is a function of insulation and adaptation. A relay is used as output interface. It is voltage adaptation and it allows more power.

How do I know if optocoupler is working?

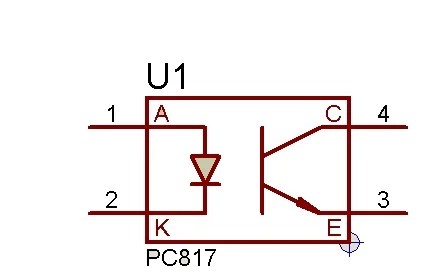

Using the diagram in the right identify the pins; first the anode and cathode of the LED ( in this case pins 1 and 2 ), and then using an ohmmeter set on the 'X1 Ohm' domain, measure between pins 1 and 2, and you should get one reading measuring one way and no reading the opposite way (just like you check a diode).

What are the features of optocoupler?

Optocouplers can be used for a number of different uses and applications, including:

• Input and output switching, especially in electronically noisy environments.
• Switch-mode power supplies.
• Signal isolation.
• Power control.
• PC / modem communications.
• Controlling transistors and triacs.

Do optocouplers need resistors?

On the input side of the optocoupler, a series resistor, Ri, is required to be connected to the anode to limit the current that flows across the diode. Due to aging, the current transfer ratio (CTR) of optocouplers degrades.

How much current can an optocoupler take?

The voltage and current supplied by this optocoupler makes it ideally suited for directly driving IGBTs with ratings up to 1200 V/100 A.

How do I use optocoupler for isolation?

An optocoupler achieves this isolation by taking signals that it receives at its input and transferring the signals using light to its output. The optocoupler translates the signal on its input into an infrared light beam using an infrared light emitting diode (LED).

Why optocoupler is called as isolator?

Optocouplers, also called opto-isolators, are semiconductor devices that isolate unwanted signals by physically separating high-voltage circuit systems from neighboring low-voltage systems.

What is optocoupler and its advantages?

Advantages of Optocoupler: Less noise. The optocoupler works well on either AC or DC high-voltage signals. It is also used in a number of sensor applications to sense the presence of physical objects. The lifetime of optocouplers can exceed several decades. It offers a very good response at lower frequencies.

Is optocoupler an IC?

An optocoupler IC integrates optical elements that act like a simple switch. They are easy to bring into different circuits and nicely provide isolation between circuit blocks running at different voltages.

Is optocoupler active or passive?

The organic optocouplers (also called “organic optical isolators”) are polymer-based electronic passive optical components able to combine or split transmission data (optical power) from polymeric optical fibers.

How do you use an optocoupler in a circuit?

How to Use an Optocoupler to Pass Signals Between Controllers at Different Voltages

1. Step 1: Gather Materials. For this project, you will need:
2. Step 2: Understand 4N25 Pinout.
3. Step 3: Choose an Appropriate Resistor.
4. Step 4: Build the Circuit.
5. Step 5: Test Your Circuit.

Why optocoupler is used in relay?

An optocoupler is used as input interface. It is a function of insulation and adaptation. A relay is used as output interface. It is voltage adaptation and it allows more power.

Can optocoupler fail?

The results show that optocouplers have two failure modes, one is sudden failure and the other is degradation failure; the maximum temperature stress of optocoupler can't exceed 140 °C; the increase of leakage current of optocoupler is caused by movable ions contaminating the LED chip.

Why do we use optocoupler?

Optocouplers manage to send signals between circuits with separate grounds, providing an isolated galvanic barrier between them. Therefore, an optocoupler is a solution for circuits that need to be isolated from each other for safety or regularity reasons and need to have interaction in between.

Is an optocoupler a switch?

In Optocoupler circuit, the forward and the collector current are link to each other with the current transfer ratio or simply CTR. To set optocoupler operation as switch; it must be driven into saturation. To saturate, the forward current must be big enough compared to the collector current.

How do you use an optocoupler in a circuit?

How to Use an Optocoupler to Pass Signals Between Controllers at Different Voltages

1. Step 1: Gather Materials. For this project, you will need:
2. Step 2: Understand 4N25 Pinout.
3. Step 3: Choose an Appropriate Resistor.
4. Step 4: Build the Circuit.
5. Step 5: Test Your Circuit.
