What Is The Function Of An Air Gauge - What Are The Four 4 Types Of Pressure Gauge?

Mei 07, 2023 Posting Komentar

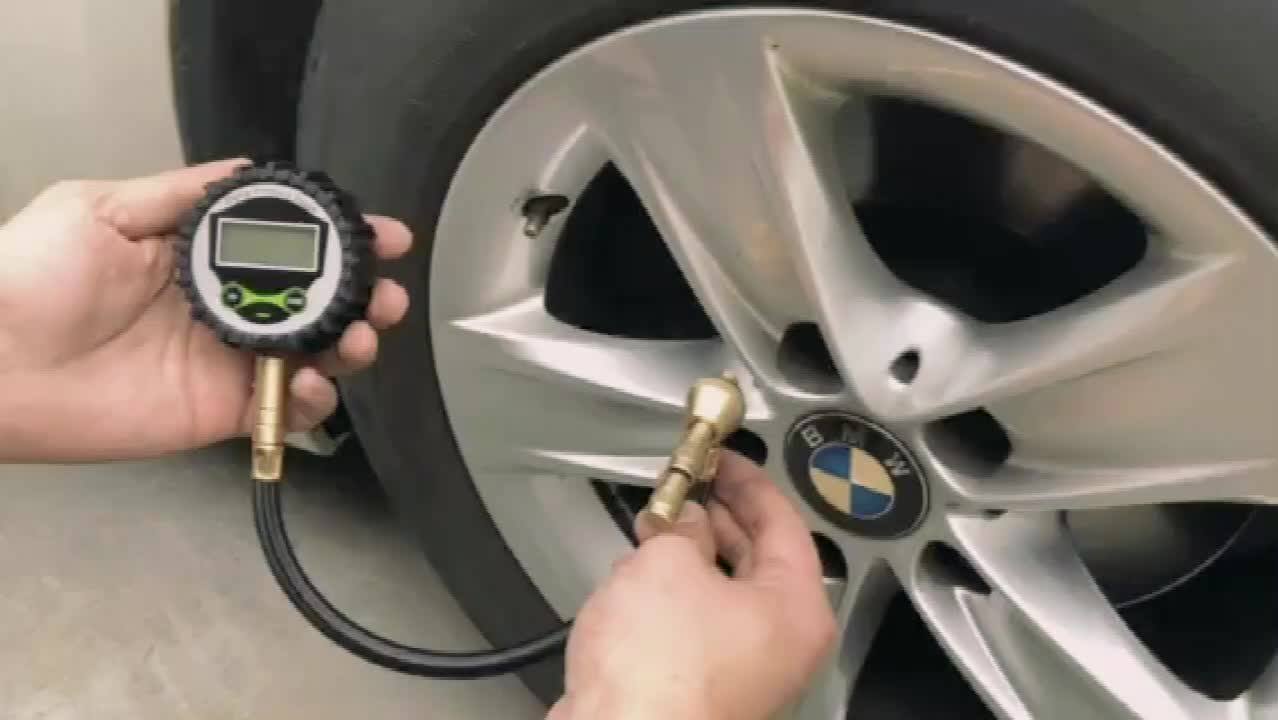

What is the function of an air gauge

Types of Pressure Gauges

Bourdon Tube Pressure Gauge.
Diaphragm Pressure Gauge.
Capsule Pressure Gauge.
Absolute Pressure Gauge.
Differential Pressure Gauge.
Bellows Pressure Gauge.
Manometer Pressure Gauge.
Piezometer Pressure Gauge.

What is the name of pressure?

Pressure
Common symbols	p, P
SI unit	pascal [Pa]
In SI base units	1 N/m², 1 kg/(m·s²), or 1 J/m³
Derivations from other quantities	p = F / A

How do you calculate gauges?

Gauge is (100) x (mils), so for example 0.3 mils = 30 gauge. To go from mils to microns, you multiply mils x 25.4. SolveTech makes thickness gauging technology for measuring plastic film.

What unit is gas measured in?

BTUs or Therms are also the gas measurement unit for energy. The gas measurement unit for gas pressure is calculated in kilopascals (kPa), Bar or pounds per square inch (psi) gas units.

How do you calibrate an air gauge?

If the gauge region was low turned the cap screw counterclockwise. Using the hex wrench if the

Do pressure gauges measure static pressure?

When measured relative to the atmospheric pressure, the static pressure is the same as the gauge pressure. However, it is possible to measure the static pressure with a vacuum as the reference, so that the value measured equals the absolute pressure.

What unit is gauge?

"Gauge" is used as a unit of measure equal to a hundredth of a mil. For example, "70 gauge" refers to 70 hundredths of a mil, or . 70 mil thickness.

How do you test a pressure gauge?

Connect the working gauge to the reference gauge i.e.; the calibrator or master gauge. Run the system and measure the readings on both the gauges. Compare both the readings. If the readings are the same, the gauges can be concluded verified.

How does a pressure gauge work and display data?

Sometimes referred to as dial gauges, analog pressure gauges have a needle that directly responds to changes by pointing to numbers on a scale corresponding to the pressure sensed by the measuring element. Movement of the needle translates to variations in temperature or flow, which are easily noticed and monitored.

Is pressure gauge a sensor?

A gauge pressure sensor measures the pressure at its port with respect to the local atmospheric pressure. This can be compared to using a multimeter's DC measurement range, where the display shows the voltage at the positive probe with respect to the negative probe.

What is the name of gauge?

the name gauge means measurer.

Which instrument is used to measure the pressure of gas?

Barometer is used to measure atmospheric pressure of mixture of gases. Staglometer is used to measure surface tension. Only manometer is used to measure pressure of pure gas in a vessel.

What is gauge example?

An example of gauge is a head count of people at a rally to determine how many supporters the politican has. An example of a gauge is a unit on your gas tank that lets you know how much gas is left. (nautical) The position of a vessel in relation to another vessel and the wind.

What is difference between gage and gauge?

According to the Merriam-Webster dictionary: ”the word gage is a variant spelling of gauge, which in the noun form refers broadly to measurement (“fine-gauge wire”) or a standard by which something is measured (“polls are a good gauge of how voters might vote”).” The Merriam-Webster adds: “Gauge is by far the preferred

What are the three types of pressure?

Pressure is classified into three types, they are:

Absolute pressure.
Gauge pressure.
Differential pressure.
Sealed pressure or vacuum pressure.

Why is it called gauge pressure?

The term gauge pressure is used when the pressure in the system is greater than the local atmospheric pressure. The gauge pressure scale was developed because almost all pressure gauges read zero when open to the atmosphere.

What are the two instruments used to measure pressure?

One common one is the barometer. Another type of pressure gauge is the Bourdon tube. It is used to measure the pressure of gases or liquids in a sealed container.

Which instrument is used to measure the pressure of a liquid?

An instrument used to measure the pressure of a liquid is known as a pressure gauge. The simplest form of the pressure gauge is a manometer, which measures the pressure difference.

Is gauge pressure negative?

Gauge pressure is the amount of pressure expressed in terms of atmospheric pressure. It is referred to as "positive pressure" when it is greater than one atmosphere, and "negative pressure" when it is less than one atmosphere.

Why do we need gauge pressure?

In vacuum applications, gauge pressure measurement and control can be used to accurately ventilate a vacuum chamber to atmospheric pressure and prevent particulate contamination when opening to the atmosphere. Such practice is also used in semiconductor load lock applications.
