Water Solenoid Valve With Timer - How Long Can A Solenoid Be Energized?

Water solenoid valve with timer

The continuous duty cycle (100% rating) means that the solenoid can be left energised for an indefinite period of time at its rated voltage without overheating.

How do you size a solenoid valve?

Sizing. Choose solenoid valve based on system capacity with a minimum of 1 psi pressure drop. Then choose from available connection sizes. If the desired connection sizes are unavailable, bushings and couplings can be used to adapt to the existing line size, which will NOT affect valve performance.

How do I know if my solenoid is energized?

The testing of on/off solenoids is straightforward. Pressure should be applied to the inlet, and if it is normally closed, you should not see pressure at the outlet. Once energized, you should see pressure at the outlet. For a normally open solenoid, the opposite is true.

Why should the solenoid require time to retract?

From an electrical standpoint, the response of a solenoid valve is not instantaneous, since a certain amount of time must pass for the coil current to overcome the coil inductance. As a result, the magnetic flux takes a certain amount of time to reach its maximum after voltage is applied to the solenoid.

Do solenoid valves get hot?

A solenoid typically has a temperature rise (internally) of between 65° C (approx. 150° F) to 105° C (approx. 212° F). If there is a problem within the valve (such as a jammed piston), the coil would burn out and heat would no longer be generated.

How can you tell if a solenoid valve is bad?

Sometimes you find a normal read on the digital multimeter but the coil is actually not functioning. At this time, you can use a screwdriver and put it near the armature then energize the solenoids. If there is a magnet in the presence, the coil is good. Otherwise, it is bad, and you need to change a new one.

How do you test a water solenoid valve?

The two metal probes together will zero out to test your Bell touch one probe to each terminal

How do you operate a solenoid valve?

First. So inside the valve we have the armature. The solenoid is placed over this and completely

What are the disadvantages of solenoid valves?

What are the Disadvantages of Solenoid Valves

• Sensitive to voltage.
• The valve can partly close if the magnetic field isn't set up correctly.
• The coil may need to be replaced over the lifetime of the valve.
• Control signal must stay on during operation.

What is the difference between a valve and a solenoid?

Electric valves are driven through motors and depend on analog adjustments. The on-off action in these valves can take some time for completion. Solenoid coils on the other hand have a shorter operation time driven only through coils. Electric valves are used to both regulate and switch systems such as fan coil ends.

How do you reset a solenoid valve?

Manual Reset Solenoid Valves This is what is known as Manual Reset. To cause the valve to change from its rest state, the coil must be energised and the lever or knob pulled to the fully open position. If the valve is energised without the manual intervention, it will not open.

Can you burn up a solenoid?

In rare cases, a solenoid coil will burn out due to OVERVOLTAGE. The plunger WILL close, because the solenoid has extra force. (You'll find no melted bobbin.) The high voltage causes excessive holding current which will overheat the coil and burn it out.

What does a solenoid look like?

But this is exactly how the ones work that are mounted at the top of the starter. Let's have a look.

How does a water solenoid valve work?

Solenoid valves consist of a coil, plunger and sleeve assembly. In normally closed valves, a plunger return spring holds the plunger against the orifice and prevents flow. Once the solenoid coil is energized, the resultant magnetic field raises the plunger, enabling flow.

Which is the best solenoid valve?

Festo: Festo manufactures great quality Pneumatic Solenoid Valves. Norgen: These valves are well known for their Compact & Robust Design. Phoenix: These are the best valves in terms of a fast response. SMC: SMC manufactures the best quality valves.

Can solenoids be repaired?

A failed solenoid may be debilitating for your machinery or manufacturing process but, thankfully, it's a part that you can often easily repair or replace once you've identified the root of the problem.

Do solenoids wear out?

Wear and tear—like any mechanical device or component, solenoids can simply wear out over time, although preventative maintenance can offset or reduce wear and extend the service life of your solenoids.

What causes a solenoid to burn out?

Abnormally high or abnormally low ambient temperatures to which a solenoid is exposed for an extended time may cause a solenoid to burn out. High Temperature. Coil insulation may be damaged and one layer of wire may short to the next layer.

When would you use a solenoid valve?

Solenoid valves are used wherever fluid flow has to be controlled automatically. They are being used to an increasing degree in the most varied types of plants and equipment. The variety of different designs which are available enables a valve to be selected to specifically suit the application in question.

Are solenoids AC or DC?

Solenoids are electromechanical devices that convert AC or DC electrical energy into linear motion. They usually consist of a helical coil wound concentrically around a movable cylinder, called the armature, made from a ferromagnetic material such as iron or steel.

9 Water solenoid valve with timer Images

Wholesale Timer Operated Solenoid Valve Water Valve Manufacturers

23 way Electric water solenoid valve with thermostat control

Water Air Solenoid ValveSteam Solenoid ValveChina Water Air Solenoid

Pu220 Ac220v 2 Way Water Timer Solenoid Valve Buy Solenoid Valve

2 Inch Solenoid Valve Solar Water Timer Drip Irrigation System Solar

Solar RainStop Electronic garden water timer adopt solenoid valve 2

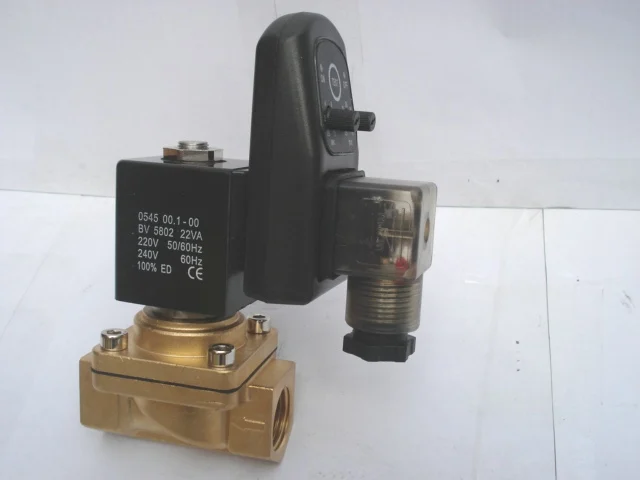

12 PU220 Series Air Water Gas Oil Solenoid Valve with timerin

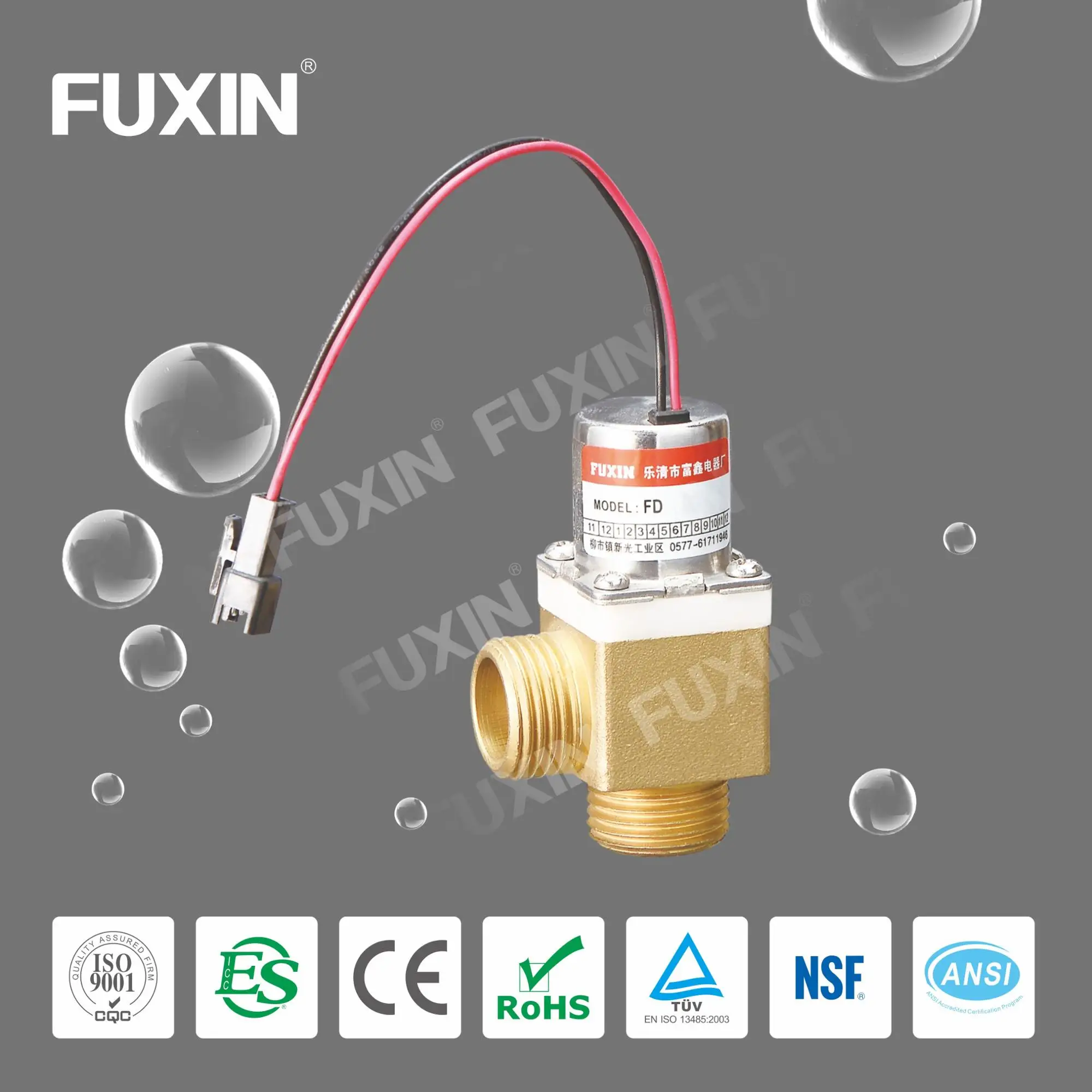

Fuxin Water Solenoid Valve Timer Available For Wifi Control And
