Types Of Inverters - What Is Inverters Used For?

Types of inverters

Inverters are also called AC Drives, or VFD (variable frequency drive). They are electronic devices that can turn DC (Direct Current) to AC (Alternating Current). It is also responsible for controlling speed and torque for electric motors.

What are the different types of inverters in power electronics?

According to the output characteristic of an inverter, there can be three different types of inverters.

• Square Wave Inverter.
• Sine Wave Inverter.
• Modified Sine Wave Inverter.

How does an IGBT inverter work?

The IGBT act as a switch (when a signal is applied to the gate, they turn on and then turn off when the signal is removed). By closing Q1 and Q4, a positive d.c. supply is applied to the load. Q2 and Q3 will result in a negative d.c. supply across the load.

What is a basic inverter?

A basic three-phase inverter consists of three single-phase inverter switches each connected to one of the three load terminals. For the most basic control scheme, the operation of the three switches is coordinated so that one switch operates at each 60 degree point of the fundamental output waveform.

What is the capacity of inverter?

The capacity of the inverter here means that the maximum power limit demand to which it can operate and provide electricity. Ideally, inverters between 756-1000 W are best suited for homes. There are several other types of inverters based on capacity as well. You need to choose the best for your requirements.

Can inverter work without battery?

A hybrid solar inverter can work without batteries. This type of system is attached to solar panels and to the power grid which supplies power from both.

Can we run AC on inverter?

Yes, you heard that right. You can use the iCruze high capacity inverter to run an entire 3BHK or bigger home and even at your commercial set ups. It can take up the loads of AC, microwave, washing machine, refrigerator, steam iron etc.

What size of inverter do I need to run a TV?

In general, a 200W inverter is enough to run any LCD, LED, or OLED TV, as these TVs are power-efficient and will generally use less than 150 Watts of power. However, any plasma TV that's over 40in, will probably require an inverter that's rated at 300 to 400 Watts.

Why is inverter rated in KVA?

why inverter rating in KVA? All the Switching Devices are rated for a certain Voltage and Current, so the real rating would always be in kVA ( Derived by by multiplying the two ).

Can I use an inverter without solar panels?

Can use solar inverter without solar panel? A solar inverter cannot power any appliance on its own. You have to connect it to a power source such as a solar panel, solar generator or an electricity line. The main purpose of an inverter is to convert a Direct current (DC) into Alternating current (AC).

Is it OK to leave inverter on all the time?

Should the inverter be on all the time? Yes, you should keep your inverter ON all the time. Otherwise, you will lose your battery backup time due to the self-discharge of batteries. You will need to start the inverter manually every time when grid power failed.

What is PWM inverter?

An inverter whose functionality depends upon the pulse width modulation technology is referred to as PWM inverters. These are capable of maintaining the output voltages as the rated voltages depending on the country irrespective of the type of load connected.

What are the 3 types of inverters?

There are 3 major types of inverters - sine wave (sometimes referred to as a "true" or "pure" sine wave), modified sine wave (actually a modified square wave), and square wave.

What is inverter and its types?

Inverters are classified into two main categories − Voltage Source Inverter VSI − The voltage source inverter has stiff DC source voltage that is the DC voltage has limited or zero impedance at the inverter input terminals.

Which inverter is used in solar?

A solar inverter or PV inverter, is a type of power inverter which converts the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network.

What is a 3 phase inverter?

A 3 phase inverter is used to convert a DC i/p into an AC output. It includes three arms which are usually delayed through 120° of an angle to produce a 3 phase AC supply. The switches in an inverter have a 50% of ratio & switching happens after each T/6 of the time with 60° of angle interval.

Why would I need a 3 phase inverter?

The main reason why you should consider a three-phase inverter is to significantly reduce or limit your chances of having any issues with voltage and voltage rising.

What are hybrid inverters?

A hybrid solar inverter is the combination of a solar inverter and a battery inverter into a single piece of equipment that can intelligently manage power from your solar panels, solar batteries, and the utility grid at the same time.

What are the four types of power inverters?

Know 5 Types of Inverters to Choose From

• What is the basic working of an inverter? An inverter is an electrical power converter that converts direct current (DC) into alternating current (AC).
• High Capacity Inverters.
• Connected Inverters.
• Standard Inverters.
• Premium Inverter.

How many kW is a kVA?

It is equal to 1,000 Joules per second and it measures how fast the energy is transferred. That means that in DC circuits, 1 kVA is equal to 1 kW. That means that 1 kVA is equal to 1,000 watts.

9 Types of inverters Images

Types of Inverters Their Applications Guide 2021 Watt Insider

What is Inverter And Classification of Inverter Electrical

Power Inverter Types mrpositiveconz

Types of Inverter Solar Energy Hub

ABB Solar Inverters Types Warranty Green World Investor

ABB Solar Inverters Types Warranty Green World Investor

Types of Solar Panel Inverters Top 3 CostSaving Applications 2022

Kindly Help Explain Differences Between Inverter Types Technology

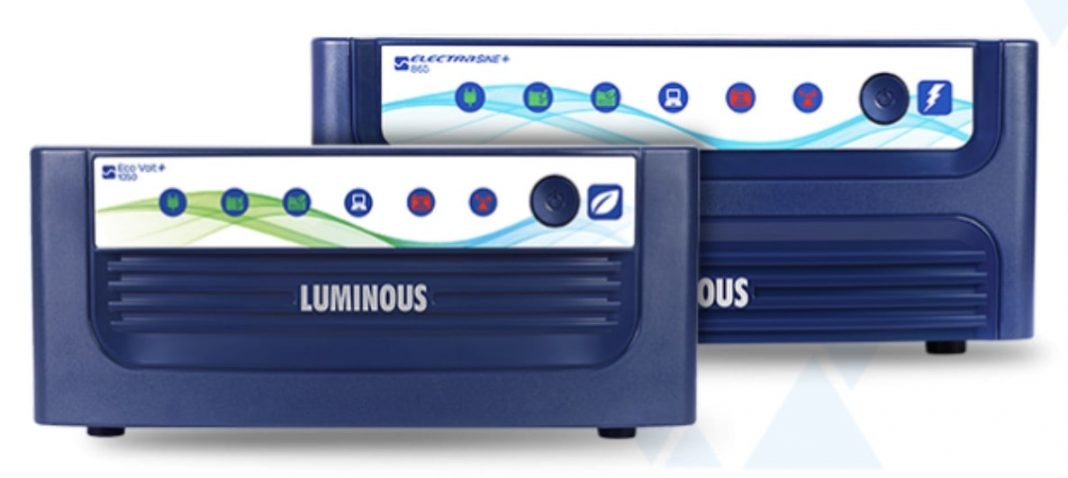

Types of Inverters How to Choose the Best One techinfoBiT
