Square wave to triangular wave

anyway to remove the spike/noise ? Use a zener diode and a resistor in a series combination and then in parallel with a small capacitor to absorb the spikes. The diode should turn on fast and the capacitor should have low lead inductance.

What is the formula for RMS current?

Sr. No.	Nature of AC Waveform	Formula for RMS Value
1)	Sinusoidal AC Current or Voltage having peak value I_m or V_m	I_m / √2 or V_m/√2
2)	Any function f(x)
3)	Complex Wave	Square root of rms value of individual components
4)	Symmetrical Square Wave with amplitude 'a' and time period T.	'a' (equal to Amplitude )

How do you turn a square wave into a sine wave?

The simplest method of converting a square wave to a sine wave is by filtering. Basically, a square wave consists of a fundamental frequency with a lot of higher harmonics. If the harmonics can be removed, then a sine wave of the fundamental frequency remains.

Are square wave inverters good?

Square wave inverters are less reliable and also unsafe to use for appliances. Sine inverters are highly safe to use. Square wave inverters produce a very loud noise when used. Sine wave inverters produce normal sound only.

How can you obtain triangular wave using Schmitt trigger?

When the output of Schmitt trigger is low, the integrator develops a rising ramp which increases till it reaches UTP, as illustrated in figure. At this point the output of the Schmitt Trigger switches to the high state and forces the triangular-wave to reverse in direction.

Is a square wave AC or DC?

The most familiar AC waveform is the sine wave, which derives its name from the fact that the current or voltage varies with the sine of the elapsed time. Other common AC waveforms are the square wave, the ramp, the sawtooth wave, and the triangular wave. Their general shapes are shown below.

How do you make a triangular wave generator?

Step 1 : Finding values of R2 and R3. VO(P−P)=2R2R3×VSAT. 6=2R2R3×VSAT. Let VSAT = 13V and R2 = 10KΩ 6=2×10KR3×13.
Step 2 : Finding values of R1 and C1. Frequency formula is given by, f=R34R1C1R2. Given f = 5KHz 5K=43.33KΩ4R1C1×10KΩ
Step 3 : Designed circuit diagram. ADD COMMENT SHARE EDIT. Dashboard.

Which circuit converts triangular wave into sine wave?

Using an RC network, we can reshape a triangle wave into a sine wave. A circuit like this can be very important because triangle waves, though not as common as square waves, are a standard waveform used in electronics. They are present on most function generators available.

Why do we calculate RMS value?

Significance of RMS value ► RMS value of an AC voltage/current is equivalent to the DC voltage/current that produces the same heating effect when applied across an identical resistor. Hence, it is also a measure of energy content in a given signal.

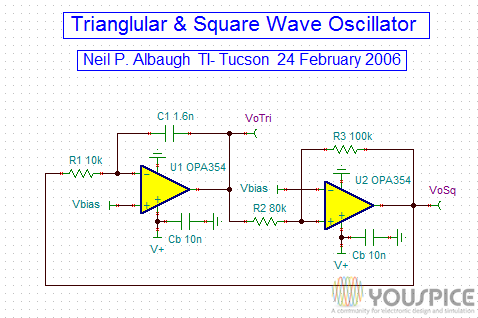

How you can generate triangular wave using op-amp?

A Triangular Wave Generator Using Op amp can be formed by simply connecting an integrator to the square wave generator. Triangular wave is generated by alternatively charging and discharging a capacitor with a constant current.

Why function generator is called generator?

The name of the function generator arises from the fact that it is able to generate a number of different functions or waveforms.

What are disadvantages of square wave inverter?

The disadvantage is that due to the square wave voltage contains a large number of high harmonics, with iron core inductance or transformer load with electrical equipment will produce additional loss, and can interfere some communication equipment.

What is the equation of a square wave?

Here, T is the period of the square wave and f is its frequency, which are related by the equation f = 1/T.

What is the integral of a square wave?

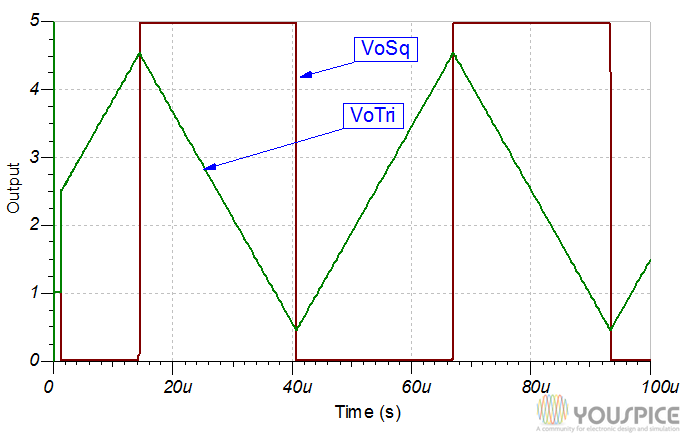

Integration of a Square Wave The integrator has converted the square wave input to a triangular wave at the output, the slope of this wave describes the increase in area beneath the square wave (moving from left to right).

What does a low pass filter do to a square wave?

The Integrator is basically a low pass filter circuit operating in the time domain that converts a square wave “step” response input signal into a triangular shaped waveform output as the capacitor charges and discharges. A Triangular waveform consists of alternate but equal, positive and negative ramps.

What is formula for triangular wave?

A bandlimited triangle wave pictured in the time domain (top) and frequency domain (bottom). The fundamental is at 220 Hz (A3). General information. General definition. x ( t ) = 4 | t − ⌊ t + 3 / 4 ⌋ + 1 / 4 | − 1 {\displaystyle x(t)=4\left\vert t-\left\lfloor t+3/4\right\rfloor +1/4\right\vert -1}

Which block in function generator converts triangular wave to rectangular wave?

Logic gate.
Flip flop.

What is triangular wave generator?

A triangular wave generator is an electronic circuit, which generates a triangular wave. The block diagram of a triangular wave generator is shown in the following figure − The block diagram of a triangular wave generator contains mainly two blocks: a square wave generator and an integrator.

How a triangular wave generator is derived from square wave generator?

How a triangular wave generator is derived from square wave generator? Explanation: The output waveform of the integrator is triangular, if its input is square wave. Therefore, a triangular wave generator can be obtained by connecting an integrator at the output of the square wave generator.
