Multimeter With Continuity Beep - Do All Multimeters Have Sound?

Multimeter with continuity beep

Most multimeters have a continuity mode or function that is selected by the function dial. When place in that mode it enables a beeper that sounds when there is a zero to small amount of resistance between the probes. An no sound if there is a high or infinite resistance between the probes.

What is a good reading for continuity?

Know that a reading of 0 indicates perfect continuity. If your multimeter reads 0 ohms, it means that there is perfect continuity in the wire, fuse, battery, or device. Most multimeters will beep continuously when testing a connection with good or perfect continuity. A constant 0 indicates a perfect connection.

How do you check electrical continuity?

I will turn on my multimeter to the desired test function and check to see if it is in working

Do you test continuity with power on or off?

The power needs to be off when testing continuity. Verify that no electricity is flowing by using a noncontact circuit tester. Check the tester by putting the leads together and ensuring that the device lights up, beeps or registers 0 ohms of resistance.

Is 2 ohms good continuity?

For almost every common household purpose, any reading less than 1.0 ohms is sufficiently low to be considered excellent conductivity.

What does OL mean on a multimeter?

This is a common misunderstanding but OL means open line. It means that what is being measured is not making it's way from black probe to red probe. You will always see this in diode mode, ohm mode and continuity mode when the probes are not touching each other / not connected.

Does an open circuit have continuity?

An OPEN circuit is one that cannot operate because there is a break in the path through which the power might flow. An open circuit will show no continuity or infinite resistance. A closed circuit should show continuity and have some or no resistance.

How many ohms is considered an open circuit?

How many ohms are considered an open circuit? The proper definition of an open circuit is an infinite resistance or zero conductance.

What happens if you check continuity with power on?

To measure continuity, the multimeter sends a small test voltage through the wire. The multimeter reads the value of the test voltage to determine if there is continuity. If the power is on, the multimeter cannot accurately read the test voltage.

Can you check continuity through a resistor?

For example the resistance of a wire or a certain component such as this resistor you can simply

Does continuity mean zero resistance?

To say there is continuity is to say that there is an electrical path between two points. To say there is no continuity means there is no electrical path. In other words, continuity means low or zero ohms and no continuity means very high or infinite (meter reading OL) ohms.

How does multimeter continuity test work?

During a continuity test, a digital multimeter sends a small current through the circuit to measure resistance in the circuit. A meter with a continuity beeper briefly sounds off when it detects a closed circuit.

What does a reading of 0 ohms mean?

Resistance, symbolized by the (Ω) symbol and measured in Ohms, is a measurement of how well a current can travel through a circuit or a given path. A circuit with no resistance (0) would indicate a complete circuit, or one that has no short.

Does Ol mean short circuit?

If your multimeter shows infinite ohms or OL, then that means the breaker could have deteriorated and tripped from a lower current flow. In this case, you need to access the main panel and replace it. If the multimeter shows continuity, there is a short circuit.

Can you check continuity on a live wire?

Using a multimeter if one of your appliances. Isn't working maybe breaking the wires may be to blame

What is the difference between an ohm test and continuity test?

An ohmmeter is used to measure the resistance to electrical flow between two points. The ohmmeter is most commonly used to check continuity. Continuity is not a “measurement” as much as it is a yes/no statement. To say there is continuity is to say that there is a good electrical path between two points.

How do you check continuity on a long wire without a multimeter?

Go to the end of the wire that isn't grounded and check for continuity to ground. Now that the other end of the wire is grounded you should read a continuity to ground. If you've got someone helping you it's a good idea to have them ground and un-ground the wire a few times just to ensure the readings are correct.

How do you check if current is flowing?

The most common way to measure current in a circuit is to break the circuit open and insert an “ammeter” in series (in-line) with the circuit so that all electrons flowing through the circuit also have to go through the meter.

Is continuity the same as resistance?

Think of it this way: Continuity is a binary version of resistance. If the resistance of the thing we're testing—the wire we want to make sure isn't broken, the connection we want to be certain actually goes to ground, the switch we want to know works—is low (like less than 1 ohm), we say that it has continuity.

How do you know if you have continuity on a multimeter?

And when you see either 0 or a number close to 0 that means that there is continuity. So right now

12 Multimeter with continuity beep Images

What is Continuity in Electricity How to Test Continuity with Multimeter

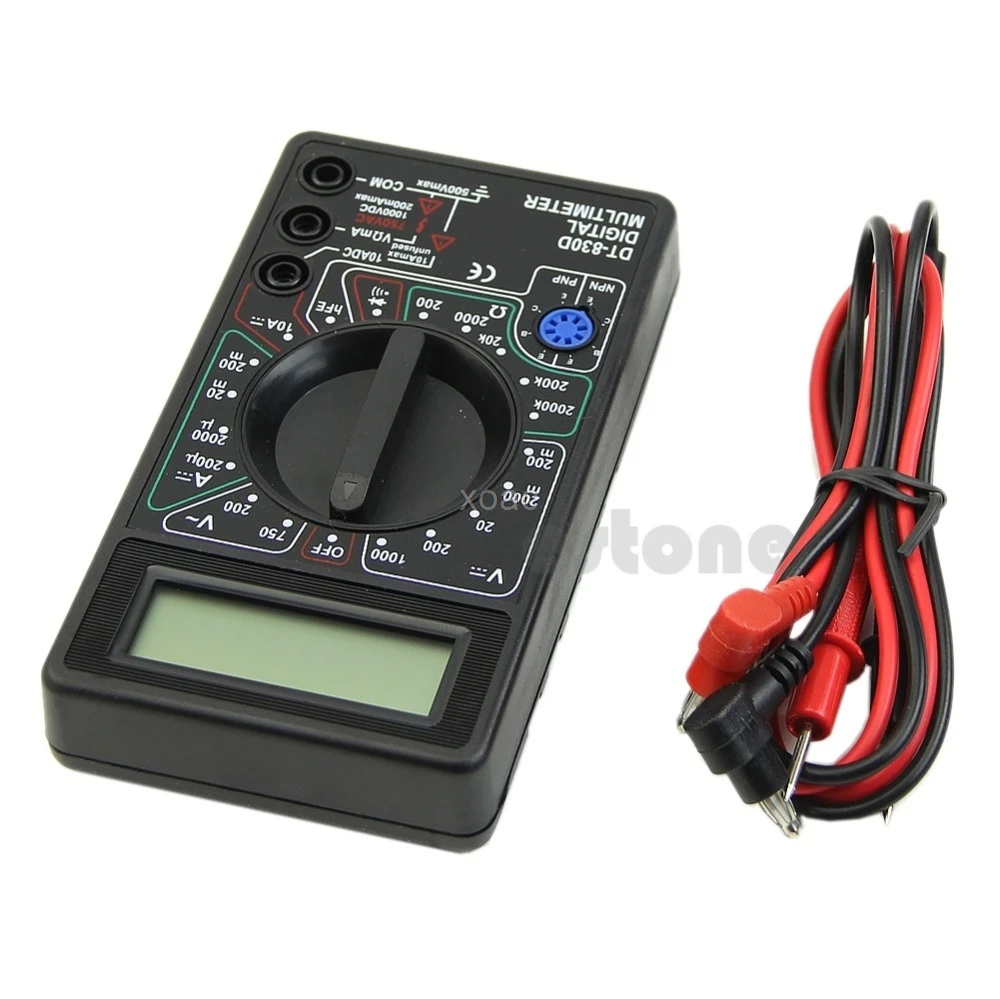

Digital Multimeter with Buzzer Voltage Ampere Meter Test Probe DC AC
