And fortunately using this is very simple you just plug the cable into both ends and it will

What is it called when two conductors in a pair is broken in two?

A split pair error occurs when one wire from each of two different pairs gets swapped identically on both ends of the cable.

What is a Fluke Networks Pro3000 probe used for?

Models: Fluke Networks Pro3000™ Probe The Pro3000™ unfiltered probe, for use on inactive networks, features a loud speaker to hear tone clearly through walls, enclosures and in loud environments. The recessed on/off button helps prevent the probe from accidently being turned on when stored.

How do you use Fluke t6 1000?

Turn the knob on the t6 1000 pro to field sets and attach the alligator clip to electrical. Ground

How do you use a fluke MicroMapper?

Plug. One into the cable into the unit and the other end into the remote.

What is the purpose of wire map tester?

A wire mapping tester transmits signals through each wire in a copper twisted-pair cable to determine if it is connected to the correct pin at each end. The wire mapping tester can detect all problems that render a cable run inoperable.

How does a Cat 6 tester work?

Cat 5e /6 testers measure crosstalk from one pair to all three other pairs for each pair and compare it to the 568 specs, giving a pass/fail result. Some also calculate "ACR" or attenuation/crosstalk ratio, as it is a measure of how big the crosstalk signal is to the attenuated signal at the receiver.

How do you use a fluke tone generator?

Using the pro 3000 probe at the opposite end of the cable. Listen to the distinct tone to confirm

How do you use a Fluke 23 III Multimeter?

Turn the rotary switch from the off position select AC volts if a circuit with alternating current

What does wiremap mean?

Wiremapping is a simple test that confirms that each wire is terminated correctly, with no opens or shorts. UTP intended only for POTS (plain old telephone service) voice applications actually only needs to be tested for wiremap.

What causes near end crosstalk?

Near-end crosstalk occurs when a signal on one pair of wires is picked up by an adjacent pair of wires. It is the portion of the transmitted signal that's electromagnetically coupled back into the received signal causing interference.

How do you check a fluke with a multimeter?

How to measure ac voltage

1. Turn the dial to ṽ. Some digital multimeters (DMMs) also include m ṽ .
2. First insert the black lead into the COM jack.
3. Next insert the red lead into the VΩ jack.
4. Connect the test leads to the circuit: black lead first, red second.
5. Read the measurement in the display.

10 Micromapper Images

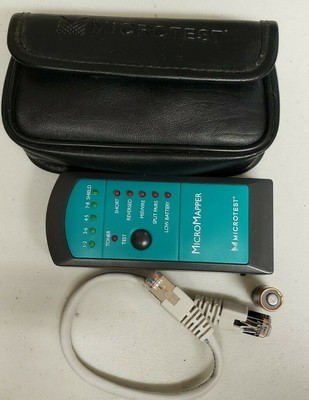

MicroMapper for testing of twisted pair cableopen circuits Fosco Connect
