Two commonly used opamp are LM741 & LM358. Difference between LM358 & LM741 is, LM358 is newer and have two OP-AMP on chip while in 741 only one OP-AMP is present. Both the IC's have 8 pins.

What are the 5 types of microcontroller?

Different types of Microcontroller Programming used in Embedded Systems

• Advantages. A microcontroller is a cheap and minimal size, easy to carry out.
• PIC Microcontroller.
• ARM Microcontroller.
• 8051 Microcontroller.
• AVR Microcontroller.
• MSP Microcontroller.

Why is LM358 used?

LM358 can be used as transducer amplifier, DC gain block etc. It has large dc voltage gain of 100dB. This IC can be operated on wide range of power supply from 3V to 32V for single power supply or from ±1.5V to ±16V for dual power supply and it also support large output voltage swing.

Is op-amp still used?

Op-amps can be used for various applications, depending on the external components added. In the most basic circuit, op-amps are used as voltage amplifiers, which can be broadly divided into noninverting and inverting amplifiers.

Is LM358 a microcontroller?

All these components are integrated onto a single chip. They are available in various forms like 555 timers, single circuit logic gates, microprocessors, microcontrollers, voltage regulators and op-amps like IC 741, LM324 IC, LM358 IC, LM339 IC and many more.

Can I use comparator as op-amp?

While operational amplifiers and comparators may look similar, they are very different and designed to be used in different applications as an op-amp may be used as a comparator, a voltage comparator can not be used as an op-amp due to its non-linear output stage.

Is LM358 single supply?

Single Supply Operation This means that operation with a +12V supply could be limited as low as 2 Vp-p output swing. The LM358 however, allows a 10.5 Vp-p output swing for the same 12V supply.

What is the function of LM324?

An LM324 circuit is an operational amplifier that you can use on various types of circuits. It features a broad range of power supply, uptake of small static power, and compatibility to a single power supply.

What is the difference between a comparator and an op-amp?

Unlike operational amplifiers that usually operate with the input voltages at the same level, comparators typically see large differential voltage swings at their inputs. But some comparators without rail-to-rail inputs are specified to have a limited common mode input voltage range.

Do op amps have high gain?

Op-amps have a high gain (around 105, or 100 dB). To achieve stable operation, op-amps are used with negative feedback. The gain of an op-amp without feedback is called the open-loop gain whereas the gain of an op-amp with a feedback circuit is called the closed-loop gain.

What is LM324 chip?

The LM324 series are low−cost, quad operational amplifiers with true differential inputs. They have several distinct advantages over standard operational amplifier types in single supply applications.

What is the output voltage of LM358?

They can operate at supply voltages as low as 3.0 V or as high as 32 V, with quiescent currents about one−fifth of those associated with the MC1741 (on a per amplifier basis).

Is LM324 rail to rail op-amp?

The LM324 is a quad, high-gain frequency-compensated operational amplifier, which can operate from 3V to 32V single supply or from ±1.5V to ±16V dual supplies while consuming only 860μA quiescent current. The LM324 features low power, low offset voltage and low bias current.

Is LM358 a good op-amp?

LM358 IC can also be used as transducer standard operational amplifier and it is suitable for our needs. It can handle voltage from 3V to 32V DC supply and current up to 20mA per channel. It consists of 8 pins which contains two operational amplifiers.

How do you know if an op amp is rail-to-rail?

The entire range from the maximum voltage of a power line (VCC) to its minimum voltage (GND or minimum negative voltage, VEE) is referred to as rail-to-rail. Op-amps having a common-mode input voltage range that almost covers the GND-VCC or VEE-to-VCC range are called rail-to-rail input op-amps (or full-swing op-amps).

Is LM358 rail-to-rail?

The LM358 is not a rail-to-rail device. In your design, since your V+ = 3.3V, then your input common mode voltage max would have to be less than 1.3V (V+ - 2). If you exceed the common mode voltage ranges then your op amp will not behave properly, and the output becomes non-linear.

What is the gain of LM324?

KEY FEATURES OF LM324 QUAD OP-AMP: 1MHz unity gain bandwidth. Open loop gain of 100x.

What voltage does a comparator output?

A comparator circuit compares two voltages and outputs either a 1 (the voltage at the plus side) or a 0 (the voltage at the negative side) to indicate which is larger. Comparators are often used, for example, to check whether an input has reached some predetermined value.

Can I use LM358 instead of LM324?

The LM358 is equivalent to one−half of an LM324. These amplifiers have several distinct advantages over standard operational amplifier types in single supply applications.

What is amplifier rail voltage?

Amplifiers require a DC (sometimes called rail) voltage to provide a constant power source which the amplifier can in turn use to amplify the input signal.

15 Lm324 datasheet Images

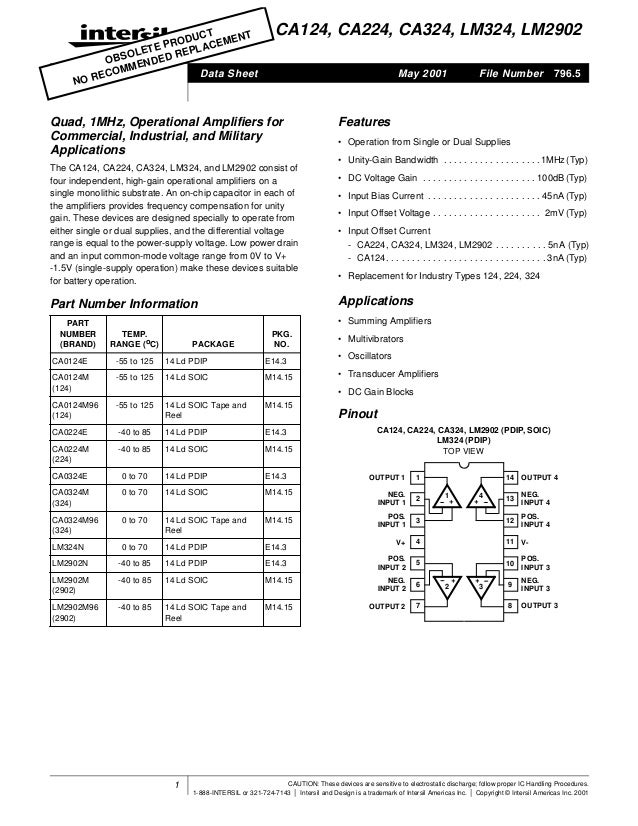

LM324 DatasheetPDF Unisonic Technologies

LM324 Datasheet PDF 129 KB Philips Pobierz z Elenotapl

LM324 DatasheetPDF National Semiconductor TI

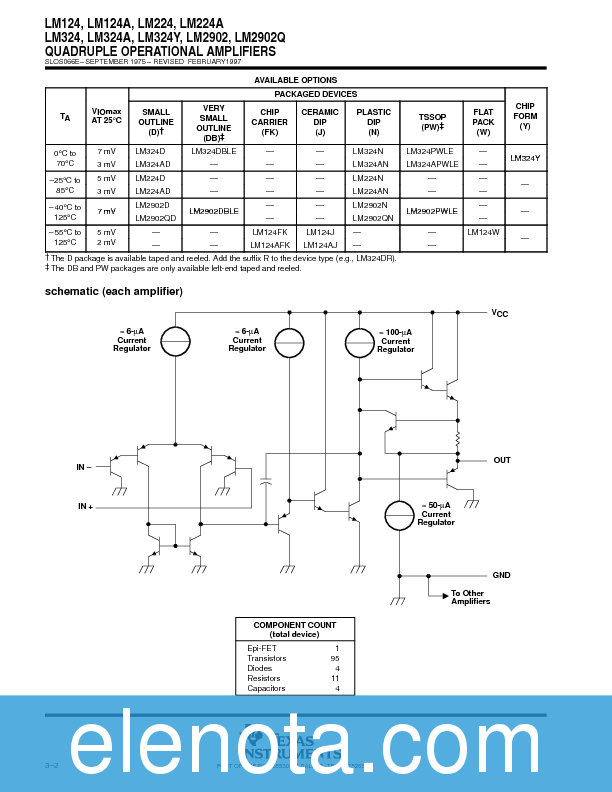

LM324 Datasheet Quadruple Operational Amplifier TI

LM324 Low Power Quad OpAmp Datasheet

LM324 DatasheetPDF First Components International

LM324 Datasheet PDF 131 KB Texas Instruments Pobierz z Elenotapl

LM324 Datasheet PDF 131 KB Texas Instruments Pobierz z Elenotapl

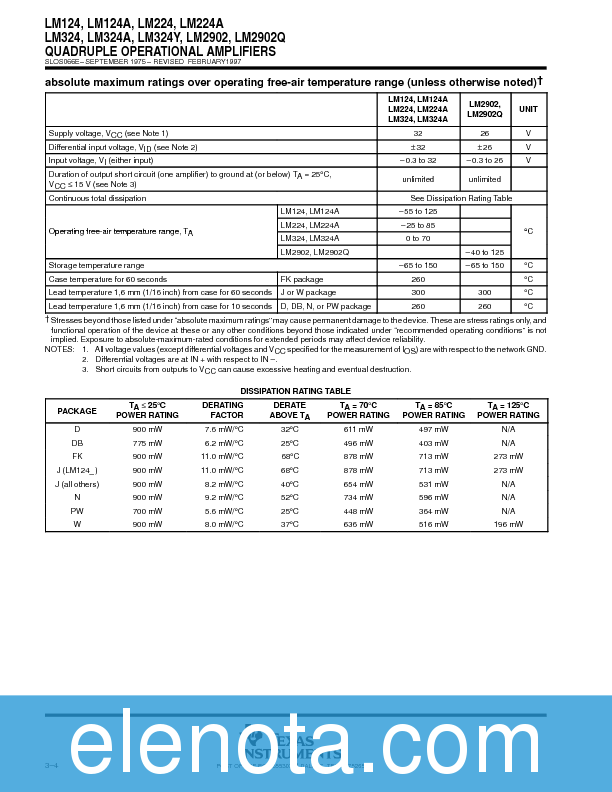

LM324 Datasheet PDF Quadruple OP Amp TI
