How to measure vacuum pressure

Vacuum level of 5 Pa All pressures below atmospheric pressure are considered vacuum. 101,325 Pa is 1 standard atmosphere. Therefore 5 Pa would be ~ 0.005% of atmosphere, so small in comparison to the total vacuum range. However vacuum can be referenced to atmospheric pressure or a perfect vacuum.

What pressure is full vacuum?

For perfect vacuum (100%) - the pressure is 0 torr, 0 psia or 0 Pa abs.

Is Hg the same as PSI?

Inch of mercury
1 inHg in ...	... is equal to ...
SI units	3.38639 kPa
United States customary units	0.491154 psi

Is 0 psi a vacuum?

Absolute pressure is measured relative to high vacuum (0 PSIA).

What is considered high vacuum?

What is the definition of high, ultra and extreme high vacuum? The pressure range of XHV is usually defined as 10-12 mbar and lower, while UHV is between 10-7 and 10-12 mbar, and HV between 10-7 and 10-3 mbar.

What do you mean by vacuum pressure?

A vacuum pressure is one that is lower than the ambient environment surrounding pressure, and is typically measured relative to a perfect vacuum or full vacuum. Since the reference pressure is not relative to another pressure and does not change, it is called the absolute reference or absolute pressure reference.

What instrument measures vacuum?

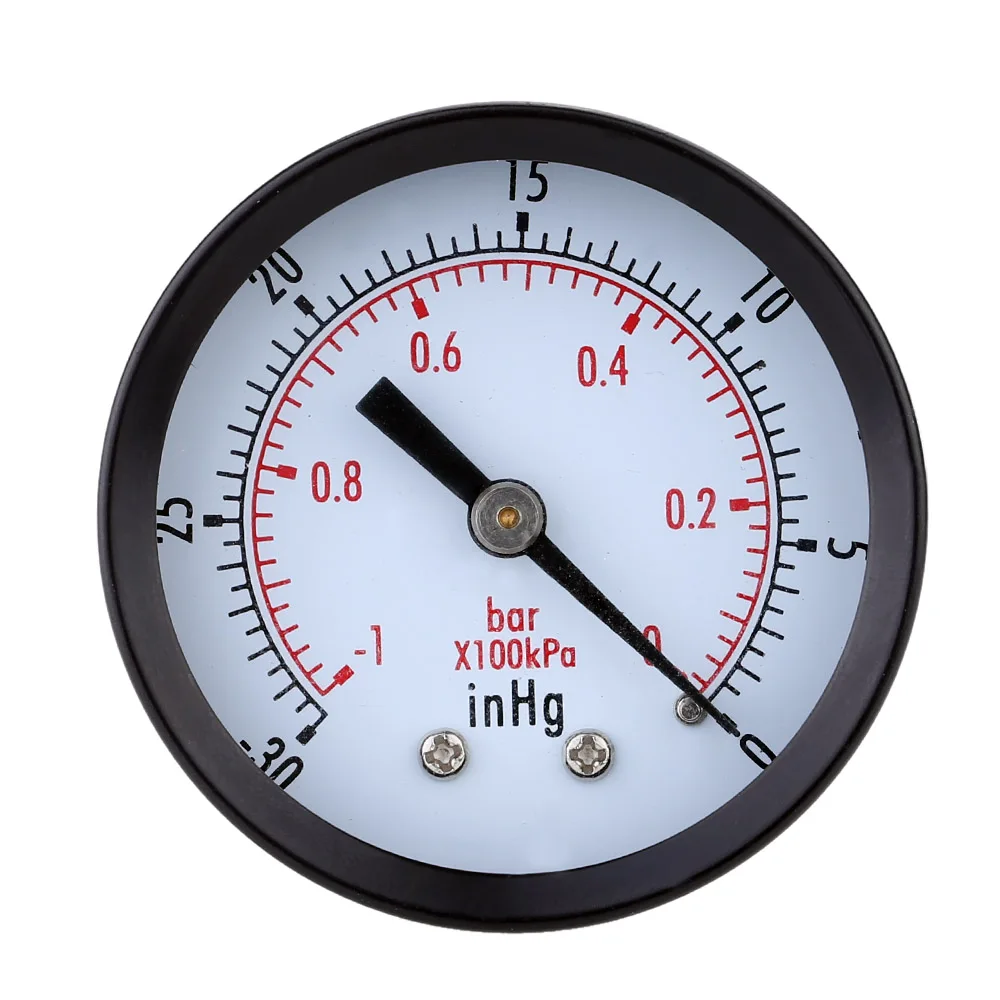

A Vacuum Gauge is a pressure measuring instrument that measures pressure in a vacuum (i.e., in a vessel operating at sub-atmospheric pressure).

What is normal vacuum pressure?

Any negative pressure significantly below standard atmospheric pressure (760 Torr/mmHg, 29.9 inHg or 14.7 PSI) is considered a vacuum.

What are the 4 measurements of pressure?

These four types of pressure measurements are gauge, sealed, absolute and differential.

Is vacuum pressure always negative?

Vacuum pressure is also measured relative to the local atmospheric pressure, but is used when the gage pressure is negative, i.e. when the absolute pressure falls below the local atmospheric pressure. (Positive vacuum pressure means that the gage pressure is negative.)

Can we make 100% vacuum?

Ultimately, a perfect vacuum isn't possible because quantum theory dictates that energy fluctuations known as 'virtual particles' are constantly popping in and out of existence, even in 'empty' space.

How much vacuum can a human pull?

The vacuum you can make by sucking is limited by the amount your lungs can expand. For an average man the residual volume (least amount of air you can have in your lungs) is about 1 litre while the total lung capacity is about 6 litres.

How can we measure vacuum pressure using a simple manometer?

U-Tube Manometer One of the simplest vacuum pressure measurement devices consists of a U-shaped tube with a liquid (originally mercury) inside of it. When one applies vacuum pressure to one side of the tube, the liquid rises in the other tube, giving us our vacuum pressure measurement.

Can a pressure gauge be used to measure vacuum?

A positive gauge pressure range would not be suitable for measuring a vacuum, since it will only measure pressures that are greater than atmospheric pressure. Therefore only gauge pressure ranges that include a negative pressure range will be suitable for measuring a vacuum pressure.

What causes low vacuum pressure?

A vacuum reading at idle that is much lower than normal might indicate leakage through the intake manifold gaskets, manifold to carburetor gaskets, vacuum brake booster or the vacuum modulator. Low readings could also be caused by very late valve timing or worn piston rings.

Is vacuum pressure absolute or gauge?

Absolute Pressure Defined In contrast, the pressure that is measured against atmospheric pressure (also known as barometric pressure) is called gauge pressure. A full vacuum has an absolute pressure reading of 0 PSIA and the average barometric pressure at sea level is ~14.7 PSIA.

Why vacuum is not more than 760 MMHG?

A scale of 0 to 30 inches of Hg does not allow for accurate measurements of the low pressure produced by oil-sealed mechanical vacuum pumps, but the metric equivalent of 0 to 760 mm of Hg does allow for more accurate readings because there are more divisions on the scale.

What is the difference between gauge pressure and vacuum pressure?

What is the difference between gauge pressure and vacuum pressure? Gauge pressure and vacuum pressure are both measured relative to the atmospheric pressure. The difference is that gauge pressure is higher than atmospheric pressure, while vacuum pressure is lower than the atmospheric pressure.

Why is vacuum measured in mercury?

Because it's silvery in color. And if you drop it it moves quickly across moves very quickly and we

How many Hg is a perfect vacuum?

In the U.S., the common standard to measure rough vacuum is inches of mercury ("Hg), which can be measured in two different ways. One method is as "Hg gauge ("HgV), where the scale starts at 0" Hg (atmospheric pressure) and goes up to 29.92" Hg, which is perfect vacuum.
