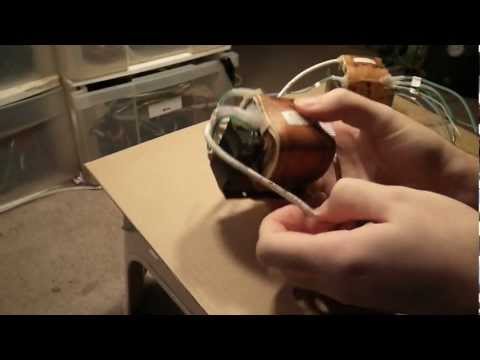

Buzzing transformer

Symptoms of power quality issues include vibration, excessive buzzing or humming and overheating. Technicians should occasionally check the power of transformers that supply nonlinear loads, such as variable frequency drives (VFDs) or switching power supplies.

How far should you live from an electric substation?

500 feet away from a transformer box. 500 feet away from an electrical substation. Within a mile from power lines that are connected to high metal towers.

Do transformers make a high pitched noise?

All power adapters or transformers (the brick) will make a humming or buzzing sound to some degree. However, if this sound is excessively loud, then the issue could be caused by either a problem with the transformer or the quality of the AC line voltage.

What would cause a transformer to go bad?

A transformer can fail for a variety of reasons, but the most common causes include lightning strikes, overloading, wear and corrosion, power surges and moisture. Regardless of the cause, the result can be remarkable. Transformers contain mineral oil keeping the transformer cool.

What are the signs of a bad transformer?

If your transformer is bad, you will have a tripped circuit breaker. It tips to prevent a voltage surge which can fry various parts inside the HVAC system resulting in a major breakdown of the equipment. Similarly, a transformer with clear burn marks or a bulged exterior is also a sign of a bad transformer.

Should a doorbell transformer buzz?

the transformer makes a decent amount of noise. That's bit concerning. A transformer should emit mains hum, but it should be very faint, impossible to hear from a distance. On a busy day, you should have to put your ear to it in order to notice the sound, easier to feel by hand.

What are the losses in transformer?

The four main types of loss are resistive loss, eddy currents, hysteresis, and flux loss.

What is the permissible noise level in transformer?

For certification of transformer in terms of permitted noise levels, the American National Standards Institute ANSI Standard C89. 2 prescribes for distribution transformers up to 9 kVA maximum noise level of 40 dB, and for the power of 301-500 kVA maximum noise level of 60 dB.

What causes a humming sound in a transformer Mcq?

Magnetostriction causes transformer noise. The contraction and expansion of the iron core (laminations) due to the magnetic effect of alternation current flowing through the transformer coils. This produces an audible hum.

What does an electric current sound like?

Essentially, as stray electrical discharges travel through the air surrounding the power lines, a hissing sound is created. This occurs more often at high voltage levels and during humid or wet weather when moisture in the air increases conductivity.

What does a transformer do?

A transformer's main function is to step-up or step-down the voltage from the primary to the secondary windings. This is done simply by adjusting the ratio of coils on one side to the other.

Do electricity substations make noise?

Substation Noise Sources The most noticeable audible noise generated by normal substation operation consists of continuously radiated audible discrete tones. Noise of this type is primarily generated by power transformers. Regulating transformers, reactors, and emergency generators, however, could also be sources.

Why does power lines make noise?

"The audible noise emitted from high-voltage lines is caused by the discharge of energy that occurs when the electrical field strength on the conductor surface is greater than the 'breakdown strength' (the field intensity necessary to start a flow of electric current) of the air surrounding the conductor.

How do I know if my power supply is failing?

Signs of a Failing PSU

PC Won't Boot at All. As the central hub of the energy of your computer, if the power supply has died, the computer will fail to start.
PC Randomly Restarts or Shuts Down.
Random Blue Screen of Death (BSoD)
Extra Noise Coming from the PC Case.
Smoke or a Burning Smell.

Can you hear a transformer?

Over time, the transformer core adhesive starts to break apart and the laminated layers separate from each other slightly. The vibration of these layers is the humming noise you can hear and once the adhesive starts to break, the sound gets louder.

What are some of the most common causes of transformer humming?

Why? Because all transformers “hum” to some extent due to the flow of alternating current through the transformer, which has a magnetic effect on the iron core of these devices.

Are transformers supposed to hum?

We have established that the core and coils of a transformer will, when magnetized, produce a hum (noise) and mechanical vibrations, but, the transformer category will also have an effect on what happens once the noise and vibration is produced.

What are the different types of transformers?

Different Types of Transformers and Their Applications

Step-Down Transformer. Step down Transformer is used in both Electronics and Electrical domain.
Step-Up Transformer.
Isolation Transformer.
Iron Core Transformer.
Ferrite Core Transformer.
Toroidal Core Transformer.
Air Core transformer.
Transformers used in Power domain.

How many amps is a 3 kVA transformer good for?

KVA	208V	240V
	Amps	Amps
3	8.3	7.2
6	16.6	14.4
9	25.0	21.7

How do I stop my power supply humming?

Reposition and Clean the PSU Power down your computer, flip the PSU switch and unplug it from the wall. After a few minutes, open the case and unscrew the power supply from the back of the case if needed. Use compressed air to clean the inside of your computer, starting at the top and working your way down.
