Bulkhead compression fitting

Bulkhead Unions are optimally designed to directly thread through your equipment housing to connect internal tubing to the outside. Each union has unique 3/8-24 external threads and comes complete with a stainless steel nut and lock washer to hold it in place.

Is it OK to reuse compression fittings?

If it hasn't been tightened many times, it should be okay to reuse. Clean off the mating faces thoroughly and don't use tape, putty, or anything else. And don't be gentle tightening: The seal is formed by forcing the surfaces together and "bending" them to mate.

Do plumbers still use PTFE tape?

This makes PTFE tape a must-have for plumbers and anyone who does pipework jobs, such as irrigation contractors. Every plumber worth their salt should have teflon tape with their other irrigation tools.

How tight should compression fittings be?

Compression fittings should be tight enough to create a watertight seal but not so tight that the pipe warps or the thread is damaged as this could encourage leaks and make the fittings much harder to remove later.

Can I use plumbers MAIT on compression fittings?

Plumbers mate has no place on compression joints tho I agree.

How does a Uniseal work?

Uniseals work like a bulkhead or tank connector but better. Inserted into a hole created in a vessel like a tank or barrel with a holesaw they create a simple and effective liquid tight seal through which a pipe can be inserted directly through the vessel wall into your vessel.

How are bulkhead fittings sized?

The two many dimensions that they need to know are the interior thread size and the hole size. - The interior thread is what the fitting is called out by. For instance a 32182 1/2" bulkhead tank fitting has 1/2" FNPT on the inside. - The hole size is basically the diameter of the external threads.

What is a PVC bulkhead fitting?

PVC Bulkhead Fittings. Heavy-duty bulkhead fittings are designed for easy adaptation and installation, permitting a free flow of liquids for tank or drum drainage or filling. They can also be used as outlets for distribution into a piping system.

Should you use Teflon tape on compression fittings?

Also, do not use too much Teflon tape as this could be counterproductive and prevent the joint from sealing properly and/or causing the tape to gum up. DO NOT use Teflon tape under the compression nut or on flare threads of brass compression fittings (or a compression fitting of any other material)!

How do I stop my bulkhead from leaking in my tank?

I always smear some aquarium silicone on the gasket and then lightly tighten it down with the bulkhead in place. Wait 24 hours to cure. Then tighten it down and your good. This seals the gasket to the tank.

How do you install a bulkhead fitting in a tank?

You want to make sure that the gasket is also on the inside of the hole should be the gasket. And

What side does the gasket go on a bulkhead?

Always install the gasket on the flange side of the bulkhead, never on the nut side, regardless if its inside or outside the tank. Installing the gasket next to the nut will lead to leaks as water travels along the threads around the gasket.

What is a bulkhead hydraulic fitting?

Hydraulic bulkhead fittings are used to connect hydraulic hoses to a tank. Once the fitting is inserted into a hole in the tank, the locknut is twisted to tighten and secure the fitting.

How many times should you wrap PTFE tape?

When applying the tape clockwise, it's recommended that you wrap it around the thread three or four times. This is thick enough to prevent leaks, but not too thick that you can't get the nut on.

How do you seal a bulkhead fitting?

Fitting, the bulkhead fittings seal by drilling a single hole into the sidewall of the tank. The installer places a ring gasket onto the bulkhead fitting, and it goes from the inside of the tank to the outside through the hole. A compression nut then threads onto the bulkhead fitting, is tightened up and is sealed.

What is a bulkhead in piping?

A bulkhead is a fitting designed to allow the drainage of a tank or reservoir through a hole. It creates a seal to avoid leakage and allows you to plumb the water from that tank to wherever you need it to go.

How do you attach a pipe to a bulkhead fitting?

Saw. That's going to be the the appropriate size to to make the hole to where it'll fit kind of snug

How do I attach a bulkhead?

One thing to mention here usually hand tight is enough to create a seal. And over tightening can

How do you use PVC bulkhead fittings?

Installing Bulkhead Fittings

1. Drill the right size hole into the aquarium or container.
2. Push the rubber gasket onto the bulkhead, over the threaded side.
3. Insert the front flanged side of the bulkhead through the hole.
4. Attach retaining nut and tighten.
5. Proceed to attach PVC or plumbing fittings.

How do you measure a bulkhead?

You need to measure the OD of the PVC pipe going into the bulkhead, and take the bulkhead off and measure the hole in the glass. Once you measure the pipe OD, you need to reference a pipe chart to determine the nominal pipe size. For example, 1" pipe has a 1.315" diameter measurement, 1.5" pipe is 1.9" OD, and so on.

11 Bulkhead compression fitting Images

SV08LCF Parker Parker Hydraulic Bulkhead Compression Tube Fitting M14

Wade Brass Bulkhead Compression Fitting 14 x 38 Straight Coupling

Compression Bulkhead Fitting Black Nickel 38 ID

Top 13 Compression Bulkhead Fittings in 2020 July update

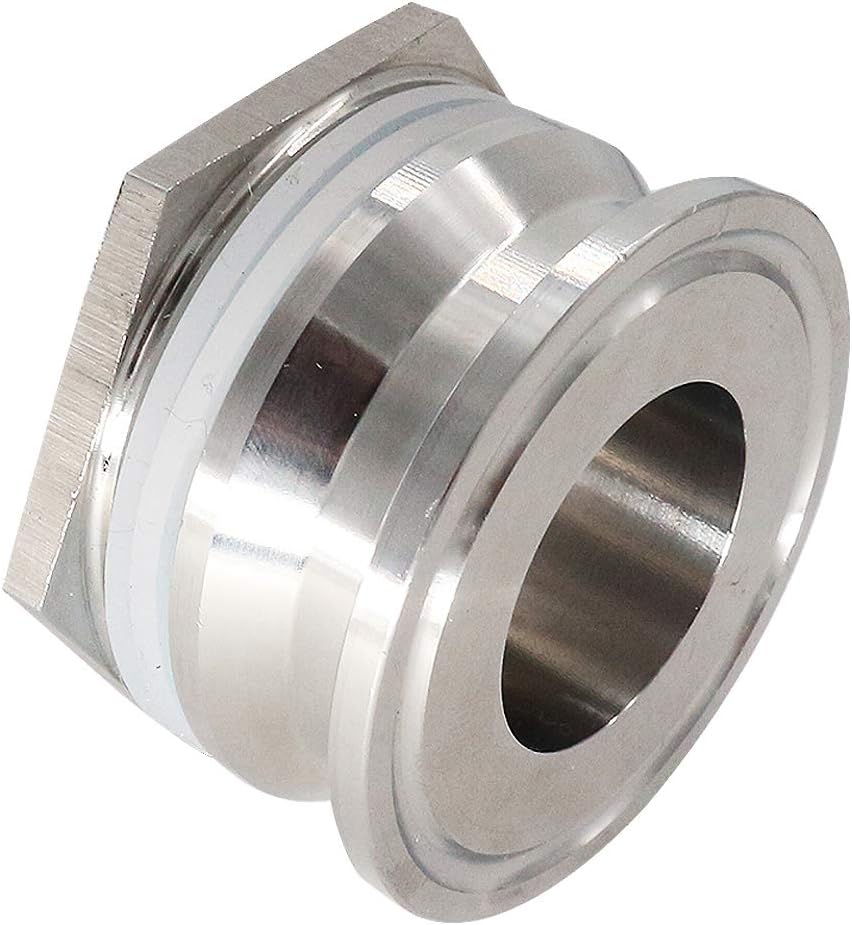

Amazoncom 15 TriClover Bulkhead Compression Fitting Tri Clamp

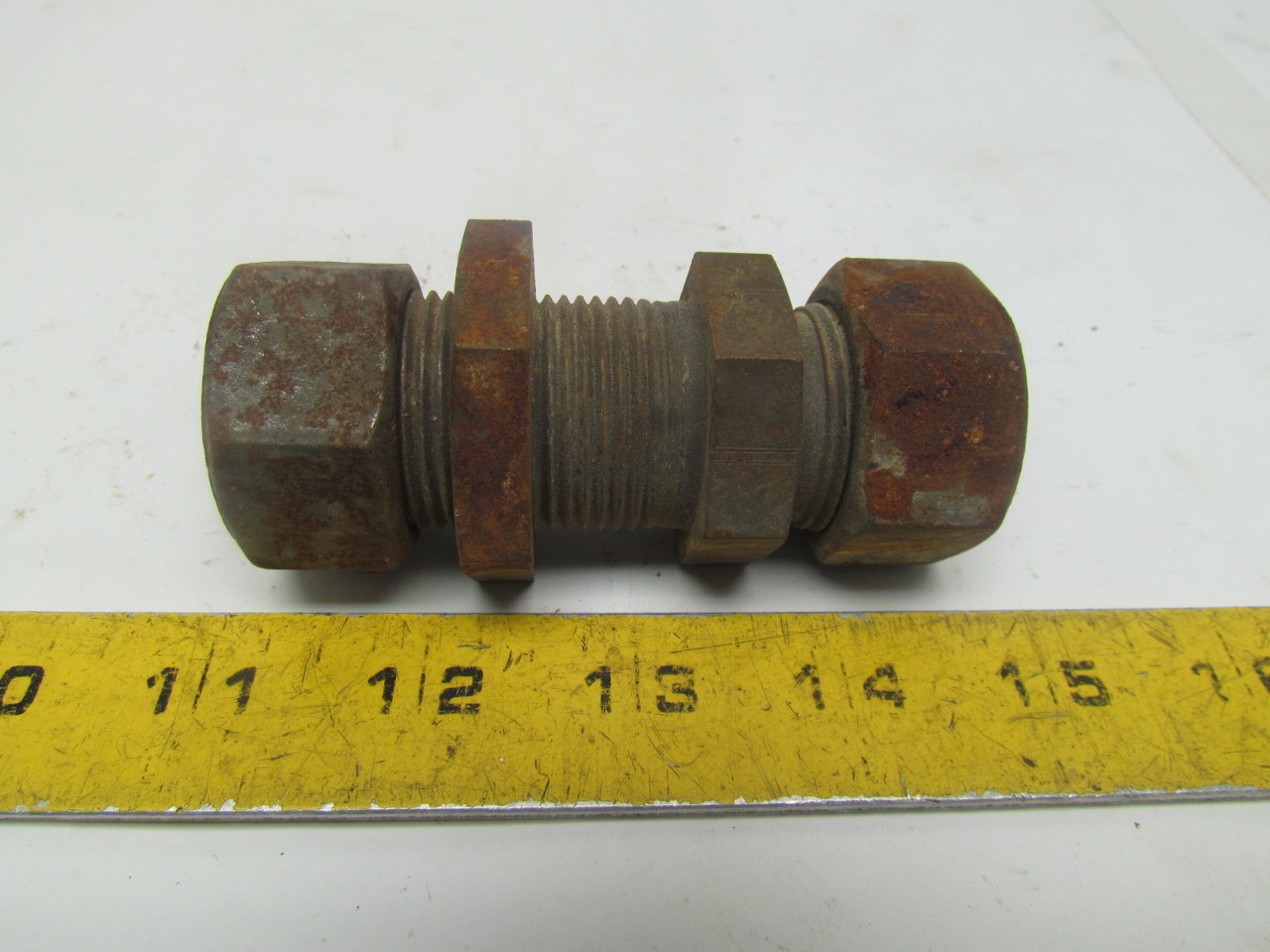

Parker Metric Bite Type Compression Fitting Bulkhead Union 22mm Tube OD
