What is voltage bias

A bias resistor built-in transistor (BRT) is a bipolar transistor with a bias network consisting of a series base resistor and a base-emitter resistor. With bias resistors built into the transistor, BRTs help reduce the number of external components required, simplifying a discrete circuit configuration.

What is meant by Q Point?

The operating point of a device, also known as a bias point, quiescent point or Q-point, is the steady-state DC voltage or current at a specified terminal of an active device such as a transistor with no input signal applied.

What are the requirements of biasing?

Emitter base junction must be forward biased and collector base junction must be reverse biased. That means the transistor should be operated in the middle of the active region or Q point should be fixed at the centre of the active region.

Why transistor is called bipolar?

Whereas a field-effect transistor is a unipolar device, a bipolar transistor is so named because its operation involves two kinds of charge carriers, holes and electrons. Since the bipolar transistor was the first transistor to be invented, when one simply says "transistors," it sometimes means bipolar transistors.

What is called biasing?

Overview. In electronics, 'biasing' usually refers to a fixed DC voltage or current applied to a terminal of an electronic component such as a diode, transistor or vacuum tube in a circuit in which AC signals are also present, in order to establish proper operating conditions for the component.

What is biasing in diode?

Biasing, in general, is defined as an arrangement made in the diode or an electrical device to allow a larger flow of current in a certain direction. Usually, a device or more precisely a diode can be connected to a source in different ways.

What is difference between PNP and NPN transistor?

PNP switches On by a low signal whereas NPN switches ON by a high signal. As we are aware that in PNP transistor, the P represents the polarity of the emitter terminal and N represents the polarity of the base terminal.

How do you find voltage bias?

By "teeing" off the input into a DC volt meter, the bias voltage can be measured. While measuring the supply voltage, the bias voltage can be measured after the sensor is plugged in. If the meter stays at supply, something in the system is open or not connected.

Why do we bias in electronics?

Bias is widely used in analog devices, such as an audio amplifier, to keep the input voltage within the conductive region of the transistor or tube. It is also used in digital circuits to reach a certain threshold and open or close the switch faster.

Why do we bias a diode?

Bias. A diode (PN junction) in an electrical circuit allows current to flow more easily in one direction than another. Forward biasing means putting a voltage across a diode that allows current to flow easily, while reverse biasing means putting a voltage across a diode in the opposite direction.

How do you bias an NPN transistor?

Transistor biasing can be achieved either by using a single feed back resistor or by using a simple voltage divider network to provide the required biasing voltage.

Why do we need biasing?

Why it is necessary ? Transistor Biasing is the process of setting a transistors DC operating voltage or current conditions to the correct level so that any AC input signal can be amplified correctly by the transistor. ➢ To active an transistor, biasing is essential.

What are the three types of biasing?

Three types of bias can be distinguished: information bias, selection bias, and confounding. These three types of bias and their potential solutions are discussed using various examples.

What is negative bias voltage?

Negative Bias is a voltage applied to an electrode of an electronic device which is negative with respect to ground.

Why do we need biasing in BJT?

Transistor biasing makes analog and digital operation of a transistor possible. Without transistor biasing, BJT amplifiers fail to deliver the required output across load terminals. The optimum value of transistor bias voltage is equal to two times the required AC output voltage peak.

How do I know if my amp needs biasing?

If you notice the sound has started to change, become noisy, or a tube isn't lighting up as it used to, it could be a sign the bias needs to be set. If you are replacing tubes the bias should always be checked before listening. To ensure you get a proper reading, the amplifier must be on and warmed up.

What is Q point and load line?

The DC load line is the load line of the DC equivalent circuit, defined by reducing the reactive components to zero (replacing capacitors by open circuits and inductors by short circuits). It is used to determine the correct DC operating point, often called the Q point.

Why is voltage called bias?

Bias is another word for the operating point -- a dc voltage or current about which the instantaneous value might vary. For example, you can say you applied a "6 V peak-peak AC signal biased at +1 V". In this case the range of the signal would be from -2 to +4 V.

What are two advantages of voltage divider bias?

Advantages: (i) It offers excellent stabilisation and hence Q point does not shift. (ii) when used in amplifiers, it provides better amplification.

What is the effect of biasing?

Biased tendencies can also affect our professional lives. They can influence actions and decisions such as whom we hire or promote, how we interact with persons of a particular group, what advice we consider, and how we conduct performance evaluations.

10 What is voltage bias Images

Current a and power b as a function of voltage bias respectively

Creating a bias supply tap Telecaster Guitar Forum

CA2148 Cable Voltage Bias and Heater 1830A to 15XX25XX 48 TEGAM

Learn OpenEnergyMonitor

Hioki 9268 DC Bias Voltage Unit at the Test Equipment Depot

PDF Superconducting Detectors and Mixers for Millimeter and

Current a and power b as a function of voltage bias respectively

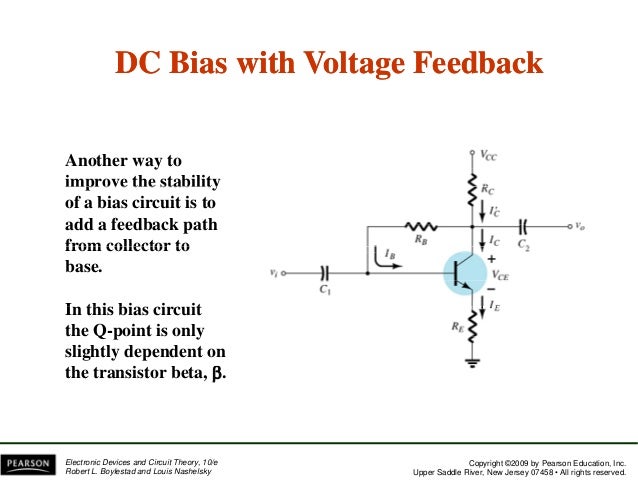

Electronic devicesandcircuittheory10thedboylestadchapter4
