What is mos transistor

What is the difference between CMOS and MOS? CMOS(complementary metal oxide semiconductor) uses both PMOS and NMOS whereas MOS(metal oxide semiconductor) or MOSFET can be either PMOS or NMOS. CMOS allows both logic 1 or 0 to propagate through it but in case of NMOS or PMOS it is not like this.

Which transistor is used in VLSI?

MOS technology is considered as one of the very important and promising technologies in the VLSI design process. The circuit designs are realized based on pMOS, nMOS, CMOS and BiCMOS devices. The pMOS devices are based on the p-channel MOS transistors.

What are the characteristics of MOS transistor?

MOSFETs are tri-terminal, unipolar, voltage-controlled, high input impedance devices which form an integral part of vast variety of electronic circuits.

What is MOS transistor Mcq?

Explanation: MOS transistor is a majority carrier device, in which current in a conducting channel between the source and drain is modulated by a voltage.

Why MOS is better than BJT?

The input impedance of MOSFET is very high like the megohms range whereas the BJT's input impedance ranges within the kiloohms. Therefore, MOSFET making is extremely perfect for amplifier based circuits. As compared with BJTs, MOSFETs have less noise.

How are MOS transistor classified?

There are two classes of MOSFETs. There is depletion mode and there is enhancement mode. Each class is available as n- or a p-channel, giving a total of four types of MOSFETs. Depletion mode comes in an N or a P and an enhancement mode comes in an N or a P.

Why MOS is used in VLSI?

MOSFET has low leakage current and better thermal stability than JFET. MOSFET technology is easily scalable and easier to manufacture. MOSFETs are also used for high power applications but JFETs are used for low power applications.

Why MOSFET is given the name MOS?

Investigating thermally grown silicon-dioxide layers, they found these states could be markedly reduced at the interface between the silicon and its oxide in a sandwich comprising layers of metal (M - gate), oxide (O - insulation), and silicon (S - semiconductor) - thus the name MOSFET, popularly known as MOS.

Is MOS better than CMOS?

Shortly put, there is no difference. Generally CMOS is a subset of MOS, but in sensors' context it represent the same thing.

Is MOSFET unipolar or bipolar?

MOSFET's are unipolar conduction devices, conduction with one type of charge carrier, like a FET, but unlike a BJT. A MOSFET is a voltage controlled device like a FET. A gate voltage input controls the source to drain current.

What is the advantage of MOS device?

The main advantage of the MOS transistor is that it doesn't require input current to control the load. These transistors are unipolar devices. So, there is no leakage current ideally.

What is a MOS transistor used for?

What are MOSFETs used in? The MOSFET is the most common type of transistor today. Their primary use is to control conductivity, or how much electricity can flow, between its source and drain terminals based on the amount of voltage applied to its gate terminal.

Why MOSFET is called MOS capacitor?

The acronym MOS stands for Metal oxide semiconductor. An MOS capacitor is made of a semiconductor body or substrate, an insulator and a metal electrode called a gate. Practically the metal is a heavily doped n+ poly-silicon layer which behaves as a metal layer.

What is basic MOS transistor?

A MOS transistor is primarily a switch for digital devices. Ideally, it works as follows: If the voltage at the gate electrode is "on" , the transistor is "on", too, and current flow between the source and drain electrodes is possible (almost) without losses.

What is MOS design?

MOS circuits are formed by three layers i.e. diffusion ( n or p diffusion layer), polysilicon and metal, which are isolated from one another by thick or thin (thinox) silicon dioxide insulating layers. ➢ The thin oxide region includes n- diffusion, p- diffusion and transistor channels.

What is the difference between BJT and MOS?

BJT stands for Bipolar Junction Transistor. MOSFET stands for Metal Oxide Semiconductor Field Effect Transistor. BJT is a three-terminal semiconductor device used for switching and amplification of signals. MOSFET is a four-terminal semiconductor device which is used for switching applications.

What is TTL and MOS?

TTL stands for Transistor-Transistor Logic. The name is derived from the use of two Bipolar Junction Transistors or BJTs in the design of each logic gate. CMOS stands for Complementary Metal Oxide Semiconductor. TTL is a classification of integrated circuits.

How do MOS sensors work?

MOS sensors detect concentration of various types of gases by measuring the resistance change of the metal oxide due to adsorption of gases. Atmospheric oxygen residing on the MOS surface is reduced by the target gases, allowing more electrons in the conduction band of the metal oxide material.

Why use a MOSFET instead of a transistor?

MOSFETs rely on only one type of charge carriers to perform charge conduction. Their operation mechanics mean that they can be fabricated using much less space in an IC than that BJT counterparts. FETs are also faster than BJTs with a lack of carrier saturation; which means faster switching action.

How many MOS transistors are required?

Solution(By Examveda Team) DRAM consists of one transistor and one capacitor whereas standard SRAM consists of 6 transistors.

11 What is mos transistor Images

511 What is Intergration

MOS Transistor YouTube

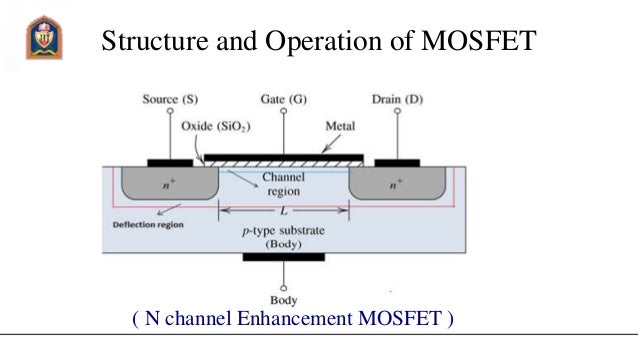

MOS transistor 13

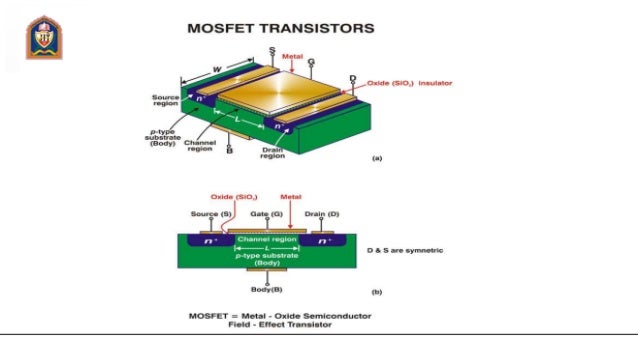

MOS transistor 13
