What Is A Coupling Capacitor - What Does A Coupling Capacitor Look Like?

What is a coupling capacitor

The capacitor is connected in series with a load to be coupled. The capacitor is able to block low

What is the use of a coupling capacitor?

A coupling capacitor is a capacitor that is used to transmit an alternating current signal from one node to another. To preserve the values of voltage, current, and resistance within each stage, the coupling capacitor allows the AC variations to be coupled from an input source but blocks any DC coupling.

Why is it called an AC coupling capacitor?

A capacitor which is used to link one circuit's AC signal to another circuit is referred to as a coupling capacitor. Blocking the DC signal and allowing the AC signal from one circuit to another is the main feature of this capacitor.

What is the main purpose of coupling capacitor in amplifier?

Coupling capacitors are essential components in amplifier circuits. They are used to prevent interference of a transistor's bias voltage by AC signals. In most amplifier circuits, this is achieved by driving the signal to the base terminal of a transistor through a coupling capacitor.

Why do capacitors block DC and pass AC?

Because the capacitor's electrode plates are separated by an insulator (air or a dielectric), no DC current can flow unless the insulation disintegrates. In other words, a capacitor blocks DC current.

How can you tell if a capacitor is leaking?

There are two basic ways to measure the leakage current. First, apply an ammeter in series with the capacitor and voltage source (see Figure 1). Second, apply a voltmeter in parallel with a resistor, and then connect in series to the capacitor and voltage source (See Figure 2).

What is coupling capacitor in a tube amplifier?

The coupling capacitor CG blocks the high DC voltage at the plate of the driving tube while allowing audio signals to pass. Unless bass attenuation is desired, the capacitor needs to be large enough to induce very little signal attenuation at bass frequencies. (82Hz is the lowest note on a guitar with standard tuning.)

How do you reduce voltage spikes?

Increase bulk input capacitance - wire inductance and resistance combined with a big capacitor (with low ESR) will reduce/avoid voltage spikes, because the capacitor reacts to the sudden change in voltage with a lower impedance during the spike itself, soaking up the energy.

What does coupling mean?

Definition of coupling 1 : the act of bringing or coming together : pairing specifically : sexual union. 2 : a device that serves to connect the ends of adjacent parts or objects.

What is the difference between DC and AC coupling?

DC coupling allows you to see all signals from 0 Hz up to the max bandwidth of your scope. AC coupling filters out DC components. When you enable AC coupling on an oscilloscope channel, you're switching in a high-pass filter on the channel's input signal path. This filters out all the DC components.

How do you choose a coupling capacitor?

A coupling capacitor is best selected so that its impedance is as low as possible at the frequency of interest. The impedance magnitude at any frequency is easily calcu- lated as: Since the net reactance is zero at the capaci- tor's FSR, the total impedance will be equal to the ESR at this frequency.

Are Mod capacitors good?

"Mod® Electronics Oil Caps are high quality, hand-crafted capacitors that are the perfect choice for guitars, amplifiers, and all audio equipment. Each capacitor is impregnated with mineral oil for a void-free winding providing highly stable capacitance.

What happens when capacitor is connected to AC?

When a capacitor is linked with an AC circuit, it will consecutively charge and discharge at a rate calculated by the frequency of the supply. In AC circuits, capacitance varies with frequency as the capacitor is being charged and discharged constantly.

Why coupling capacitor is used in PCIe?

Coupling capacitors find plenty of uses in analog applications and on differential protocols, acting essentially as high pass filters that remove DC bias carried seen on a signal. In PCIe routing, coupling capacitors are used for the same function (removing DC offset), but for different purposes.

Can diode be used as capacitor?

The depletion region of the p-n junction diode has high resistance. Hence, the depletion region acts like the dielectric or insulating material. Thus, p-n junction diode can be considered as a parallel plate capacitor.

What is coupling in a circuit?

In electronics, electric power and telecommunication, coupling is the transfer of electrical energy from one circuit to another, or between parts of a circuit. Coupling can be deliberate as part of the function of the circuit, or it may be undesirable, for instance due to coupling to stray fields.

What will happen if the bypass capacitor is removed?

If the bypass capacitor is removed, an extreme degeneration is produced in the amplifier circuit and the voltage gained will be reduced.

Are capacitors AC or DC?

Note: Capacitors are slowly charged in a DC circuit until the charging voltage of the capacitor equals the supply voltage. The capacitor will not allow any further charge to travel through it once it is fully charged.

What is the effect of coupling capacitor on the frequency response?

Effect of coupling capacitors This increase in Xc drops the signal voltage across the capacitor and reduces the circuit gain. As signal frequencies decrease, capacitor reactance increase and gain continues to fall, reducing the output voltage.

What is depth on an amp?

The Depth knob on both the Badonk and the Archetype is a control of the low frequencies in the negative feedback loop of the power amp. A simplified explanation is that it's an active boost of the low frequencies between the preamp and the power amp. This is how a Presence knob works, but with the high frequencies.

7 What is a coupling capacitor Images

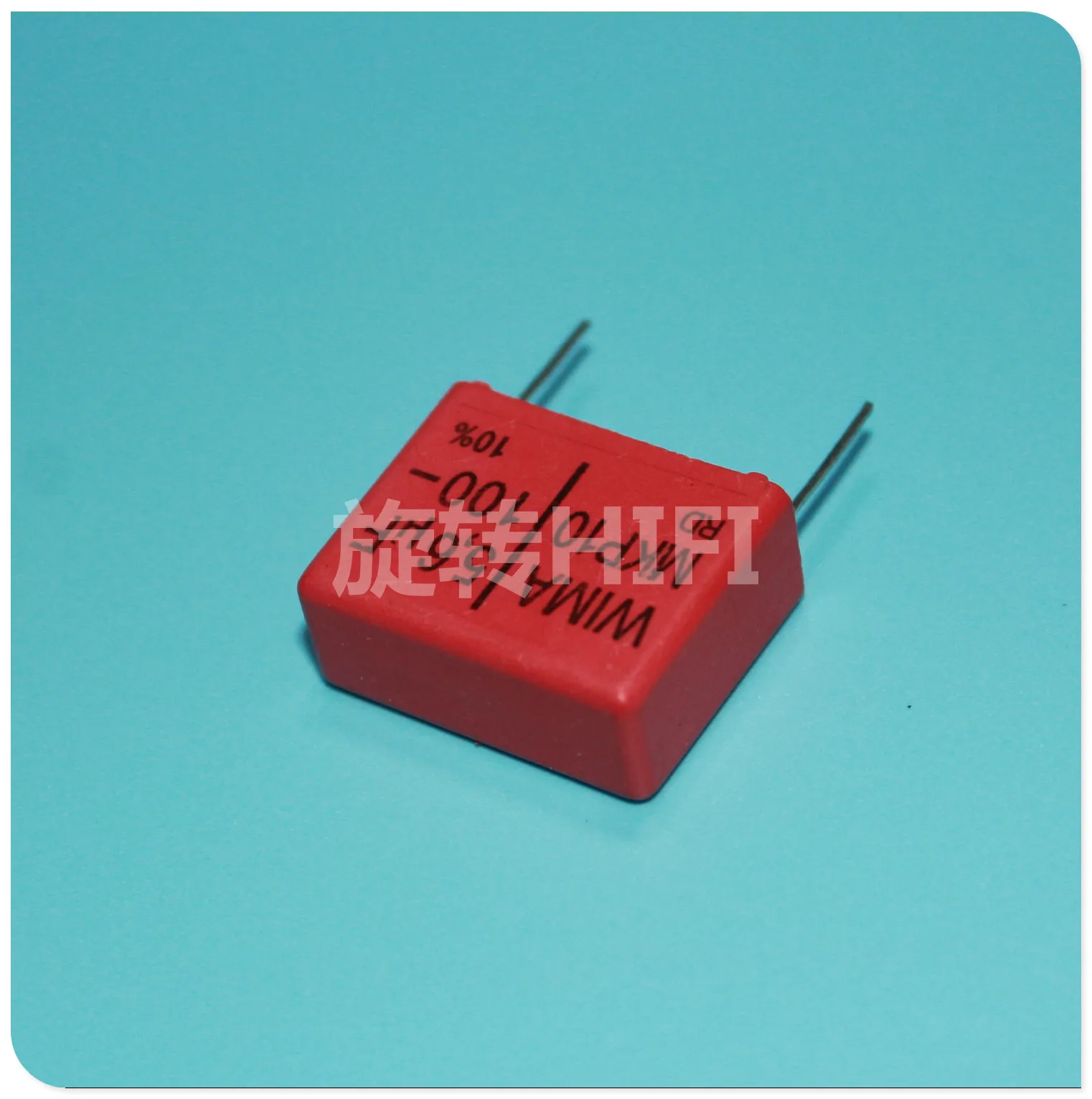

20pcs WIMA MKP10 56uf 5u6 565100v new fever audio coupling capacitor
