What Does A Continuity Tester Do - How Do You Tell If A Wire Is Live Without A Tester?

What does a continuity tester do

We can also use it to find hot wire.

1. Get a voltage detector screwdriver.
2. Turn on the screwdriver by pressing the power button.
3. Touch the probe of the screwdriver to the wire.
4. If the detector lights up, then there is electricity running through the screwdriver.

Can you check continuity with power on?

To measure continuity, the multimeter sends a small test voltage through the wire. The multimeter reads the value of the test voltage to determine if there is continuity. If the power is on, the multimeter cannot accurately read the test voltage.

What is continuity in a circuit?

Continuity is UNBROKEN Conductive path for electricity to flow. This conductive path can be an insulated copper electric wire or a Circuit on a Printed Circuit Board. An Operational Close Circuit is Simplest Example of Continuity in Electricity.

How do you check for a short circuit with a multimeter?

Check the Display of the Multimeter Beginning with the resistance mode, if you are seeing a value of 1 or OL, then there is a short circuit in your electrical circuit. As for the continuity mode, having a reading of 0 or close to 0 will show a short circuit.

Is 2 ohms good continuity?

For almost every common household purpose, any reading less than 1.0 ohms is sufficiently low to be considered excellent conductivity.

Is continuity and ohms the same?

The two are not the same! An Ohmmeter is used to measure the resistance to electrical flow between two points. The Ohmmeter is most commonly used to check continuity. Continuity is not a “measurement” as much as it is a yes / no statement.

How do you test electrical wires?

A voltage tester is the safest way to test for a live electrical wire with there being many testers. The main ones are non-contact voltage testers and digital multimeters and are used to detect current flows. Voltage testers are not expensive and can be purchased from local hardware stores.

How do I find a short in a wire?

But tone is used to find a break in the wire. I have clipped on here one of the alligator clips. And

What is the purpose of testing for continuity?

A continuity test is an important test in determining the damaged components or broken conductors in a circuit. It can also help in determining if the soldering is good, if the resistance is too high for flow of current or if the electrical wire is broken between two points.

What is the maximum resistance allowed for continuity?

The limit for the Earth Continuity Test is (0.1 + R)Ω. Where the R value is the resistance of the protective conductor (earth wire) within the supply cable.

What are the main features that a continuity tester requires?

They consist of an indicator that is connected in series with a power source (usually a battery) and two test leads or probes. The indicator is activated if the probes detect a complete circuit between the leads. Some continuity testers have visual indicators such as light emitting diodes (LEDs).

How do you perform a continuity test?

How to Test for Continuity with a Digital Multimeter

1. First insert the black test lead into the COM jack.
2. Then insert the red lead into the VΩ jack.
3. With the circuit de-energized, connect the test leads across the component being tested.
4. The digital multimeter (DMM) beeps if a complete path (continuity) is detected.

What does a high ohm reading mean?

Higher numbers indicate a higher resistance rating, which means more energy will be required to integrate the component in a circuit. When you test a resistor, capacitor, or another electronic component, the ohmmeter will display a number indicating its resistance.

Does Ol mean short circuit?

If your multimeter shows infinite ohms or OL, then that means the breaker could have deteriorated and tripped from a lower current flow. In this case, you need to access the main panel and replace it. If the multimeter shows continuity, there is a short circuit.

Why is continuity important in electrical?

Continuity can help you determine several things during the testing and troubleshooting phase: Determines if a circuit is open, closed, or shorted. Determines if a fuse is good or blown. Makes sure a switch is operating properly.

How do I know if my electrical switch is bad?

Turn the switch lever on and off. The tester should light up when the switch lever is in the on position but should not light up when the switch lever is off. If it doesn't exhibit this behavior, it indicates the inner connections are bad and that the switch needs to be replaced.

How many ohms is an open circuit?

Open Circuit Resistance In an open circuit condition, the current is zero (I = 0). Hence, for any value of voltage, the resistance is infinite in open circuit conditions.

How do you check continuity on a long wire?

To verify the integrity of the wire involves grounding and un-grounding while metering continuity.

1. Make sure the power going to the wire is off.
2. Disconnect both ends of the wire to be tested.
3. Set your meter to continuity and put one lead to ground and one to the end of the wire you are working on.

How do you trace a bad electrical wire?

8 Signs of Bad Wiring

1. Frequently tripped circuit breakers.
2. Flickering or dimming lights.
3. Buzzing or crackling sounds.
4. Frayed wires.
5. Aluminum or knob-and-tube wiring.
6. Warm or vibrating spots on outlets or walls.
7. Smoke coming from outlets or appliances.
8. Burning smells or scorch marks on electrical fixtures.

How many ohms should a wire have?

The readout should stay level around one ohm. Two or three ohms is still acceptable, but if one of your cables shows much higher readings than the others (of the same length), you should check that all conductors of that cable really make optimal contact with the terminals in each plug.

12 What does a continuity tester do Images

Deluxe Continuity Tester

Pro Continuity Tester with Remote

Continuity Tester at Best Price in India

Continuity Tester at Best Price in India

Electronic Continuity Tester at Rs 32 pieces Bhayandar West

Deluxe Continuity Tester

Continuity Tester

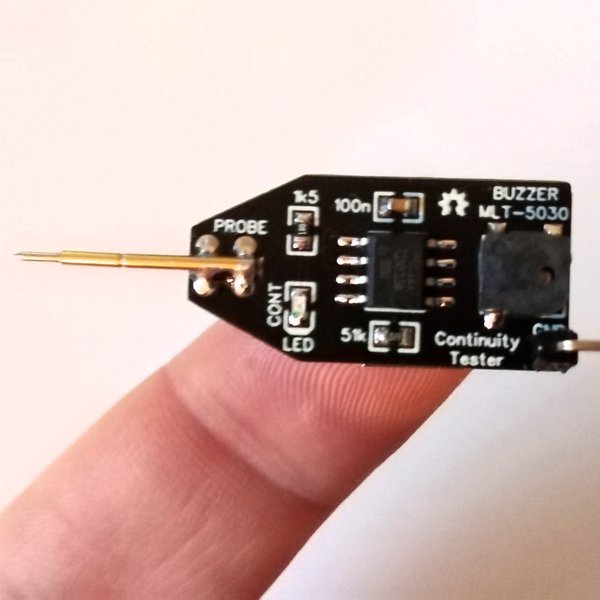

Continuity Tester Hackadayio
