Voltage Drop Using Resistor - How Do We Calculate Voltage Drop?

Voltage drop using resistor

To calculate voltage drop:

1. Multiply current in amperes by the length of the circuit in feet to get ampere-feet. Circuit length is the distance from the point of origin to the load end of the circuit.
2. Divide by 100.
3. Multiply by proper voltage drop value in tables. Result is voltage drop.

How do you find voltage drop with voltage and resistance?

Ohm's Law states that V=I*R, where V is voltage, I is current and R is resistance. In a series circuit, the voltage drop across each resistor will be directly proportional to the size of the resistor. In a parallel circuit, the voltage drop across each resistor will be the same as the power source.

What size resistor do I need to reduce voltage?

To reduce voltage in half, we simply form a voltage divider circuit between 2 resistors of equal value (for example, 2 10KΩ) resistors. To divide voltage in half, all you must do is place any 2 resistors of equal value in series and then place a jumper wire in between the resistors.

What resistor do I need to drop 12V to 9v?

12v to 9v converter using resistors as a voltage divider: Components required: One 12v battery, 300-ohm resistor, 1k resistor, some wires.

How do you reduce 12V to 9V DC?

To reduce a 12V circuit to 9V, place two resistors in series within the circuit. Find the difference between the two voltages (12V - 9V = 3V) to determine the total amount of resistance needed.

What resistor do I need to drop 24v to 12v?

Registered. The resistor you need is 120 ohm power rated at 2W, that is the most common value I would use.

How much voltage drop is acceptable?

How Much Voltage Drop is Acceptable? The National Electrical Code says that a voltage drop of 5% at the furthest receptacle in a branch wiring circuit is passable for normal efficiency.

What is formula for voltage drop?

Voltage drop of the circuit conductors can be determined by multiplying the current of the circuit by the total resistance of the circuit conductors: VD = I x R.

How do I drop 24v to 12v?

You may use step-down DC-DC converter (24V to 12V DC) module . Considering you want to reduce 24V DC to 12V DC, just use voltage regulator IC-7812.

What is voltage drop example?

Example 1: Determine voltage drop Run a No. 10 stranded wire 200 ft at 20A. Per Table 9, our "ohms to neutral per 1,000 ft" is 1.1 ohms. To complete the numerator, multiply as follows: (2 x 0.866) x 200 ft x 1.1 ohms x 20A = 7,620.8 Dividing 7,621 by 1,000 ft gives a voltage drop of 7.7V.

What resistor do I need for LED 12V?

Determine the voltage and current needed for your LED. We'll use the following formula to determine the resistor value: Resistor = (Battery Voltage – LED voltage) / desired LED current. For a typical white LED that requires 10mA, powered by 12V the values are: (12-3.4)/. 010=860 ohms.

Can I use a resistor to lower ac voltage?

Sure, you can use a low ohmage resistor, a coil, or a capacitor in series, depending on the load.

What is the voltage drop across the 20.0 resistor?

The current will be equal to 6 amps through the 20 omras voltage difference or the voltage draw will be i, which is 6 multiplied by r, which is 20 on, so it will be 1 and 20 wolves, so the voltage dropped across the 20 home raise is 1 and 20 volt.

How do you reduce a 12v to 5V with a resistor?

12v to 5v converter using a voltage divider: You can run two LEDs in series across the resistor R2 while taking input from 12V lead-acid battery or a 12v adaptor as an input. Components required: One 12v battery, 1.8k resistor, 1.3k resistor, connecting wires. This circuit is a voltage divider schematic.

What is the voltage drop across the 10 resistor Brainly?

Voltage drop across 10 ohm -> Vr1 = 10 * i1 = 10 × 0.227 volts.

How do you calculate resistors?

If you know the total current and the voltage across the whole circuit, you can find the total resistance using Ohm's Law: R = V / I. For example, a parallel circuit has a voltage of 9 volts and total current of 3 amps. The total resistance RT = 9 volts / 3 amps = 3 Ω.

How do you reduce 24 volts to 12v?

A good solution is to use a DC/DC converter to convert the 24 volts to 12 volts. An automobile cigarette lighter socket, which is available at Radio Shack, makes a convenient 12 volt power point to wire the DC converter output to.

Does resistor cause voltage drop?

The larger the resistor, the more energy used by that resistor, and the bigger the voltage drop across that resistor. Ohm's Law can be used to verify voltage drop. In a DC circuit, voltage equals current multiplied by resistance.

What causes a voltage drop?

A voltage drop in an electrical circuit normally occurs when a current passes through the cable. It is related to the resistance or impedance to current flow with passive elements in the circuits including cables, contacts and connectors affecting the level of voltage drop.

What is the voltage drop across R1 in the given circuit?

Voltage drop across R1 = Total current*R1 = 34. Voltage drop across R3 = Source Voltage - Voltage drop across R1. = 46-34 = 12 V. It is very easy.

12 Voltage drop using resistor Images

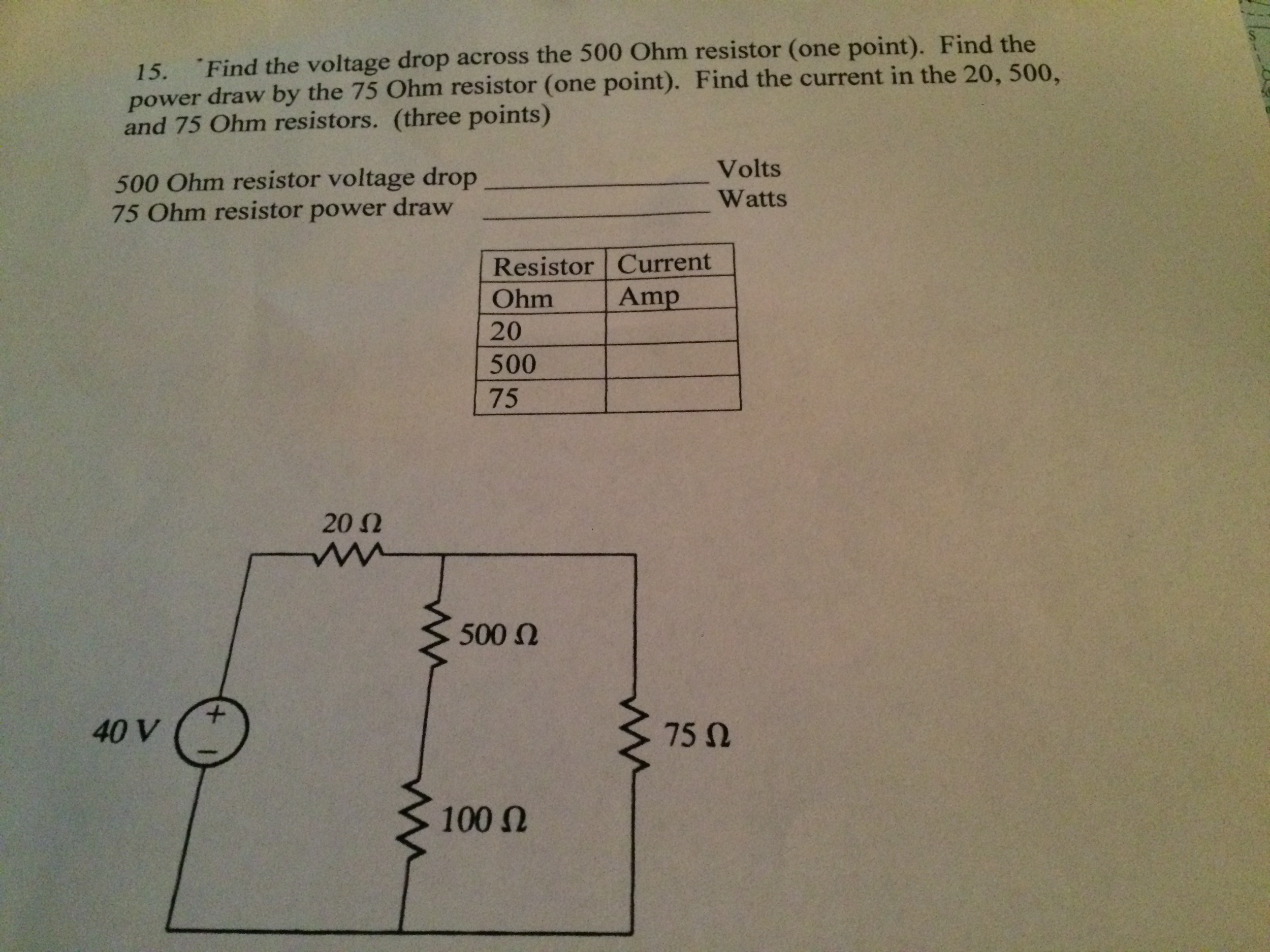

Solved Find The Voltage Drop Across The 500 Ohm Resistor Cheggcom
