Variable Resistor Function - How Does A Resistor Work?

Variable resistor function

If it is a conductor, the resistance to the flow of current is less and vice versa for an insulator. A Resistor works by using this natural property of resistivity/conductivity of any material. It absorbs energy from the flow of electrons (electric energy) and dissipates in the form of heat (thermal energy).

What is the function of carbon variable resistor?

A rheostat is a variable resistor that regulates current flow. They can change the resistance of a circuit without breaking it. A rheostat can be used as a variable resistor or a potential divider, among other things.

What are examples of variable resistors?

There are two basic types of variable resistors, one called a potentiometer and the other a rheostat. An example of the potentiometer is the volume control on your radio, and an example of the rheostat is the dimmer control for the dash lights in an automobile.

What are the three common types of variable resistors?

The different types of variable resistors include: Potentiometer. Rheostat. Thermistor.

How do you identify a variable resistor?

The variable resistor is represented by a zig-zag line and an arrow across (or above) it, like that shown in the figure below.

Is variable resistor called a rheostat?

A rheostat is a variable resistor which is used to control current. They are able to vary the resistance in a circuit without interruption. The construction is very similar to the construction of potentiometers. It uses only two connections, even when 3 terminals (as in a potentiometer) are present.

What are the 4 types of variable resistor?

Types of variable Resistors?

• Types of Variable Resistors. Potentiometer. A potentiometer is an ordinary variable resistor.
• Potentiometer Resistor. Rheostat.
• Rheostat Resistor. Digital Resistor.
• Digital Resistor. Presets.
• Presets Resistor. Variable Resistor Connection.

What is the difference between variable resistor and rheostat?

A rheostat is a variable resistor which is used to control current. They are able to vary the resistance in a circuit without interruption. It uses only two connections, even when 3 terminals (as in a potentiometer) are present.

What is the difference between resistor and variable resistor?

Variable resistor A resistor limits the passage of electrical current. A fixed resistor has a resistance that does not change. The resistance of this resistor is changed by moving the position of a slider. A variable resistor is used in some dimmer switches and volume controls.

What is the symbol and function of variable resistor?

A variable resistor also called an adjustable resistor, consists of two terminals, where one of the terminals is a sliding or moving contact often known as a wiper. The variable resistor IEC symbol is represented by a rectangular box and an arrow across (or above) it, like that shown in the figure below.

What variable is used for current?

Independent Variable is the electric current I. Dependent Variable is the voltage V.

Is a diode a variable resistor?

A diode can act as a resistor for small signal AC circuits. In fact, it can act as a variable resistor. The dynamic resistance of a diode depends on its forward bias. The resistance is for very small excursions above and below this bias point.

What is the function of variable rheostat?

A rheostat is a variable resistor. By changing the resistance you can control the current flowing through it. This can then be used to control downstream devices like transistors or lamps.

Is variable resistor active or passive?

Resistors are passive and widely used in circuits, they pass a fixed value of current for a constant voltage.

Is variable resistor a transistor?

Yes, a transistor is like a variable resistor, in that the resistance between collector-emitter or drain-source is variable. It's like a valve, and either allows current to flow or blocks it from flowing.

What are variable resistors made of?

Variable resistors consist of a resistance track with connections at both ends and a wiper which moves along the track as you turn the spindle. The track may be made from carbon, cermet (ceramic and metal mixture) or a coil of wire (for low resistances).

What are the 3 variables of a circuit?

The other three relationships are given by the axiomatic definition of the three fundamental circuit elements, namely, resistor ( , relation between voltage and current), capacitor ( , relation between charge and voltage), and inductor ( , relation between flux and current).

Where are variable resistors used in cars?

These variable resistors are ideal for automotive technicians diagnosing and testing sensors and monitored circuits. A number of sensors use resistance as the method to record the state of change of a vehicle component position etc. This has the effect of altering the signal voltage that is being sent to the ECU.

Where are variable resistors used in real life?

In-Circuit Functioning Many electrical devices in which current controlling is required such as changing the musical pitch of the tone, loudness of an amplifier, speed of the electric motors, uses variable resistors in them.

Where is resistor best used?

Resistors of all types are used in vast quantities in manufacturing electronic equipment. In fact the resistor is probably the most common type of electronic component used in electrical and electronic circuits. There is a large number of different types of resistor that can be bought and used.

10 Variable resistor function Images

Types of Resistors Fixed and Variable Resistors RS FinoTechs

Variable Resistor Learn The Basics Get The Most out of It

Variable Resistors Physics

How to Wire a Variable Resistor Sciencing

Solved In the circuit on the right the variable resistor r Cheggcom

What is the Function of a Resistor Functions Explained with Illustrations

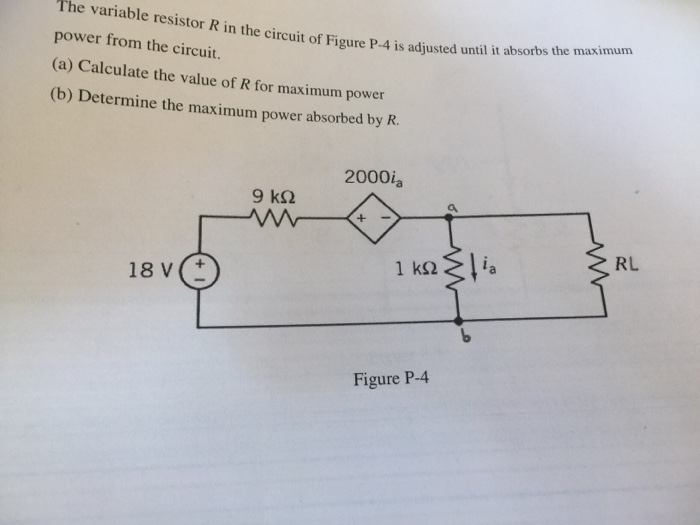

Solved The variable resistor R in the circuit of Figure P4 Cheggcom
