V Thevenin - What Is Rth In Thevenin's Theorem?

V thevenin

The equivalent resistance Rth is the resistance that the circuit between terminals A and B would have if all ideal voltage sources in the circuit were replaced by a short circuit and all ideal current sources were replaced by an open circuit.

What is Thevenins voltage?

As there is no current flowing through the 8 kΩ resistor, so there is no voltage drop across it and hence the voltage across the terminals AB is same as the voltage across the 4 kΩ resistor. Therefore, 12 V will appear across the AB terminals. Hence, the Thevenin's voltage, VTH = 12 V.

How do you solve the Thevenin and Norton equivalent circuit?

Thevenin and Norton's resistances are equal. Thevenin voltage is equal to Norton's current times Norton resistance. Norton current is equal to Thevenin voltage divided by Thevenin resistance.

What affects threshold voltage?

Threshold voltage depends on different parameters like doping concentration, surface potential, channel length, oxide thickness, temperature etc. Threshold voltage also depends on random dopant fluctuation.

How does threshold voltage work?

A threshold voltage is normally constructed with a thin inversion layer that separates the insulating and the actual body of a transistor. Tiny holes that are positively-charged cover the surface of this region, and when electricity is applied, the particles within these voids are repelled.

What is the resistance of 2 resistors in parallel?

Two identical resistors in parallel have an equivalent resistance half the value of either resistor.

What is Thevenin theorem with example?

Network theorem that is used for reducing a large, complex linear electric circuit that consists of several voltages or/and current sources and several resistances into a small, simple electric circuit with one voltage source with one series resistance connected across it is termed as thevenins theorem.

Why Thevenin theorem is not applicable to nonlinear circuits?

The fact is that in the DC circuit we use Thevenin equivalent resistance, but in AC we have to find the equivalent Impedance. In the AC network, we have to use the phasor sum of the voltage sources. All other conditions are similar to the DC source. Thevenin's theorem cannot be applied to non-linear circuits.

What is VTH and RTH?

The Thevenin voltage VTH is defined as the open-circuit voltage between nodes a and b. RTH is the total resistance appearing between a and b when all sources are deactivated.

What is VTH equal to?

The Thévenin equivalent voltage is equal to this open circuit voltage: VTh = VAB. (b) If the circuit does not contain any dependent voltage sources or dependent current sources, calculate the equivalent resistance between terminal A and terminal B. RTh is equal to this equivalent resistance.

What is the Vth value for the MOSFET?

What is the typical value of the threshold voltage for an n-type MOSFET? Between 0.7 V and 1 V . This is the typical value for the threshold voltage of a 5 V logic n-type enhancement-mode MOSFET. Any input voltage below this value will keep the MOSFET off, while any input higher than this will turn the MOSFET on.

What is Norton's current?

The Norton equivalent circuit represents a general circuit with an independent current source in parallel with the Norton equivalent Resistance. Norton current source ( ) is equivalent to the short-circuit current at the terminal a and b. Norton resistance is th e same as the Thévenin resistance.

How do you calculate V Thevenin?

To calculate the Thevenin equivalent voltage, the load impedance is open-circuited. And find an open-circuit voltage across the load terminals. Thevenin equivalent voltage (Veq) is equal to the open-circuit voltage measured across two terminals of load.

How do you master Thevenin theorem?

When we apply Thevenin's Theorem, we:

1. Remove or imagine that we remove the load.
2. Identify the terminals for polarity identification.
3. Calculate the open circuit voltage.
4. Calculate the Thevenin resistance as it looks back into the network.
5. Remove the independent sources but leave the internal resistances in place.

Why is Thevenin Theorem used?

Thevenin's Theorem provides an easy method for analyzing power circuits, which typically have a load that changes value during the analysis process. This theorem provides an efficient way to calculate the voltage and current flowing across a load without having to recalculate your entire circuit over again.

What is Thevenin formula?

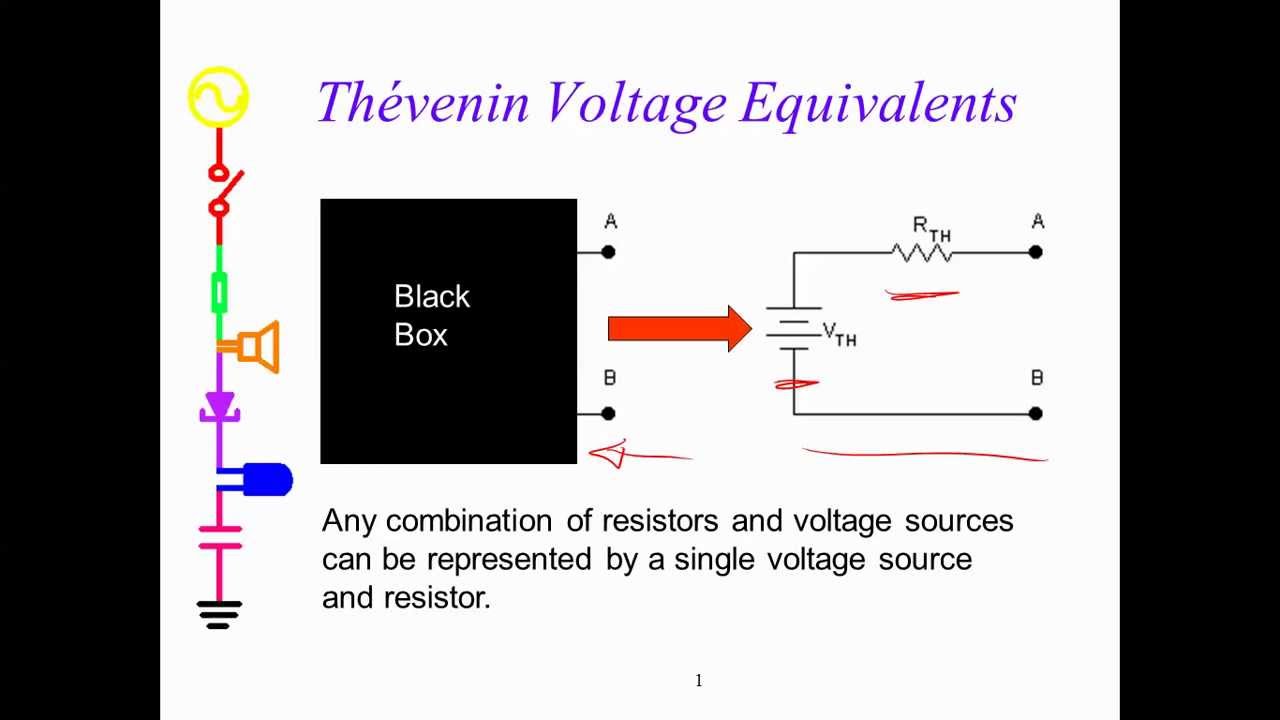

Any combination of batteries and resistances with two terminals can be replaced by a single voltage source e and a single series resistor r. The value of e is the open circuit voltage at the terminals, and the value of r is e divided by the current with the terminals short circuited.

What are the limitations of Thevenin's and Norton's theorem?

Limitations of Norton's Theorem This formula is appropriate for the linear modules like resistors. It's not for such modules which are not linear like diodes, the transistor. It also not operate for such circuitries which has magnetic locking.

What is the Thevenin equivalent VTH and RTH for the circuit given?

Vth = 6.3V. Rth = (470+220)//(680+560). Rth = 443 ohm. So, option 1 is right.

What is Thévenin's equivalent resistance?

4 Thevenin's Theorem. Thevenin's Theorem is a technique that allows us to convert a circuit (often a complex circuit) into a simple equivalent circuit. The equivalent circuit consists of a constant voltage source and a single series resistor called the Thevenin voltage and Thevenin resistance, respectively.

How do you find the RTH value?

So since we have B th now we are in a position to find out rth in the next slide we will see how to
