Upper Cutoff Frequency - Why 3dB Is Cut-off?

Upper cutoff frequency

It's because decibels are logarithmic, and the log (base 10) of 3 is about 50% power. So the 3 decibel cutoff is where power drops off by a half. 3 dB implies 1/2 the power and since the power is proportional to the square of voltage, the voltage will be 0,707 of the pass band voltage.

How is frequency related to decibels?

Decibels measure sound intensity (amplitude) Frequency, reported in Hertz (Hz), measures the number of sound vibrations in one second. In daily life, this corresponds to how low- or high-pitched something is. A child's voice is high frequency, for example.

How do you calculate dB?

How to Make Noise Calculations with Decibels

1. Comparing Sound Power and Sound Pressure.
2. The dB Pressure Scale.
3. Comparing Two Pumps for Noise.
4. dB power = dB pressure + 20 log distance (feet) - 2.5 dB.
5. Solution: dB power = 87 + [20 × 0.954] - 2.5 = 103.58 dB.
6. dB pressure = dB power - 20 log distance (feet) + 2.5 dB.

What is 3dB frequency in low-pass filter?

The low frequencies keep most of their strength. The high frequencies are reduced. At a certain frequency, called f3db, the filtered strength of the frequency is exactly 3 decibels less than the original (or, about 70%). So, if we know what frequencies we wish to filter out, we can choose an f3db accordingly.

What is cutoff frequency in low-pass filter?

The cutoff frequency for a low-pass filter is that frequency at which the output (load) voltage equals 70.7% of the input (source) voltage. Above the cutoff frequency, the output voltage is lower than 70.7% of the input, and vice versa.

How do you calculate the cutoff frequency of a high pass filter?

The cut-off frequency, corner frequency or -3dB point of a high pass filter can be found using the standard formula of: ƒc = 1/(2πRC). The phase angle of the resulting output signal at ƒc is +45o.

Why does high frequency decrease voltage gain?

As the frequency increases, the capacitive reactance becomes smaller. This cause the signal voltage at the base to decrease, so the amplifier's voltage gain decreases.

What is 3dB in percentage?

Every 3dB of attenuation causes a 50% signal power loss through the cable.

Is 20 dB twice as loud as 10dB?

Sounds May Be Louder Than What You Hear It is measured in decibels (dB). The decibel scale is logarithmic, which means that loudness is not directly proportional to sound intensity. Instead, the intensity of a sound grows very fast. This means that a sound at 20 dB is 10 times more intense than a sound at 10 dB.

What is lower cutoff frequency of amplifier?

3dB less than at midrange is called the lower cutoff frequency. the overall voltage gain also continues to decrease. The decrease in voltage gain with frequency is called roll-off. there is a 20dB reduction in voltage gain.

How does frequency affect amplifier?

Amplifiers do not have the same gain at all frequencies. For example, an amplifier designed for audio frequency amplification will amplify signals with a frequency of less than about 20kHz but will not amplify signals having higher frequencies.

What is upper 3dB cutoff frequency?

This is generally considered the point for determining the filter's bandwidth. The bandwidth is defined as the difference between the upper and lower 3dB points. For example, if you have a filter which has a lower 3dB point of 720 MHz, and an upper 3dB point of 730 MHz, you have a bandwidth of 10 MHz.

How do you find the cutoff frequency of a transfer function?

You need to algebraically solve for the magnitude of the H(f) for the given tranfer function, and solve for f such that |H(f)| = 1/2*Hmax. Very frequently Hmax = 1, and thus you need to solve for f such that |H(f)| = 1/2, and that is the cutoff frequency.

Is 3dB or 6dB double?

6dB also equates to a doubling (or halving) of the range. - Think inverse square rule. So for example, if you wanted to double the outdoor range of your point-to-point (PtP) link, you would need to increase your gain by a factor of 6 dB.

What is cutoff frequency formula?

The cutoff frequency is defined as the frequency where the amplitude of H(jω) is 1√2 times the DC amplitude (approximately -3dB, half power point). Solve it for ωc (cutoff angular frequency), you'll get 1RC. Divide that by 2π and you get the cutoff frequency fc.

What do you mean by 3 dB frequencies?

The half-power or 3-dB bandwidth is the width of the range of positive frequencies where a peak value at zero or infinite frequency (low-pass and high-pass signals) or at a center frequency (bandpass signals) is attenuated to 0.707 the value at the peak.

How do you calculate 3dB cutoff frequency?

This -3dB cutoff frequency calculator calculates the -3dB cutoff point of the frequency response of a circuit, according to the formula, fC=1/(2πRC).

What is the value of voltage gain at at 3 dB cutoff frequency?

3dB cut-off frequency is the frequency at which the power becomes half of its maximum value. That is the voltage gain becomes 0.707 times maximum voltage gain. The importance of 3dB points is that for a human ear, it will not notice the fall in power of the signal up to 50% of maximum power. 100 x 0.707 = 70.7.

Is LCR and RLC circuit same?

Is there a difference between RLC circuit and LCR circuit? There is no difference between an RLC circuit and an LCR circuit except for the order of the symbol represented in the circuit diagram.

What is the difference between HPF and LPF?

Low pass filter: Low pass filter is the type of frequency domain filter that is used for smoothing the image. It attenuates the high frequency components and preserves the low frequency components. High pass filter: High pass filter is the type of frequency domain filter that is used for sharpening the image.

10 Upper cutoff frequency Images

Lowpass Filters Filters Electronics Textbook

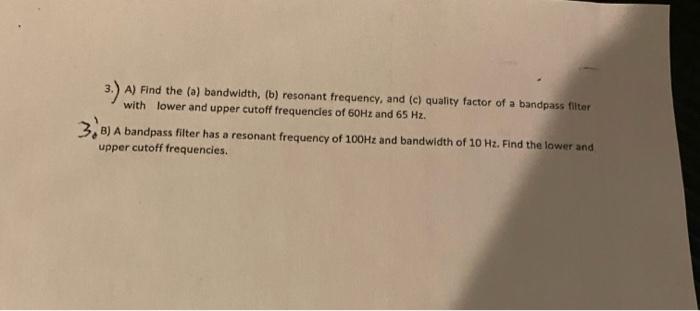

Solved 3 A Find the bandwidth b resonant Cheggcom

Center frequency of bandpass filter Spegel med belysning

Figure 22DFrequency response curves

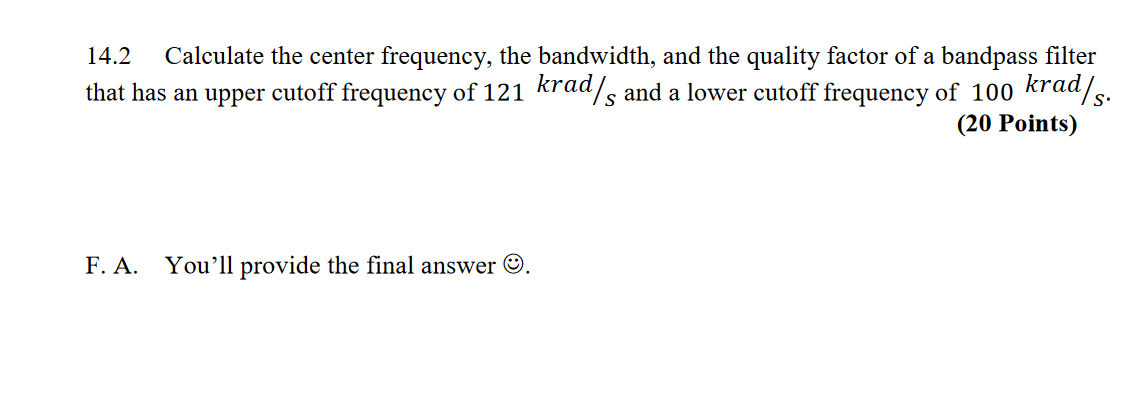

Solved 142 Calculate the center frequency the bandwidth Cheggcom
