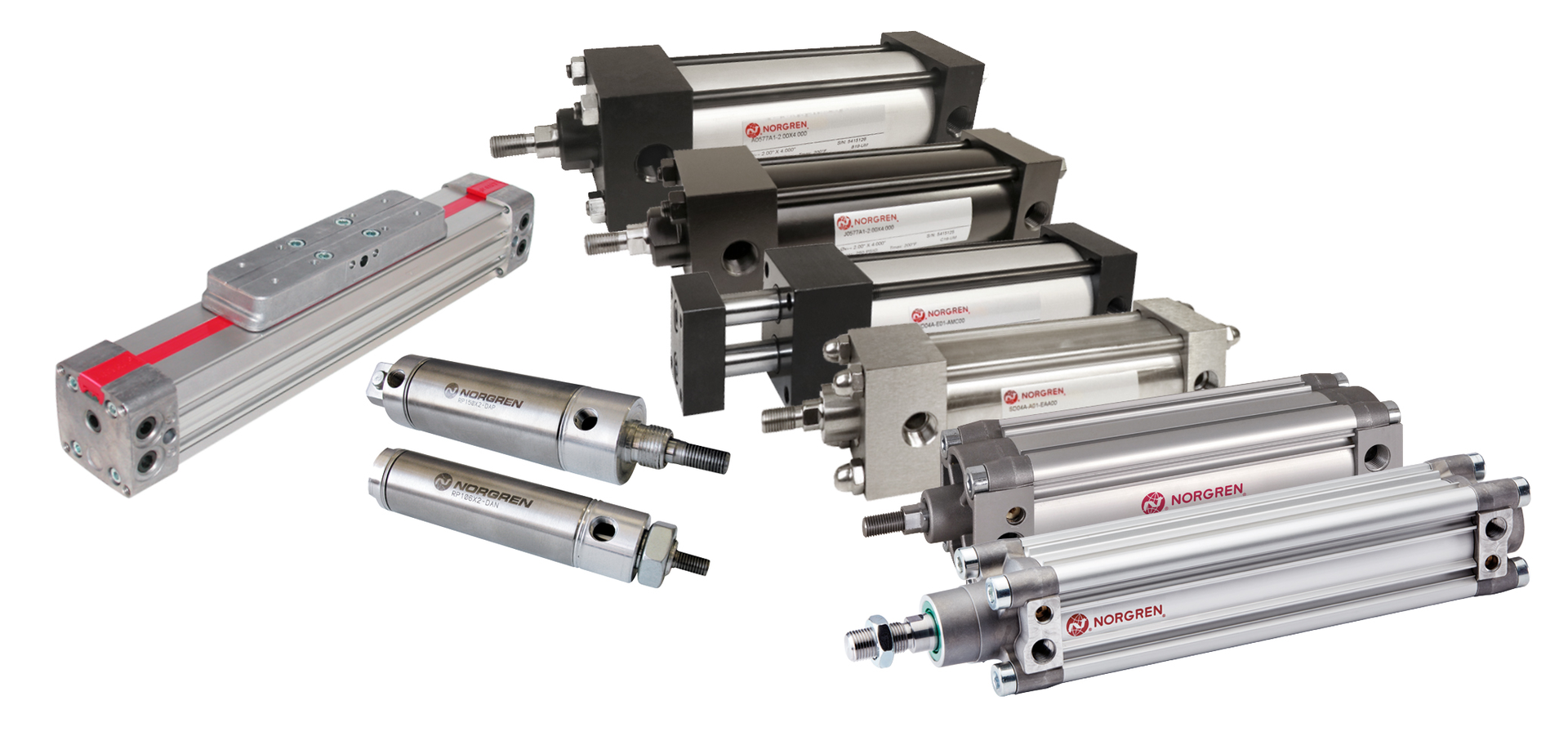

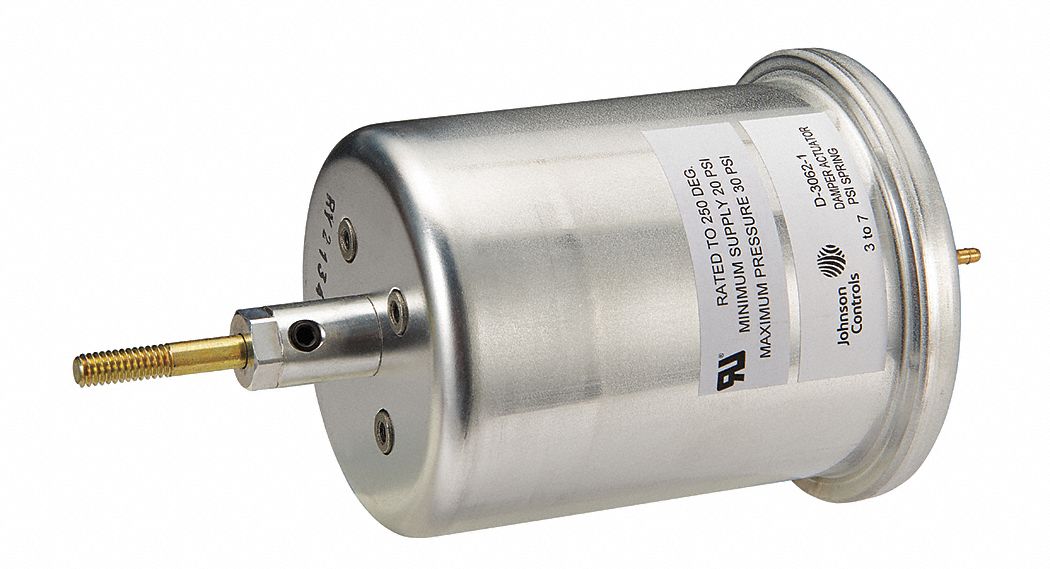

Types of pneumatic actuator

Servo motor This is an actuator that uses electricity as energy.

What are the types of pneumatics?

There are three main types of pneumatic cylinders, these include: Single acting pneumatic cylinders. Double acting pneumatic cylinders. Telescoping pneumatic cylinders.

How does a pneumatic actuator work?

Pneumatic actuators generate operating energy through the efficient use of compressed air. The instrument air builds up force or pressure which applies against the diaphragm or piston. This then moves the valve actuator to position on the valve stem and the result is mechanical motion.

What are 5 examples of pneumatic systems?

Examples of pneumatic systems and components

Air brakes on buses and trucks.
Air brakes on trains.
Air compressors.
Air engines for pneumatically powered vehicles.
Barostat systems used in neurogastroenterology and for researching electricity.
Cable jetting, a way to install cables in ducts.
Dental drill.

What are the 3 types of actuator?

The three main types of actuators are pneumatic (air pressure), hydraulic (fluid pressure) and electric.

Pneumatic Actuators.
Hydraulic Actuators.
Electric Actuators.
Example of Actuator Use: Gripping.

What is pneumatic actuators PDF?

Pneumatic actuators are the devices used for converting pressure energy of compressed air into the mechanical energy to perform useful work. In other words, Actuators are used to perform the task of exerting the required force at the end of the stroke or used to create displacement by the movement of the piston.

What is actuator in pneumatic system?

Pneumatic actuators are devices that convert the energy of compressed air or gas into a mechanical motion that regulates one or more final control elements. Pneumatic actuators are devices that convert the energy of compressed air or gas into a mechanical motion that regulates one or more final control elements.

How do you control a pneumatic actuator?

If you are looking to control the speed of the pneumatic actuator in your application, the most effective way is to use a speed control valve or flow control valve to vary the amount of flow out of the exhaust port of the actuator.

Why pneumatic is better than hydraulic?

Pneumatics are cheaper than hydraulic systems because air is inexpensive, plentiful, easy to obtain, and store. Pneumatic systems generally have long operating lives and require little maintenance because gas is compressible, and the equipment is less subject to shock damage.

What is another name for an actuator?

control	controller
instrument panel	knob
lever	mechanism
switch	brake
device	governor

What are 3 advantages of pneumatics?

The Joy Of Pneumatic Design

1) Safety.
2) Source Availability.
3) Ease of Cleaning.
4) Cost.
5) Low Maintenance.
6) Keeps Working through Momentary Power Outages.
7) Great Power-to-Weight Ratio.
8) Quiet Operation.

What are the three types of pneumatic actuators?

There are several basic types of pneumatic actuator: spring/diaphragm, piston, and rotary vane.

What are disadvantages of pneumatic?

CONS: Control and Speed- Air is a compressible gas, which makes control and speed in a pneumatic system more difficult, in comparison to electric or hydraulic systems. When specific speeds are needed, additional devices have to be attached to the pneumatic system in order to procure the desired result.

What are the different type of actuator?

What Are Some Different Types of Actuators?

Linear Actuators. Implied by their name, linear actuators are devices that produce movement within a straight path.
Rotary Actuators.
Hydraulic Actuators.
Pneumatic Actuators.
Electric Actuators.
Thermal and Magnetic Actuators.
Mechanical Actuators.
Supercoiled Polymer Actuators.

Are the types of actuators *?

Actuators are largely classified by the type of motion they create and what type of power source they operate on. In terms of the latter, actuators create either linear or rotary motion. Linear actuators create motion in a straight line, while rotary actuators create motion in a circular or rotational fashion.

What are the 7 components of a pneumatic system?

Main Components of a Pneumatic System

All pneumatic systems use compressed air to operate and move parts or actuators.
Here are the common parts of a pneumatic system:
Check Valves.
Compressor.
Regulators and gauges.
Accumulator or buffer tank.
Feed lines.
Actuators.

Is a pneumatic cylinder An actuator?

By definition, a pneumatic actuator is a device that converts energy typically in the form of compressed air into mechanical motion. Within the industry, pneumatic actuators are recognised by several different names including pneumatic cylinders, air cylinders, and air actuators; all of which are one and the same.

How do I choose a pneumatic actuator?

Features to Consider When Choosing a Pneumatic Actuator

Whether the actuator is double acting/single acting or three position.
Actuators with 120-degree and 180 degree rotation.
If it is a hygienic process, choosing the appropriate actuator.
Actuator torque value at P=6 bar Nm output.

Why do we use pneumatics?

Pneumatic systems can be used as an alternative to electric actuators and motors by driving linear and rotary motion applications. It is generally used with smaller loads as pneumatic systems produce less force than hydraulic systems and as air is easy to compress, pneumatics can absorb excessive shock.

Is servo motor An actuator?

A servomotor (or servo motor) is a rotary actuator or linear actuator that allows for precise control of angular or linear position, velocity and acceleration. It consists of a suitable motor coupled to a sensor for position feedback.
