Types of operational amplifier

There are two types of op-amps: single power supply type and dual power supply type. In the case of a single-supply op-amp, VCC is positive with respect to GND. In the case of a dual-supply op-amp, VCC is positive and VEE is negative with respect to GND.

What are the 3 types of amplifiers?

Amplifier is an electronic device which amplifies the input power of the signal.
The types of the amplifier are: 2.1 Voltage amplifier: The voltage amplifier increase the input voltage. 2.2 Current amplifier: Current amplifier increase the input current. 2.3 Power amplifier: A power amplifier increase the input power.

What are the 3 op-amp rules?

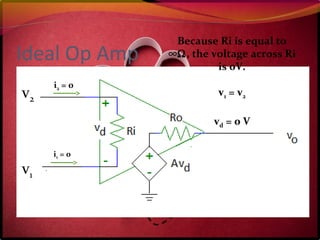

Here are the golden rules of operational amplifiers:

1) Infinite Open Loop Gain.
2) No current flowing through both of the Inputs.
3) Potential Difference between input pins is ZERO.

Is an amp AC or DC?

Amplifiers themselves do use DC power, but AC is used for the signal from the amp to the speaker.

Is op-amp passive or active?

OPAMP (operational amplifier), BJT, JFET (transistors), it is called active devices, because of its ability to manipulate and maintain voltage or constant current (within specified operating ranges, unlike the ideal elements).

What is the symbol of op-amp?

The symbol for an operational amplifier is a triangle that has two inputs and a single output.

What is amplifier and its types?

An amplifier is an electronic device that increases the voltage, current, or power of a signal. Amplifiers are used in wireless communications and broadcasting, and in audio equipment of all kinds. They can be categorized as either weak-signal amplifiers or power amplifiers.

What is the purpose of using 3 op amps?

A three-op amp in-amp is a commonly-used structure that can amplify the differential signal while stripping off any common-mode voltage. An advantage of this circuit is that a single resistor that doesn't need to be matched with any other resistor in the circuit determines the gain.

Why is it called operational amplifier?

An operational amplifier (op-amp) is an integrated circuit (IC) that amplifies the difference in voltage between two inputs. It is so named because it can be configured to perform arithmetic operations.

What is a single stage amp?

When only one transistor with associated circuitry is used for amplifying a weak signal, the circuit is known as single-stage amplifier.

What is a 3 stage amplifier?

In three stage amplifier the first stage consists of a differential amplifier,second stage consists of a coupling device as a combination of diodes and third stage uses a current limiter. The three stages are: First stage-Differential amplifier, Second stage-Combination of diodes, Third stage-Current limiter.

What is slew rate?

Slew rate is defined as the maximum rate of change of an op amps output voltage, and is given in units of volts per microsecond. Slew rate is measured by applying a large signal step, such as one volt, to the input of the op amp, and measuring the rate of change from 10% to 90% of the output signal's amplitude.

What is the principle of amplifier?

The amplifier principle is to generate an output signal that is a replica of the input signal with an increased higher magnitude. Note: Amplifiers strengthen or boost the weak signal without changing any input or information. Negative feedback is used in amplifiers.

What are DC and AC amplifiers?

Electronic signal amplifiers come in two basic types: those that can amplify a steady voltage (DC) and those that block DC but amplify audio and higher frequencies. AC amplifiers reject noise more easily, while DC amplifiers have better low-frequency response.

Which type of amplifier is operational amplifier?

An operational amplifier (op amp) is an analog circuit block that takes a differential voltage input and produces a single-ended voltage output. Op amps usually have three terminals: two high-impedance inputs and a low-impedance output port.

What is special type of amplifier?

Operational Amplifiers (Op-Amps): Another very important type, an op-amp is an integrated circuit that acts as a voltage amplifier, and has differential input. It has a positive and negative input, but a single output with very high gain. Originally, op-amps were created using valves.

What are the advantages of op amp?

Advantages: increased circuit stability, ▪ increased input impedance, ▪ decreased output impedance, increased frequency bandwidth at constant gain.

What are the 4 stages of op-amp?

There are four basic sections: bias, 2:1, gain and buffer (Figure 2). These four stages can be combined in some op amp devices, but the four functions are fundamental. The bias section provides all of the voltages and currents needed by the other 3 sections.

What is the name of operational amplifier?

The operational amplifier will work as long as the input signal is within this range.An operational amplifier whose common-mode input voltage range covers VSS – VDD is called a “Rail-to-Rail input operational amplifier”; that is, an operational amplifier with an excellent input signal voltage range.

What are the 5 classes of amplifier?

Amplifier Class	Description	Conduction Angle
Class-B	Half cycle 180^o of Conduction	θ = π
Class-AB	Slightly more than 180^o of conduction	π < θ < 2π
Class-C	Slightly less than 180^o of conduction	θ < π
Class-D to T	ON-OFF non-linear switching	θ = 0
