Rlc circuits calculator

This calculates the capacitance of a capacitor based on its charge, Q, and its voltage, V, according to the formula, C=Q/V.

What is resonant frequency formula?

Therefore, the resonant frequency can be derived by expressing the equal value of both capacitive and inductive reactance as follows: XL = X. 2ℼfL = 1/ (2ℼfC) fr = 1/ (2ℼ √LC)

What is unit of XC?

The unit of Capacitive Reactance Xc is Ohm.

How do you calculate RLC circuit impedance?

So the formula to calculate the impedance in a parallel rlc circuit is going to be 1 divided by the

How is XC calculated?

Capacitive reactance is defined as:(10-1)Xc=1/ωC=1/2πfCwhere XC is the capacitive reactance, ω is the angular frequency, f is the frequency in Hertz, and C is the capacitance.

What are the different techniques used in solving RLC circuits?

The RLC will be analyzed in order to determine its transient characteristics once the switch is closed. Equation (3) is solved using three numerical methods namely Euler's method, Heun method and Runge-Kutta method.

What is Q factor formula?

The Q factor of the pMUT can be determined by the real part of the impedance frequency spectrum, which is defined as Q = fr/Δf, where the resonance frequency fr is the frequency at which the real part of the impedance reaches its maximum, Δf is the width of the peak at its half height, so-called 3 dB bandwidth.

How do you calculate XC and XL?

XL is called as inductive reactence and Xc is called as capacitive reactence. and the formulae[ XL = 2∏fL, XC = 1/2∏fC ] is given in that website.

How do you convert XC to C?

Similarly for XC = 1 / (2 x pi x f x C) first take the reciprocal of both sides: 1 / XC = (2 x pi x f x C). Now divide both sides of the equation by (2 x pi x f) to leave C = 1 / ( XC x 2 x pi x f).

How do I calculate C?

The heat capacity of the calorimeter, Ccal, is determined by dividing qcal by the temperature change.

What is Q factor in RLC circuit?

The quality factor is a ratio of resonant frequency to bandwidth. It relates the maximum or peak energy stored in the circuit (the reactance) to the energy dissipated (the resistance) during each cycle of oscillation. The higher the circuit Q, the smaller the bandwidth.

How do you solve RLC circuit problems?

Effects of series resonance

1. X_L = X_C,thus ω₀ = 1/√LC.
2. Z_R = R = Minimum.
3. Circuit current at resonance, I_r = V/R =Maximum.
4. Circuit power factor is unity. Hence, circuit is purely resistive.
5. The voltage across inductor and capacitor being equal, i.e. V_L= V_C.

What is first order RLC circuit?

First-order circuits contain a resistor and only one type of storage element, either an inductor or a capacitor, i.e. RL or RC circuits. For a step voltage/current source input, the output can be expressed as. Where, is the circuit response at , and is the response at .

Why do we use RLC circuits?

RLC circuits have countless applications outside of being filters. For example, RLC circuits are used for voltage magnification and parallel RLC circuits can be used for current magnification. Another use for RLC circuits is in induction heating.

Is LCR and RLC circuit same?

Is there a difference between RLC circuit and LCR circuit? There is no difference between an RLC circuit and an LCR circuit except for the order of the symbol represented in the circuit diagram.

What is Q value in circuit?

The Q value is a parameter that indicates the quality of an inductor. "Q" stands for "Quality Factor". Coils easily pass direct current but act as a resistor to alternating current. This behavior is called inductive reactance. The higher the frequency of the alternating current, the higher the inductive reactance.

How do you calculate +C?

And squared so negative 2 divi or negative 20 divided by 2 is negative 10 negative 10 squared is 100

What devices use RLC circuits?

Medical devices, mobile phones, computers, FM radios, and TVs are just a few examples that use different forms of RLC circuits.

How do you calculate Q factor in LCR?

Q = Pstored/Pdissipated = I2X/I2R Q = X/R where: X = Capacitive or Inductive reactance at resonance R = Series resistance. This formula is applicable to series resonant circuits, and also parallel resonant circuits if the resistance is in series with the inductor.

How do you calculate resonant frequency in RLC?

f0=12π√LC f 0 = 1 2 π L C , where f0 is the resonant frequency of an RLC series circuit. This is also the natural frequency at which the circuit would oscillate if not driven by the voltage source. At f0, the effects of the inductor and capacitor cancel, so that Z = R, and Irms is a maximum.

13 Rlc circuits calculator Images

Solved RLC circuit basic measurement For circuits a Cheggcom

Combined Series And Parallel Rlc Circuits Wiring View and Schematics

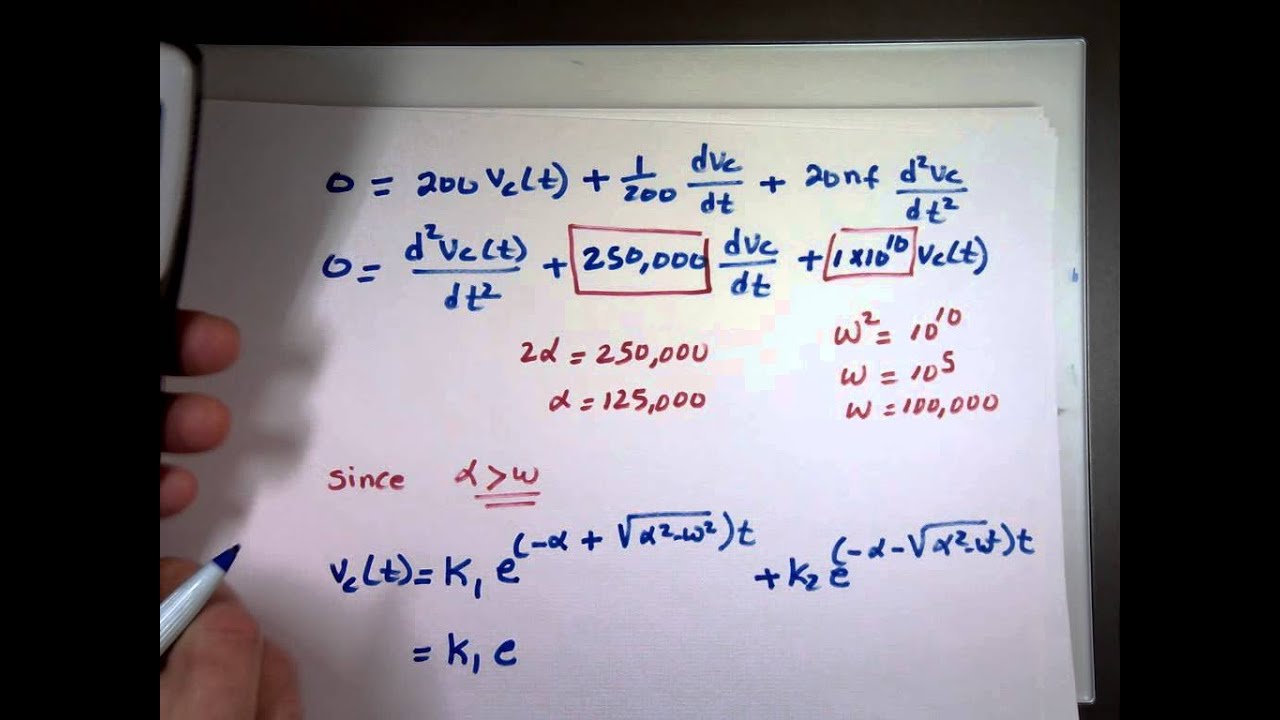

RLC Circuit Example YouTube

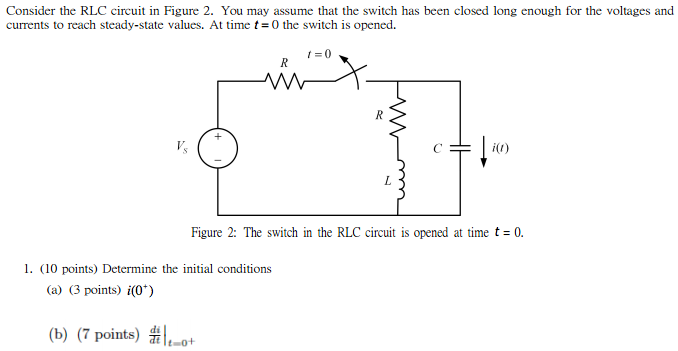

Solved Consider the RLC circuit in Figure 2 You may assume Cheggcom
