Replacing a 3 way lamp socket

To replace the socket, remove the setscrew at its base. Then, use a screwdriver to pry the socket shell from the base cap. Simply wedge the screwdriver into the seam between the two pieces and gently pry.

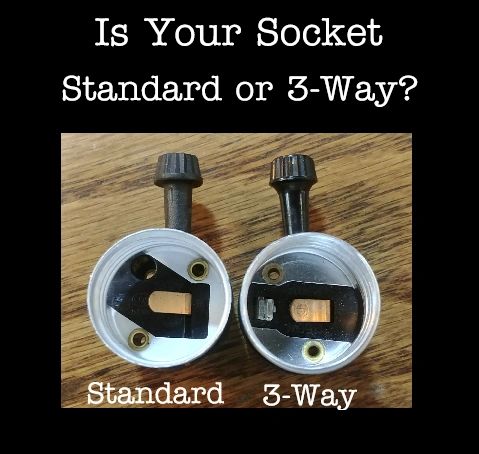

How can you tell if a socket is 3 way?

Three-way sockets look very similar. The difference is that next to the metal tab at the bottom, there's a third contact—a bit smaller than the metal tab and set slightly off center. That extra contact matches a small ring-shaped contact on the bottom of a three-way fluorescent bulb.

Can you put a regular bulb in a three way lamp?

In summary, you can use pretty much any type of regular bulb with any wattage in your 3-way lamp. You just won't be able to adjust the lighting beyond whatever the standard brightness is for the bulb.

How do you rewire a multi socket lamp?

Twist the ends of the black wires together clockwise to prevent fraying. Wrap the positive wire clockwise around the brass or positive screw terminal of the light socket. Wrap the negative or neutral wire clockwise around the silver or negative terminal screw. Tighten the screws with a screwdriver.

How do I know what type of light socket I have?

The most common light bulb sockets are the E14 and E27, the number is being based on the diameter (in mm) of the bulb thread. The identification 'E' refers to the Edison rotary thread, which is simply screwed into the corresponding fitting.

How do you remove an old light socket?

Remove the socket. Loosen the socket's terminal screws — the ones holding the wires in place — and detach the cord. Make sure the cord is tied in a knot to keep it from being pulled out at its base. Next, unscrew the socket cap set screw, discarding it, the socket shell and the old socket.

How much does it cost to replace a lamp socket?

How much will a lamp repair shop near me charge to fix a cord or socket? A fix-it shop can easily replace a lamp cord or socket, charging around $30 to $50.

How do you rewire a lamp switch?

Squeeze the socket shell to remove it from the lamp base, then cut the wires attached to the old switch. Carefully strip about 1/2 an inch of insulation off of the wires, then reconnect the wires to the new switch. Place the new socket shell into the lamp and snap it into place. Plug in your lamp and you're done!

How do you rewire a lamp socket?

How to Rewire a Lamp

1. Before starting, make sure lamp is not plugged in.
2. Cut Old Wires.
3. Pull the socket up and use the wire cutter to cut/disconnect the old wires.
4. Install New Lamp Cord.
5. Feed the new cord from the lamp kit through the hole in the bottom of the lamp until it comes out at the top, and attach new socket.

Can I use a regular LED bulb in a 3-way lamp?

Bulbs will work without any problem. Bulbs will fit without any problem (as long as they are standard bulb base size). A three-way lamp can handle high wattages (range of options for wattage of bulbs). LED bulbs can be used (high lumens, low wattage).

Does it matter which wire goes where on a lamp?

Always wire hot, neutral and ground to the proper terminals. In the typical lamp, the hot is the contact in the center bottom of the socket. The neutral is the bevel wall the build screws into. The ground is to the metal lamp body.

Do I need an electrician to replace a light switch?

Do I need an electrician to replace a light switch? No. If you're replacing a broken light switch or a like-for-like one, it's a simple task that only requires you to know how to safely isolate the circuit and some basic tools.

How do I know which wire is neutral on a lamp?

And one blade is wide the narrow blade is hot and the wide blade is neutral the insulation on the

What does a three-way lamp socket look like?

Instead what you have is a three-way socket interior the way you can tell is if you look inside you

Which wire is hot on a lamp cord?

Look at the colors of the wires in your lamp. If there are three wires, the wire with black insulation is hot. If you have four, then the black and red wires are both hot.

Why did my 3 way lamp stop working?

With a 3-way bulb, if it isn't working at all, it's probably dead. You can test it by moving it to a working 3-way socket, but it's very rare that both elements of a 3-way bulb will fail at the same time. But if part of it is coming on and the other part isn't, the problem may be with the socket.

How do you remove a 3 way socket?

Start by unplugging the lamp, unscrewing the bulb and removing the harp or bracket that holds the lampshade. To remove the socket itself, look for the word, press on the side. Push on that with your thumb and pop it off. Loosen the terminal screws and remove the wires from the old socket.

Should you rewire an old lamp?

Depending on the age of the lamp, you may have to bring in new wires too. This is because different bulbs may have different wiring systems and if the existing system does not perfectly fit in then you will have to rewire your antique lamp as well. Electrical faults do and can occur at any given time.

How do I know what bulb socket I have?

The first letter designates the shape or form of the base, and the number represents the width of the base (normally in millimeters). For example, our 11S14 bulb has an E26 base — the "E" refers to the style which is an Edison screw-in, and the 26 means it has a 26 mm base width.

How do you wire a 3 way socket?

And now to connect the new three-way socket I know that my ribbed side is the neutral and so that's
