Otdr Fiber - Why Is DB In Negative?

Otdr fiber

The negative sign on a dB (logrithmic) comparison means that the mesurement was less than the reference where a positive sign means it was more than the reference. So the only way to convert a negative dB indication is to change the reference. For example -2 dBm would be +1 dBu.

What is OTDR in fiber optics?

An Optical Time Domain Reflectometer (OTDR) is a device that tests the integrity of a fiber cable and is used for the building, certifying, maintaining, and troubleshooting fiber optic systems.

What is OTDR fiber testing?

What is an OTDR? It is a fiber optic instrument used to characterize, troubleshoot and maintain optical telecommunication networks. OTDR testing is performed by transmitting and analyzing pulsed laser light traveling through an optical fiber.

What is the maximum distance for fiber cable?

What is the maximum distance of fiber optic cable? Although the maximum distance of fiber optic cable is affected by both attenuation and dispersion, for most applications, the maximum distance of any type of fiber optic cable is around 62.14 miles (100 kilometers).

What are the 2 types of fiber optic cable?

There are two types of fibre optic cables – multimode and single-mode. Multimode optical fibre or OFC is capable of carrying multiple light rays (modes) at the same time as it has varying optical properties at the core. Single-mode fibre has a much smaller core size (9 microns).

What is dB formula?

Thus the formula becomes. Decibels (dB) = 10 log(P2/P1) With the constant almost always included in modern terminology and power referred to as a “ten log” function. In this equation, P1 is usually the reference power. If P2 is less than P1, the ratio is less then 1.0 and the resultant (exponent) value is negative.

How does OTDR measure distance?

Measuring Distances The OTDR uses a system rather like a radar set. It sends out a pulse of light and 'listens' for echoes from the fiber. If it knows the speed of light and can measure the time taken for the light to travel along the fiber, it is an easy job to calculate the length of the fiber.

What is an acceptable dB loss on fiber?

For singlemode fiber, the loss is about 0.5 dB per km for 1310 nm sources, 0.4 dB per km for 1550 nm.

How do I know if my fiber is single-mode or multimode?

A: Apart from the Bale Clasp color coding, single-mode and multimode fiber cables can also be identified by the color of the patch cord. In single-mode optical fiber cable, the patch cord is in yellow color; and in multimode fiber cable, the patch cord comes in orange color.

What is a good dB range?

Sounds at or below 70 dB are considered safe for our hearing. That's the sound of a normal conversation between two people. Sounds at 80 or 85 dB will damage hearing over time.

What is a Tier 1 test?

Tier-1 certification explained Tier-1 is a simple and accurate way of determining whether a fibre optic link will support an application or not. The resulting insertion loss measurement can be compared to a specification or standard to provide a pass/fail status of each link for its intended use.

What does an OTDR measure?

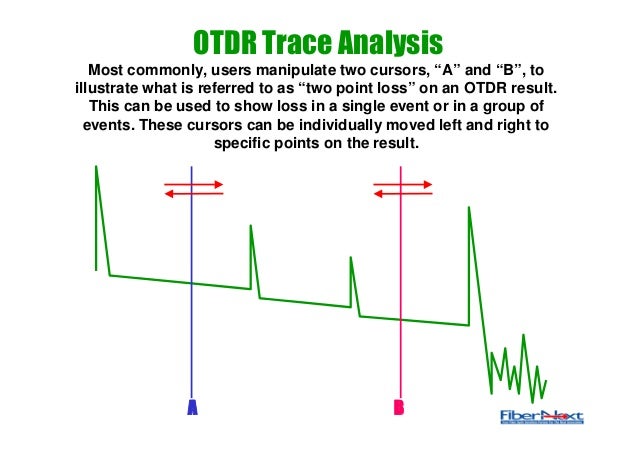

The OTDR measures distance and loss between the two markers. This can be used for measuring loss of a length of fiber, where the OTDR will calculate the attenuation coefficient of the fiber, or the loss of a connector or splice.

What is N1 and N2 in optical fiber?

The N.A. of any glass combination may be calculated as follows: (where N1= the index of refraction of the core glass), and N2=(the index of refraction of the cladding glass): For example, taking 1.62 for N1 and 1.52 for N2 , we find the NA to be . 56.

What is the difference between a OTDR & A fiber optic light tester?

What might be surprising is that they can yield completely different results. While an optical power meter tests the received optical power, an optical time-domain reflectometer (OTDR) provides length and loss by utilizing backscatter reflection.

What are 3 uses of fiber optic cable used for?

Fibre optics are used for data transmission in high-level data security fields of military and aerospace applications. These are used in wirings in aircraft, hydrophones for SONARs and Seismics applications.

What is a good dB level?

Decibel Level​ Sounds at or below 70 dBA are generally considered safe. Any sound at or above 85 dBA is more likely to damage your hearing over time. Researchers have found that people who are exposed over long periods of time to noise levels at 85 dBA or higher are at a much greater risk for hearing loss.

What is Tier 2 testing in fiber?

Tier 2 fiber optic testing is used to pinpoint root-cause locations and the amount of loss and optical return loss (ORL) from each problem contributor and is performed selectively in addition to Tier 1 testing under specific conditions and situations.

Which diode is used in OTDR?

An OTDR contains a laser diode source, a photodiode detector and a highly accurate timing circuit (or time base).

How far maximum km can test with OTDR?

Assuming typical single-mode fiber attenuation of 0.20 dB/km at 1550 nm, and splices every 2 km (loss of 0.1 dB per splice), such OTDR will be able to accurately certify distances of up to 120 km.

Can you OTDR multimode fiber?

So, here's the truth…you can use a Singlemode OTDR to test Multimode fiber (but you cannot use a MM OTDR to test Singlemode).

7 Otdr fiber Images

OTDR II Fibre Tester Passcomm

FOA Fiber U Lesson Plan Fiber Optic Testing SelfStudy Program

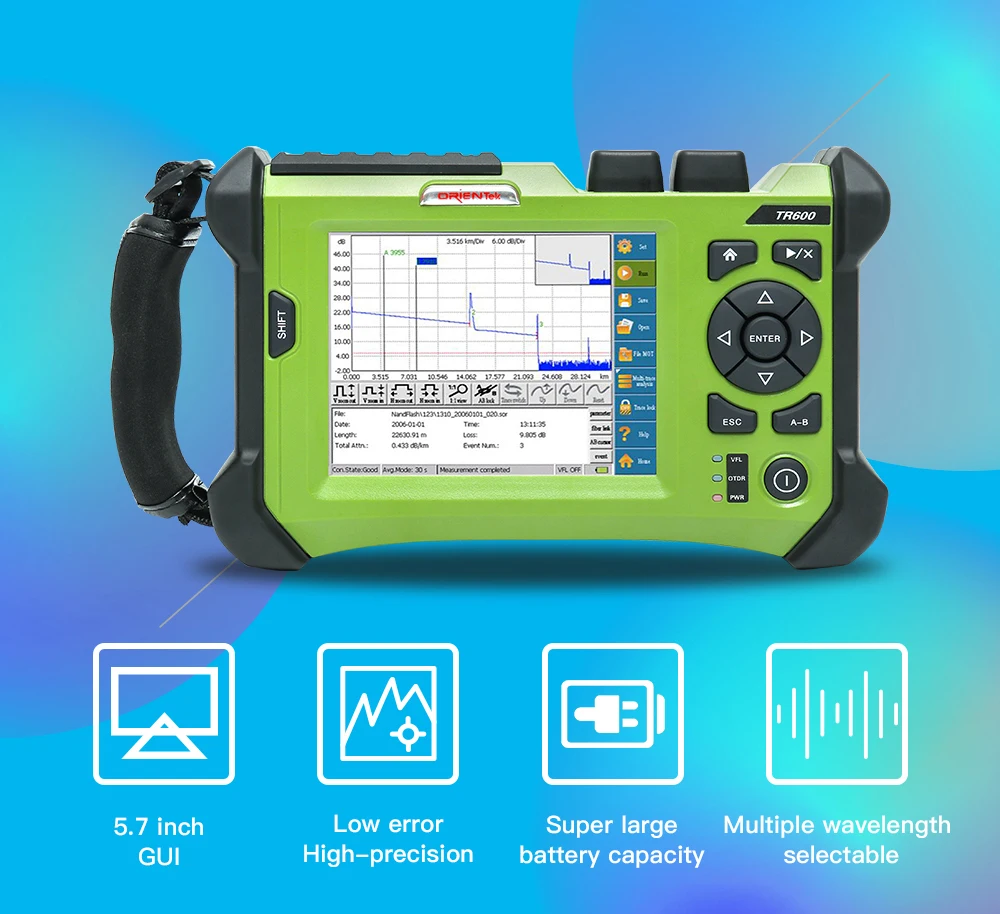

FTTH Fiber Optic OTDR Tester Cheaper Price 1625 PON OTDR Orientek OTDR
