Op Amp Parameters - What Causes Slew Rate?

April 05, 2023 Posting Komentar

Op amp parameters

The slew rate is caused due to limited charging rate of the compensation capacitor and current limiting and saturation of the internal stages of op-amp, when a high frequency large amplitude signal is applied. For large charging rate, the capacitor should be small or the current should be large.

What happens if slew rate is low?

Slew rate limits will cause distortion at high output frequency and amplitude. If your amp is slew rate limited, putting in a periodic waveform (sine, square, etc.) will result in something that looks a bit like a sawtooth wave.

What are the 4 types of amplifiers?

different types of amplifiers are also often described in system or block diagrams by name.

Amplifier.
Audio Frequency Amplifier.
Intermediate Frequency Amplifier.
R.F. Amplifier.
Ultrasonic Amplifier.
Operational Amplifier.

What is gain factor?

The amplification factor, also called gain , is the extent to which an analog amplifier boosts the strength of a signal . Amplification factors are usually expressed in terms of power . The decibel (dB), a logarithmic unit, is the most common way of quantifying the gain of an amplifier.

How many parameters does an op amp have?

We know that any circuit has two major parameters such as input and output. A condition in which some part of the output is fed back to the input is called as a feedback. In case of an op-amp we have two types of feedbacks such as positive feedback and a negative feedback.

What are op-amp limitations?

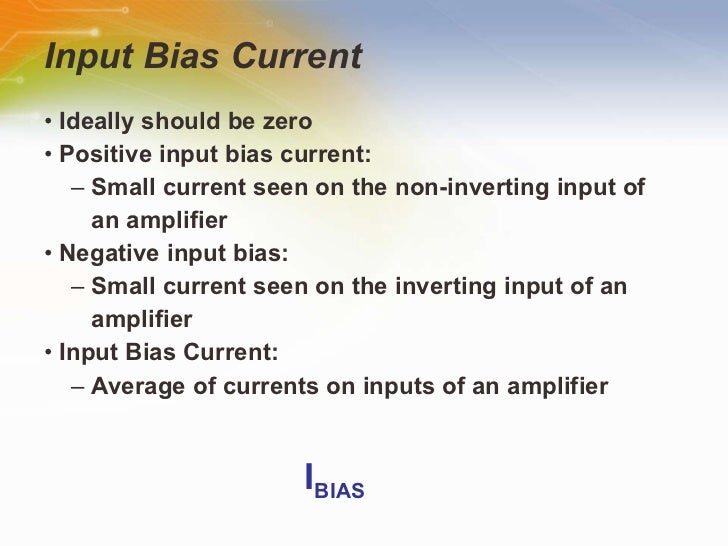

The maximum bias current of the Op-Amp is 100 nA. The maximum offset current is 40 nA, and the maximum offset voltage is 2 mV. One of the practical op amp limitations is that the input bias currents for the two inputs may be slightly different.

What is the symbol of op-amp?

The symbol for an operational amplifier is a triangle that has two inputs and a single output.

What are AC and DC parameters?

Alternating Current	Direct Current
AC is easy to be transferred over longer distances – even between two cities – without much energy loss.	DC cannot be transferred over a very long distance. It loses electric power.

What are the different parameters of amplifier?

Amplifier properties are given by parameters that include: Gain, the ratio between the magnitude of output and input signals. Bandwidth, the width of the useful frequency range. Efficiency, the ratio between the power of the output and total power consumption.

Why Opamp is called op amp?

An operational amplifier (op-amp) is an integrated circuit (IC) that amplifies the difference in voltage between two inputs. It is so named because it can be configured to perform arithmetic operations.

What are ideal and practical parameters of op amp?

Ideal op amps use no power, have infinite input impedance, unlimited gain-bandwidth and slew rate, no input bias current, and no input offset. They have unlimited voltage compliance.

What are the 4 stages of op-amp?

There are four basic sections: bias, 2:1, gain and buffer (Figure 2). These four stages can be combined in some op amp devices, but the four functions are fundamental. The bias section provides all of the voltages and currents needed by the other 3 sections.

What are the 5 classes of amplifier?

Amplifier Class	Description	Conduction Angle
Class-B	Half cycle 180^o of Conduction	θ = π
Class-AB	Slightly more than 180^o of conduction	π < θ < 2π
Class-C	Slightly less than 180^o of conduction	θ < π
Class-D to T	ON-OFF non-linear switching	θ = 0

What are the 3 op-amp rules?

Here are the golden rules of operational amplifiers:

1) Infinite Open Loop Gain.
2) No current flowing through both of the Inputs.
3) Potential Difference between input pins is ZERO.

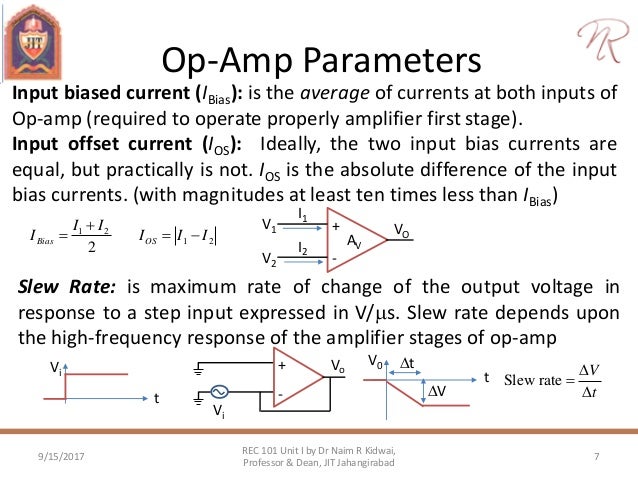

What is slew rate?

Slew rate is defined as the maximum rate of change of an op amps output voltage, and is given in units of volts per microsecond. Slew rate is measured by applying a large signal step, such as one volt, to the input of the op amp, and measuring the rate of change from 10% to 90% of the output signal's amplitude.

What are AC parameters of op amp?

The significant AC parameters of Op-amp are transient response, bandwidth and slew rate but all of them have different results while becoming excessive. The transient response affects the settling time while slew rate gives rise to distortion if exceeded.

What is CMRR formula?

1) and Acom is the common mode gain (the gain with respect to Vn in the figure), CMRR is defined by the following equation. CMRR = Adiff /Acom = Adiff [dB] - Acom [dB] For example, NF differential amplifier 5307 CMRR is 120 dB (min.) at utility frequency.

What is the SI unit of slew rate?

In electronics, slew rate is defined as the change of voltage or current, or any other electrical quantity, per unit of time. Expressed in SI units, the unit of measurement is volts/second or amperes/second, but is usually expressed in terms of microseconds (μs) or nanoseconds (ns).

What are the 3 parameters of an AC signal?

The usual waveform is a sine wave (Fig. 1). General parameters defining the alternating current: period, frequency (in Hz) and amplitude.

What is the range of op-amp?

Most high speed op amps will source and sink between 50 - 100 mA, though a few are limited to less than 30 mA. Even for high speed op amps that have short circuit protection, junction temperatures may be exceeded (because of the high short circuit current) resulting in device damage for prolonged shorts.
