Op Amp Cmrr - What Are The Two Modes Of Differential Amplifier?

Op amp cmrr

The input signals to a differential amplifier, in general, contain two components; the 'common-mode' and 'difference-mode' signals.

What does a high CMRR mean?

This ratio is the CMRR. A very high value of CMRR means that the differential gain Av(d) is high and the common-mode gain Acm is low. Thus the higher the CMRR, the better. A well-designed differential amplifier typically has a high differential gain and low common mode gain, resulting in a high CMRR.

What is ICMR in op-amp?

INPUT COMMON MODE RANGE (ICMR) OF MOS DIFFERENTIAL AMPLIFIER. • ICMR is the range of VCM over which the differential pair operates properly.

What affects CMRR?

CMRR of the circuit not only depends on Device Under Test (DUT) but also on external component tolerances. Higher is the tolerance, worse is CMRR.

What is range of CMRR for 741 op-amp?

For practical operational amplimers, The Common Mode Rejection Ratio (CMMR) should be 85 to 105 dB. CMRR:. Note: For Ideal operational amplimers, The Common Mode Rejection Ratio (CMMR) should be infinity.

What is differential mode in op-amp?

It represents two different voltages on the inputs. Recall that a differential amplifier amplifies the difference and with an operational amp, the input stage is a differential amp so it will amplify the difference between the two voltages on the two inputs.

What is common-mode range?

Common mode input voltage range is also known as input voltage swing. This term describes the range of input common mode voltages that can be used for normal linear operation of the amplifier. The common mode input voltage range is always defined relative to the positive supply and the negative supply.

What does negative CMRR mean?

Common Mode Rejection Ratio Calculation So, in this demonstration the DI-245 may be described as providing about 142 dB of common mode rejection. The negative value means that the common mode voltage was reduced by 142 dB.

Why CMRR is measured in DB?

Explanation: CMRR is an important specification referred to the differential amplifier and is normally expressed as decibels. The ability of the amplifier to reject common voltages on its two input leads is known as common-mode rejection.

Why an op amp has high CMRR?

A differential mode of operation at the input side enables the op-amp to reject various frequency components constituting common-mode input (CMI) and, thus, suppress unwanted noise and electromagnetic interference (EMI). That shows why a high CMRR is critical in empowering an op-amp to attenuate any CMI elements.

What is CMRR used for?

In electronics, the common mode rejection ratio (CMRR) of a differential amplifier (or other device) is a metric used to quantify the ability of the device to reject common-mode signals, i.e. those that appear simultaneously and in-phase on both inputs.

What is opamp CMRR slew rate?

It means, an ideal op-amp will amplify the signals of any frequency without any attenuation. Common Mode Rejection Ratio (CMRR) is infinity. Slew Rate (SR) is infinity. It means, the ideal op-amp will produce a change in the output instantly in response to an input step voltage.

What is common-mode gain of op amp?

Common-mode voltage gain refers to the amplification given to signals that appear on both inputs relative to the common (typically ground). You will recall from a previous discussion that a differential amplifier is designed to amplify the difference between the two voltages applied to its inputs.

What is CMRR formula?

1) and Acom is the common mode gain (the gain with respect to Vn in the figure), CMRR is defined by the following equation. CMRR = Adiff /Acom = Adiff [dB] - Acom [dB] For example, NF differential amplifier 5307 CMRR is 120 dB (min.) at utility frequency.

What is difference between common-mode and differential mode?

What is the difference between common mode and differential mode? A. The common mode refers to signals or noise that flow in the same direction in a pair of lines. The differential (normal) mode refers to signals or noise that flow in opposite directions in a pair of lines.

What is CMRR measured in?

CMRR is usually expressed in dB: Datasheets commonly list CMRR as a dc value, measured by determining the two voltage levels necessary to cause the same output change, first in differential mode and then in common mode.

Why Opamp is active device?

OPAMP (operational amplifier), BJT, JFET (transistors), it is called active devices, because of its ability to manipulate and maintain voltage or constant current (within specified operating ranges, unlike the ideal elements).

Is common mode voltage AC or DC?

The common-mode voltage can be AC, DC, or a combination of AC and DC. (Figure 3 represents the simplest case, a DC common-mode voltage with no AC component.)

What is CMRR ideal value?

Ideally, CMRR is infinite. A typical value for CMRR would be 100 dB. In other words, if an op amp had both desired (i.e., differential) and common-mode signals at its input that were the same size, the common-mode signal would be 100 dB smaller than the desired signal at the output.

Why is higher CMRR better?

The common-mode rejection ratio (CMRR) of a differential input indicates the capability of the input to reject input signals common to both input leads. A high CMRR is important when the signal of interest is a small voltage fluctuation superimposed on a (large) voltage offset.

5 Op amp cmrr Images

Circuit to test CMRR General Purpose Amplifier Other Linear Forum

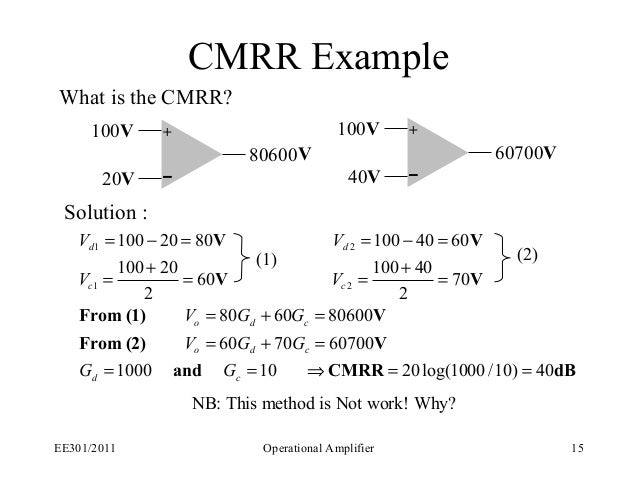

Slide bab op amp
