The Nyquist plot (one is shown in the video above) is a very useful tool for determining the stability of a system. It has advantages over the root locus and Routh-Horwitz because it easily handles time delays. However, it is most useful because it gives us a way to use the Bode plot to determine stability.

What are the two plots in a Bode plot?

Bode analysis consists of plotting two graphs: the magnitude of Φ0(s) with s = jω, and the phase angle of Φ0(s) with s = jω, both plotted as a function of the frequency ω. Log scales are usually used for the frequency axis and for the magnitude of Φ0(jω).

Why is Nyquist plot semicircle?

Semicircles in the Nyquist plot are very common in electrochemical impedance, and are usually associated with processes such as charge transfer, because at an electrode surface the transfer of charge happens in parallel with the charging of the double layer capacitance – hence the semicircle.

Is polar plot and Nyquist plot same?

polar plot is half of nyquist plot. polar plot can only tell about the magnitude and phase contribution of system at various frequency. wheras nyquist can also tell about the stability of system.

What is the formula of Nyquist criterion?

According to Nyquist theory Z=N+P (for any system, whether it is stable or unstable). For the stable system, Z=0, i.e. No roots of characteristics equation should be at RHS. So for the stable system N = –P.

Is Nyquist plot mirror image of polar plot?

Concept-In Nyquist plots the number of infinite radii half circles will be equal to the number of poles(type) or zeros at the origin. The infinite radius half-circle will start at the point where the mirror image of the polar plot ends.

What is the Nyquist frequency for a signal?

The frequency fn = 1/2Δt is called the Nyquist frequency. When spectra are presented for digital data, the highest frequency shown is the Nyquist frequency. For IRIS broadband seismic stations, Δt = 0.05 s, so the Nyquist frequency is 10 Hz.

Why Bode plot is used?

The Bode plot is a popular tool with control system engineers because it lets them achieve desired closed-loop system performance by graphically shaping the open-loop frequency response using clear and easy-to-understand rules.

What is the minimum sampling frequency?

The sampling theorem states that a real signal, f(t), which is band-limited to f Hz can be reconstructed without error from samples taken uniformly at a rate R > 2f samples per second. This minimum sampling frequency, fs = 2f Hz, is called the Nyquist rate or the Nyquist frequency (6).

What is Nyquist plot in impedance?

Electrochemical impedance spectroscopy (EIS) consists of plotting so-called Nyquist plots representing negative of the imaginary versus the real parts of the complex impedance of individual electrodes or electrochemical cells.

Which graph is used for Nyquist plot?

The term Nyquist diagram is used for a diagram of the line joining the series of points plotted on a polar graph when each point represents the magnitude and phase of the open-loop frequency response corresponding to a particular frequency.

How do you explain a Nyquist plot?

A Nyquist plot is a parametric plot of a frequency response used in automatic control and signal processing. The most common use of Nyquist plots is for assessing the stability of a system with feedback. In Cartesian coordinates, the real part of the transfer function is plotted on the X-axis.

How do you use a Nyquist plot to check stability?

If the open-loop system has P unstable poles, the closed-loop system is stable if and only if the Nyquist plot encircles –1 point P times counterclockwise. If the Nyquist plot passes through −1, then the system has a closed-loop pole on the imaginary axis (critically stable).

What is the difference between sampling and Nyquist rate?

The Nyquist rate is the minimal frequency at which you can sample a signal without any undersampling. It's double the highest frequency in your continous-time signal. Whereas the Nyquist frequency is half of the sampling rate.

What is the Nyquist sampling rate formula?

Find Nyquist rate. 2n+2. n n = cos 2n+2.

What is Z and Z in EIS?

Representations of EIS When the real part (Zreal) is plotted on the X-axis and the imaginary part (Zimag) is plotted on the Y-axis, a “Nyquist Plot” is formed (Figure 2(II), right side). Each point on the Nyquist plot is an impedance value at a frequency point, while the Zimag is negative.

Which is correct Nyquist rate?

The Nyquist rate or frequency is the minimum rate at which a finite bandwidth signal needs to be sampled to retain all of the information. For a bandwidth of span B, the Nyquist frequency is just 2 B. If a time series is sampled at regular time intervals dt, then the Nyquist rate is just 1/(2 dt ).

What is Nyquist criteria of sampling?

Simply stated, the Nyquist criterion requires that the sampling frequency be at least twice the highest frequency contained in the signal, or information about the signal will be lost. If the sampling frequency is less than twice the maximum analog signal frequency, a phenomenon known as aliasing will occur.

What is Z and Z in Nyquist plot?

Figure 4a shows the respective Nyquist plots for three different electrodes from f = 0.01 to 10 000 Hz, where Z′ is the real part and Z″ is the imaginary part of the impedance, respectively.

How do you solve Nyquist plot problems?

Nyquist plot

1. F(s) = (s - z1)(s - z2) (
2. Encircled: If a point is said to lie inside the closed path, it is said to be encircled.
3. Example: Draw the Nyquist plot for the system whose open loop transfer function is given by:
4. G(s)H(s) = K/s(s + 2)(s + 10)
5. Also determine the range of K for which the system is stable.

13 Nyquist plot examples Images

On a Nyquist plot does the ratio of the sizes of different regions

Nyquist plot of 055BZT045BCT sample at 350 400 450 500 C Inset

Nyquist plot of frequency response MATLAB nyquist

Nyquist Plot Examples Erik Cheever

Nyquist and polar plot 118 117

Nyquist and Bode plots of mild steel in 1 mol L 1 HCl solution in

431 Nyquist plot example 1 YouTube

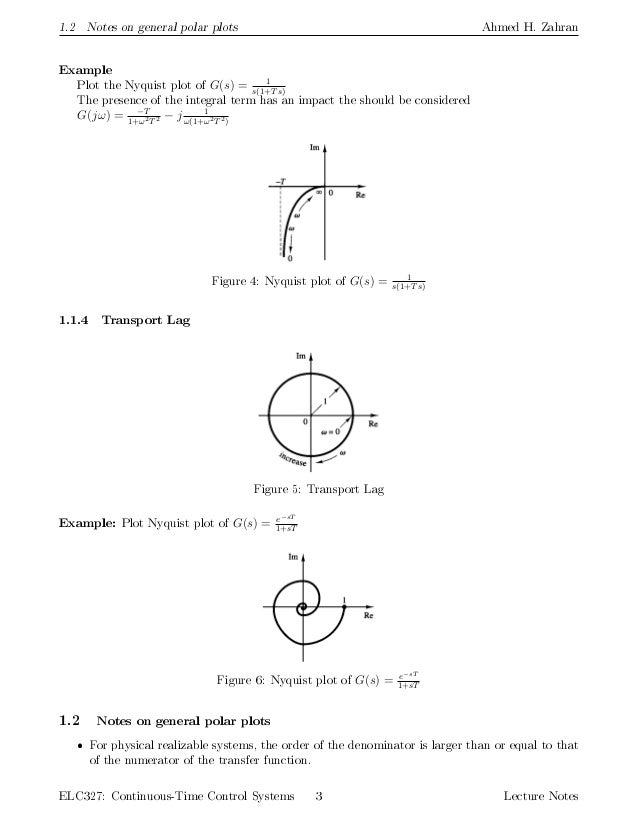

Notes nyquist plot and stability criteria
