Modes Of Waveguide - What Causes Transverse Modes?

Modes of waveguide

Transverse modes occur in radio waves and microwaves confined to a waveguide, and also in light waves in an optical fiber and in a laser's optical resonator. Transverse modes occur because of boundary conditions imposed on the wave by the waveguide.

Which is better IR or RF?

The most important things to consider is the location of the equipment and where you will be controlling it. If it is a short distance without obstacles or solid obstructions, then you can use an IR remote, but if you need more flexibility, choose the RF remote control system.

What is lateral mode?

In a diode laser, a mode in the plane of the active layer that is perpendicular to the direction of the emitted beam. Superresolution Method Poised to Improve Gene Function Understanding Oct 18, 2022.

What is meant by TEM mode?

Transverse electromagnetic (TEM) is a mode of propagation where the electric and magnetic field lines are all restricted to directions normal (transverse) to the direction of propagation.

Does TEM mode exist?

TEM mode requires two conductors for propagation, and it is the mode of propagation in coaxial lines, two-open-wire lines, stripline transmission lines, and parallel plate lines. This mode doesn't exist in hollow waveguides and cavities.

What is the axial mode?

Axial Modes involve just two parallel surfaces – opposite walls, or the floor and ceiling. In other words, an Axial mode consist of waves resonating only along one dimension such as the length, width or height of the room. Normally the axial modes have the most strength while the oblique modes have the lowest strength.

What is propagation mode?

Propagation modes in a MMF are mutually orthogonal, and ideally there is no energy exchange between different modes during propagation. Under this assumption, each mode can provide an independent communication channel for information transmission through the fiber.

What are the 2 modes of operation of a waveguide?

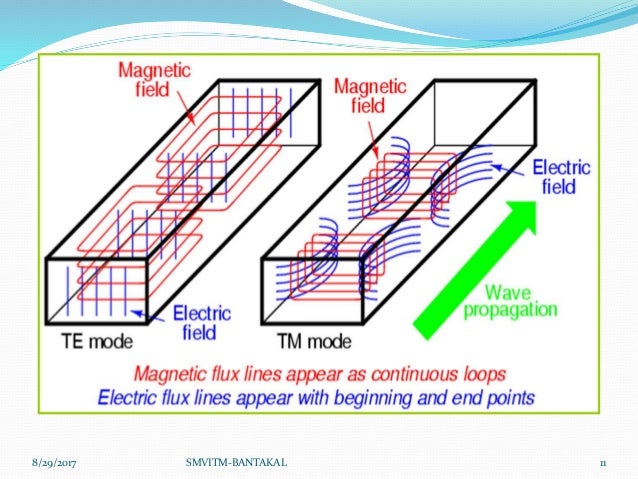

Two common modes are known as transverse-magnetic (TM) and transverse-electric (TE). In TM mode, the magnetic lines of flux are perpendicular to the axis of the waveguide. In TE mode, the electric lines of flux are perpendicular to the axis of the waveguide.

What are the types of transverse waves?

Surface ripples on water, seismic S (secondary) waves, and electromagnetic (e.g., radio and light) waves are examples of transverse waves.

What is longitudinal mode and transverse mode?

A longitudinal mode pattern has its nodes located axially along the length of the cavity. Transverse modes, with nodes located perpendicular to the axis of the cavity, may also exist.

What is TM mode in waveguide?

TM Mode. In the Transverse Magnetic (TM) mode, the magnetic field is transverse to the direction of propagation while the electric field is normal to the direction of propagation.

Why junctions are used in waveguide?

Waveguide junctions are used to enable power in a waveguide to be split, combined or for some extracted.

What is RF or IR mode?

RF, also known as “Radio Frequency”, and IR, which stands for “Infrared” are two kinds of energy used in remote controls to communicate commands. RF uses radio waves and IR is a kind of light that can't be seen with the naked eye.

What is cutoff frequency of waveguide?

The cut-off frequency of a waveguide is the frequency above which signals will propagate through it with minimal attenuation. This means that signals with a frequency above the cut-off frequency will propagate through a waveguide and signals below this frequency will be attenuated.

What is fundamental mode of waveguide?

The fundamental mode of a waveguide is the mode that has the lowest cut-off frequency. For a rectangular waveguide it is the TE10 mode that is the funda- mental mode. It has fc10 = c 2a . The electric field of the fundamental mode is E = E0 sin (πx a ) e−jkzzey.

Why can't TEM mode exist in hollow waveguide?

Figure 18.1: Absence of TEM mode in a hollow waveguide enclosed by a PEC wall. The magnetic field lines form a closed loop due to the absence of magnetic charges. Hence, this equation cannot be satisfied unless there are Ez = 0 component, or that Jz = 0 inside the waveguide.

Is RF a DC or AC?

Yes, RF is a form of AC, but that electrical outlet's AC technically isn't a form of RF — even though it's possible to have a RF signal whose frequency is within that range. In case you were wondering, sound waves are not RF, and they are not part of the electromagnetic spectrum.

What is Hybrid mode in waveguide?

Hybrid mode contains of all six components of electromagnetic field propagating with the same velocity in the same direction. For observing the hybrid modes, TE and TM components have to couple. In linear systems, such coupling was caused by geometry of waveguide and there is only at the interfaces.

What is single mode waveguide?

An optical waveguide in which only the lowest order bound mode, which may consist of a pair of orthogonally polarized fields, can propagate at the wavelength of interest.

What is rectangular waveguide modes?

A rectangular waveguide is a conducting cylinder of rectangular cross section used to guide the propagation of waves. Rectangular waveguide is commonly used for the transport of radio frequency signals at frequencies in the SHF band (3–30 GHz) and higher.
