How To Check Cartridge Fuses - What Is Cartridge Type Fuse?

How to check cartridge fuses

A cartridge fuse is a cylinder shaped fuse with either metal caps (ferrules) or blade contact points, at both ends. The contact points are connected by a fuse link, a length of material meant to melt, or sacrifice itself, in the event of an over-current event.

Can a fuse be burnt but not blown?

Can A Fuse Go Bad Without Blowing? It is possible for automotive fuses to go bad without blowing. They may become corroded due to moisture, but it very rarely happens.

How do you check the fuse rating on a cartridge fuse?

Formula to Calculate the Fuse Rating V for voltage in volt); I for current in Amps. The fuse rating can be calculated by dividing the power used by the appliance by the voltage going into the appliance. I (Amps) = P (Watts) ÷ V (Voltage).

How can you tell if a cartridge fuse is bad?

To test a fuse, touch one of the multimeter probes to one end of the cartridge and the other to the other end, it doesn't matter which probe goes on which side. In the case of automotive fuses, touch the probes to the fuse leads (exposed metal parts).

How do you fix a blown cartridge fuse?

There may be a screw in the cartridge carriers that you have to remove. Test the fuse in the cartridge fuse tester. If the fuse works, put it back in the cartridge, put the cartridge back in the fuse box, and check the next cartridge. When you have discovered which fuse has blown, replace this with a new fuse.

Should a fuse have 0 ohms?

Place one of the multimeter leads on one end of the fuse. Place the other lead on the other end of the fuse. If the reading is between 0 and 5 Ω (Ohms), the fuse is good. A higher reading indicates a bad or degraded fuse.

What tool is used to remove cartridge fuses?

A Cartridge Fuse Puller is an ideal way to safely remove cartridge fuses.

Are all cartridge fuses the same?

There are two basic types of cartridge fuses. Ferrule-type fuses are rated up to and including 60 amps. They have a cylindrical metal cap on each end and look like big versions of the fuses you find inside the plug end of holiday lights. The knife-blade cartridge fuse is the big brother to the ferrule-type.

How do you know which fuse is blown?

Open the fuse box door and turn on a flashlight to inspect the inside. Inspect each fuse closely. The glass container on a working fuse will be clear. The glass container on a fuse that has blown and cut off the power to protect the circuit might be cloudy black or grey, or have metallic residue on the sides.

When should a cartridge fuse be replaced?

In case of a short or electrical fault occurring in the electrical circuit and the circuit gets overloaded, the metal link will heat up and melt which will open up the circuit and result in shutting the power off. Once a fuse is blown, it will need to be replaced.

How long do cartridge fuses last?

Typically fuse use shelf life / life expectancy is 10 years.

What are the two types of cartridge fuses?

There are two types of Cartridge fuses. 1. General purpose fuse with no time delay and 2. Heavy-duty cartridge fuses with time delay.

What is the most common cause of a blown fuse?

Overloaded Circuit The most common cause of a blown fuse is when something draws too much power from the circuit. This is most often caused by either too many lights or from using too many plug-in appliances at once. The biggest culprit for this kind of issue is a multiple outlet adapter plugged into a socket.

Should a fuse read 0 ohms?

A good fuse will read 0 ohms (depending on what the meter reads when the leads are held together) and a bad fuse will read the same as holding the leads in the air. The illustrations below show how to test fuses, showing each fuse as good. There is no gray area, the fuse is either good or it is not.

What is the difference between plug fuse and cartridge fuse?

In residential use, the fuses protecting the circuits are of two types: plug fuses, which generally protect 120-volt circuits, and cartridge fuses, which protect 240-volt circuits, as well as being used to protect the entire electrical service.

How do I know what size fuse I need?

B Calculate MINIMUM FUSE AMPERAGE by multiplying product amperage rating by 125%. Minimum fuse amperage provides more protection for the wire but may result in nuisance blows. Example: 80A x 125% = 100A. C Choose FUSE AMPERAGE near the middle of this range.

Should you disconnect battery when checking fuses?

Yes. Always ensure to turn off your vehicle's ignition and disconnect the battery before you open or start working on a fuse box.

How do you test a fuse to see if it is good?

Many digital multimeters will make an audible sound during this test in this setting I can touch the

Can cartridge fuse be replaced?

Cartridge type fuses can also be replaced by the homeowner when the fuse is is in a pullout block. The block is removed from the panel by its handle, the cartridge pulled out and replaced.

What does E stand for on a fuse?

E Rated fuses provide transformer protection and are medium voltage,, current limiting, general purpose power fuses that provide overload, and short circuit, protection. E Rated medium voltage fuses are designed to withstand the large magnetizing inrush, that occurs during transformer start-up.

11 How to check cartridge fuses Images

2 Easy Ways to Test a Fuse With a Multimeter wikiHow

Cartridge Blade Terminal and Special Purpose Fuses

Testing and Replacing a Cartridge Fuse DoItYourselfcom

How to Test a Fuse Dengarden

Shop Electrical Category Military Fasteners

Cartridge Fuse High Resolution Stock Photography and Images Alamy

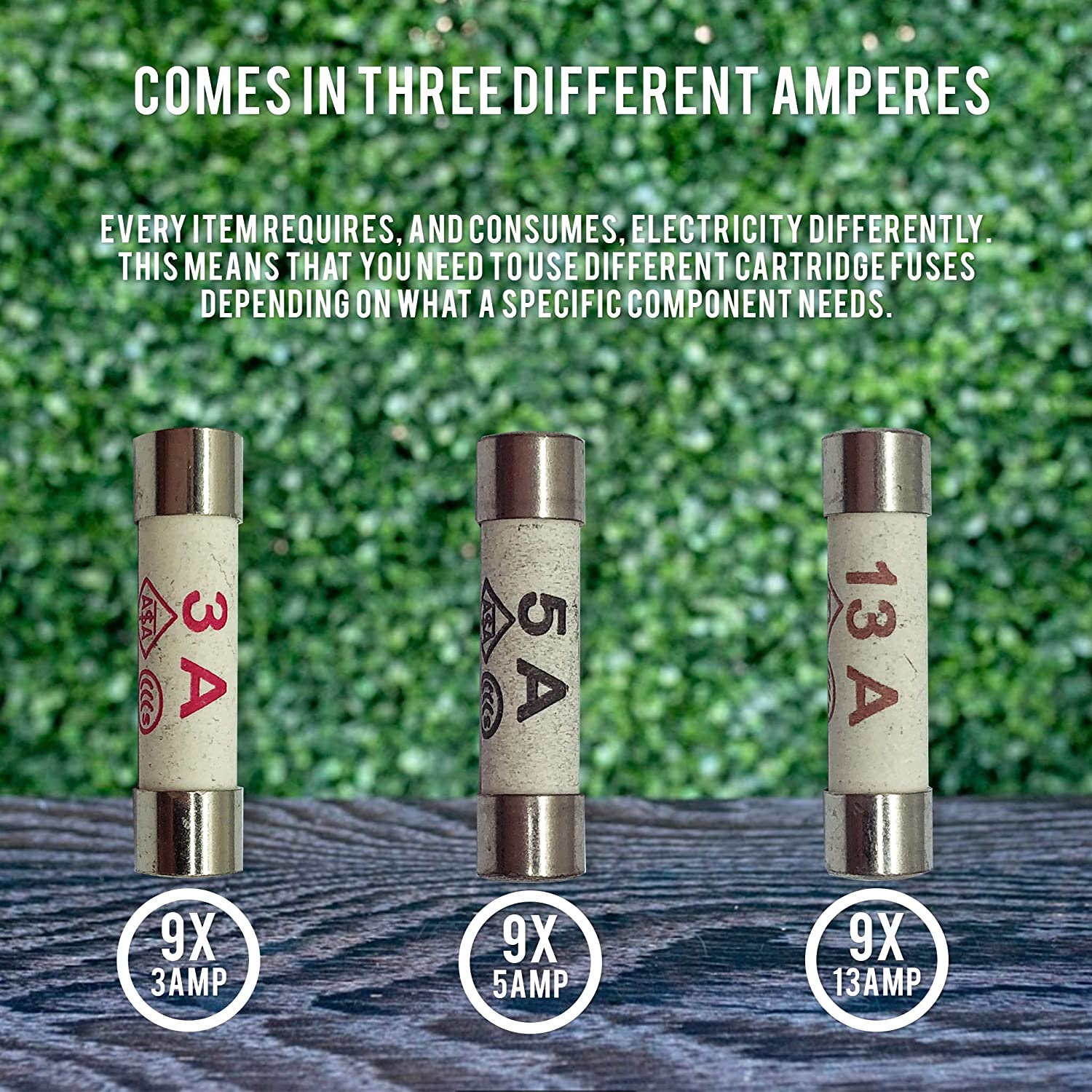

27pk Mixed Cartridge Fuse Set High Quality 9 x 3 amp 9 x 5 amp 9 x
