Gate Valve Globe Valve - What Is Difference Between Gate Valve And Ball Valve?

Gate valve globe valve

What is the difference between gate valve and ball valve? The main difference is in the operation. A gate valve moves a solid disk up and down to open/close the orifice. A ball valve rotates a ball (the orifice) with a bore in it 90 degrees to open/close the valve.

How long do globe valves last?

Using the latest and greatest ball valve in your plumbing can help save more water. It also helps you save money while helping the environment. A ball valve life expectancy is about eight to ten years.

What is the advantages and disadvantages of gate valve?

In general, gate valves cannot be used for regulating flow rate. It can be used for low temperature low pressure or high temperature high pressure, and can be used according to the different material of the valve. However, gate valves are generally not used for conveying mud and other media in the pipeline.

What are the disadvantages of a gate valve?

Disadvantages of Gate Valves Assembly, start-up, and maintenance require large space. In the fully closed position, the slow movement of the slide causes high flow speed. Due to vibration and collision, abrasion and deformation occur in the seating surfaces and the surface gets damaged from friction.

Is globe valve unidirectional?

Globe valves, on the other hand, have specific flow directions. They are unidirectional instead, meaning that fluid can't flow through them in both ways as it could in a gate valve.

Are gate valves still used?

Within the home, gate valves (such as these) are not commonly used. They are considerably more common in the industrial sector. However, gate valves can be occasionally seen in the home's main water shutoff valve or outdoor water spigot.

What are the disadvantages of a globe valve?

Disadvantages..

• Higher pressure drop (compared to a gate valve)
• Requires greater force or a larger actuator to seat the valve (with pressure under the seat)
• Throttling flow under the seat and shutoff flow over the seat.

Is a globe valve a good control valve?

Globe valves are used as control valves, their design allows them to have excellent control characteristics since their flow coefficient curve provides more proportional values with the opening percentage due to their linear characteristics.

How do you know if a globe valve is open or closed?

Open or closed: When the handle of a ball valve is parallel to the valve or pipe, it's open. When it's perpendicular, it's closed.

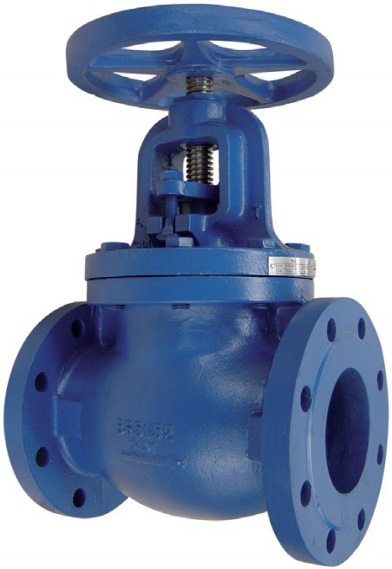

What is a Globe gate valve?

Globe valves are a type of control valve used to stop, start and regulate the flow of media through a pipe. From the outside, they have a spherical body design; inside, a plug-like disc sits on the end of a threaded rotating stem, which raises and lowers to control media flow.

Why do gate valves fail?

The most common causes of gate valve failure are wear and the seat's and wedge's corrosion. The inner areas of a valve wear off over time, and corrosion can make the wedge stick in the open or closed position. When the handwheel is overused, the stem leading to the wedge breaks off and renders the valve useless.

What is another name for a globe valve?

Globe valves are also known as throttle valves.

Are gate valves good for flow control?

Gate valves are best used as isolating or stop valves, where you want full flow or no flow. When they're fully opened, the fluid will flow in a straight line and there isn't a significant drop in pressure because of a low resistance to flow.

How do you tell a gate valve from a ball valve?

While a solid rectangular gate controls the flow of media through a gate valve, a ball valve relies on a pivoting ball to control the flow of liquid or gas. The ball has a bore (or hole) in it that the media passes through, and its position indicates whether the valve is open or closed.

Can I replace a gate valve with a ball valve?

If you already have a gate valve installed and have to replace it, you can certainly replace it with a ball valve. You will need a torch to heat up the parts and remove them. Turn the water off and drain it from the pipe and valve. You will want to open the valve as well.

Can a globe valve flow both directions?

The globe valve must be installed in the proper relation to the media flow as indicated by the flow direction arrow marked on the valve body. This valve is considered uni-directional and must be installed with the pressure side or inlet under the seat.

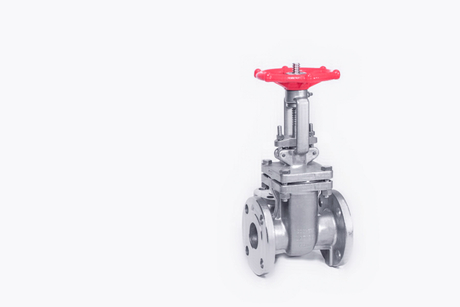

What does gate valve look like?

So now it's in the closed position. And it's moving up to the open. Position. You can see that when

Where are globe valves installed?

In relation to the stem direction, globe valves can be installed in any position. They are preferably to be installed with the stem in vertical upright position. The prescribed flow direction for globe valves is in such a way that pressurization is under the disk.

What is the main disadvantage of the gate valve?

The Main Disadvantages of Gate Valves The distance that the valve plate must move in order to open or close is relatively large, leading to a long opening and closing time. This disadvantage makes gate valves impractical for applications that require rapid actuation.

How does a globe valve work?

The seat of a globe valve is in the middle of and parallel to the pipe, and the opening in the seat is closed off with the disk. When the handle is turned, manually or through an actuator, a disc is lowered or raised by means of the valve stem. When the disc is fully lowered, the fluid flow is shut off.
