Energy stored in an inductor

Energy Stored If the current flowing through the inductor is constant as in a DC circuit, then there is no change in the stored energy as P = Li(di/dt) = 0.

How is energy stored?

Storage systems for electricity include battery, flywheel, compressed air, and pumped hydro storage. Any systems are limited in the total amount of energy they can store.

What is the main difference between capacitor and inductor?

One of the main differences between a capacitor and an inductor is that a capacitor opposes a change in voltage while an inductor opposes a change in the current. Furthermore, the inductor stores energy in the form of a magnetic field, and the capacitor stores energy in the form of an electric field.

How is energy stored and released in an inductor?

In a circuit it will store some energy within it after disconnecting the source it will dissipate

Can an inductor store energy when disconnected?

Suppose an inductor is connected to a source and then the source is disconnected. The inductor will have energy stored in the form of magnetic field. But there is no way/path to discharge this energy? Short answer: It will find a way/path to discharge this energy.

How is energy lost in a resistor?

Energy dissipation in resistors. As a charge q moves through a resistor, it loses a potential energy qV where V is the potential drop across the resistor. This energy goes into heat, much like the way a ball of putty that falls off a cliff converts its potential energy to heat when it hits the ground.

How much charge does an inductor store?

An inductor doesn't store charge. An inductor which conducts electric current stores energy in magnetic field. The formula for the energy stored in a magnetic field by an inductor L is Eind = 1/2 L×I².

What is inductor formula?

Formula for Inductance L = μ N 2 A / l. Where. L = inductance in Henry (H) μ = permeability (Wb/A.m) N = number of turns in the coil.

Where is energy stored in cell?

The mitochondria present in the cell are the power-house of the cell which synthesizes this energy. This energy is stored in the form of ATP (Adenosine triphosphate). Whenever our cells need energy, this ATP is broken down to provide the required energy.

How do capacitors and inductors store energy?

Recap. Capacitors and inductors are electronic components that can store energy supplied by a voltage source. A capacitor stores energy in an electric field; an inductor stores energy in a magnetic field.

Does inductor store energy in DC circuit?

In other words, the inductor is a component that allows DC, but not AC, to flow through it. The inductor stores electrical energy in the form of magnetic energy. The inductor does not allow AC to flow through it, but does allow DC to flow through it.

What is energy stored in a capacitor?

Electrostatic potential energy gets stored in the capacitor. It is thus related to the charge and voltage between the plates of the capacitor.

How do you find the energy stored in an inductor?

Assuming we have an electrical circuit containing a power source and a solenoid of inductance L , we can write the equation of magnetic energy, E , stored in the inductor as: E = 1/2 * L * I² , where I is the current flowing through the wire.

How does a inductor work?

An inductor is a passive electronic component that can store electrical energy in the form of magnetic flux. Usually, the wire is wound, when a current passes, a magnetic field is generated from the right side of the direction of current flow.

How do you calculate energy stored in a circuit?

So we can use this formula the potential energy is going to be one half times q squared divided by c

Does inductor store energy in steady state?

Therefore, the energy is only stored inside the inductor before its current reaches its maximum steady-state value, Im. After the current becomes constant, the energy within the magnetic becomes constant as well.

Is energy stored in inductor electric or magnetic?

This energy is actually stored in the magnetic field generated by the current flowing through the inductor.

What unit is energy?

Joule (J). This is the basic energy unit of the metric system, or in a later more comprehensive formulation, the International System of Units (SI). It is ultimately defined in terms of the meter, kilogram, and second.

Is energy stored in resistor?

Resistors never stored energy, they dissipate energy in the form of heat. A coil is generally consist of elements like inductance and resistance. Hence they somewhat stored energy in the form of magnetic field.

How do you calculate energy stored?

Energy stored in a spring

1. Work is done when a spring is extended or compressed . Elastic potential energy is stored in the spring.
2. The elastic potential energy stored can be calculated using the equation:
3. elastic potential energy = 0.5 × spring constant × (extension) ²

13 Energy stored in an inductor Images

Energy Formula In Inductor

Energy Stored In An Inductor Energy stored in inductor magnetic

Current flow through inductor large inductance in AC circuit

Energy Stored In A Inductor Equation

Inductor Magnetic Field Strength

Solved Energy Stored In An Inductor The Circuit Shown Bel Cheggcom

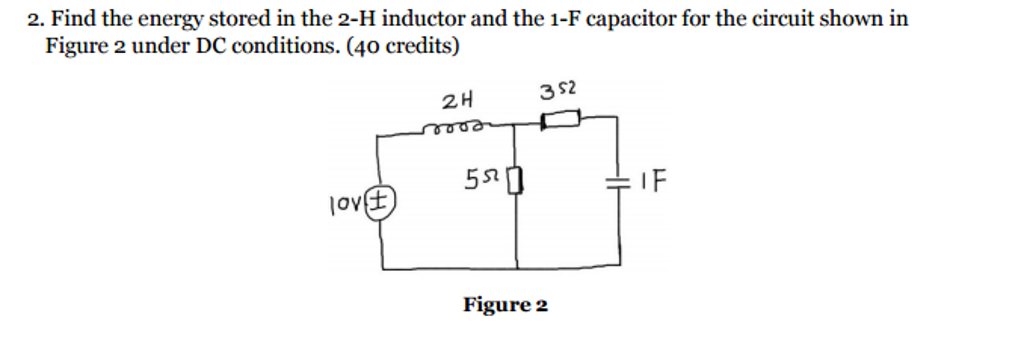

Solved Find The Energy Stored In The 2H Inductor And The Cheggcom
