Does a dc circuit need a ground

In the case when a voltage source has negative voltage, it just means the negative terminal of the battery is connected to the positive side of the circuit and the positive terminal of the battery is connected to the negative side of the circuit .

What is the common wire in a DC circuit?

The black wire in DC is called NEGATIVE or COMMON. In the british system theBLK. is called neutral.

What is DC earthing?

If a circuit is grounded through a capacitor it is referred to as AC-grounded because only AC signals can pass through the cap to ground, DC levels are blocked. Whereas if a circuit is such that DC current can flow to ground, such as through a resistor, then it is considered to be DC-grounded.

How is a DC system grounded?

The DC ground point can be any single terminal, existing or added, that is conductive and connected to the ground of the building wiring system and then eventually to earth ground. STEP 3. Connect the DC common point to the DC ground point, making certain there is only one conductive path between these two points.

Does it matter which way you wire a DC breaker?

The breaker is only designed to extinguish arc internally in one direction. The markings indicate the input power end. If you connect in reverse it will trip but my continue to feed power while arcing across a air gap internally and burn the breaker up.

What happens if you wire a DC motor backwards?

Reversing the direction of your motor will cause the carbon brushes to be pushed over the commutator, facing more friction than the other direction. This can cause the carbon brushes to wear faster and, if not maintained properly, could cause damage to the critical commutator segments, which are not interchangeable.

Is DC negative the same as ground?

Answer: On most boats, the DC negative and the DC ground are the same thing. Recall the DC negative is connected to the engine (for starting and running gauges and alarms), the engine is in turn connected to ground via the transmission, propeller shaft, and therefore connected to water, which is ground.

What types of circuits should not be grounded?

The following circuits shall not be grounded: Circuits for electric cranes operating over combustible fibers in Class III locations, as provided in 503.155. Circuits in health care facilities as provided in 517.61 and 517.160. Circuits for equipment within electrolytic cell line working zones as provided in Article 668.

Do DC circuits have a neutral?

DC does not use a neutral as terminology it is referred to a negative conductor. 120V AC would have a HOT and NEUTRAL and DC has a POSITIVE & NEGATIVE. For most DC circuit wiring, other than those listed, it will be red for positive conductors and black or optionally yellow for DC negative.

Do you have to ground power supply?

In most power supplies the + and the - would be floating (isolated). A third Gnd connection is really not necessary. Some power supplies may have an additional output connected to protective earth and then you can use this if you need it. If the PS has a metal case then it would normally be grounded to PE.

Can I use battery negative as ground?

Ground is the reference node of the circuit. By convention, this typically is where you hook the negative terminal of a battery, but that is not always the case. Strictly speaking, the negative terminal is not ground, it may be connected to ground, and so be at ground potential.

What electrical system is not required to be grounded?

Alternating-Current circuits that operate at less than 50 volts are not required to be grounded unless, Figure 3: The primary to the power suply exceeds 150 volts to ground.

Does DC ground carry current?

For any circuit to operate correctly, there must be a closed loop for current to flow. Therefore, current does flow through the return path (system ground, in your circuit).

Does positive and negative matter with DC?

In DC circuits No. But in AC circuits yes you have to put on live wire. In dc, conventional current flows from positive to negative but in reality protons don't move ,electron does. But conventionally negative terminal consider as a ground/negative.

What happens if you ground a positive terminal?

If the positive is grounded, it will have 0V at that terminal. Still maintaining the potential difference. If the battery was of v volt, the positive will have 0V and the negative will have -v volt.

Why do DC power supplies have a ground?

Typically a Ground in a DC power supply is teh connection back through the AC supply the Grounds the Case in case of a high voltage AC short circuit so as to protect you the user from a nasty shock if a short to the case of the supply occurs.

What is the purpose of a floating ground?

The term floating ground (FG) is used to describe an option that allows for very accurate ground referenced load current measurements to be made. Whatever current flows out of the high voltage output of a supply, must return via the ground referenced return path.

How do you ground a DC power supply?

You ground the device by connecting a grounding cable to earth ground and then attaching it to the grounding point on the DC power supply. You must provide the grounding cables. The cable lug used on the grounding cable should have a #10 stud hole and accommodate a minimum of 12-AWG wire.

Can AC and DC share the same ground?

Depending on the application, you can choose between a single ground point that ties all AC and DC voltages together, or separate grounds for the AC and DC voltages. In creating a common ground, you typically would connect the incoming AC voltage ground with the negative leg of the DC voltage.

How do you ground 12v?

Ground the engine block to the frame with a heavy ground wire or cable, making sure that both connections are clean, tight, and metal to metal. Next, ground the engine block to the vehicle body with a heavy ground wire or cable making sure that both connections are clean, tight and metal to metal.

8 Does a dc circuit need a ground Images

DC Circuits

TopicADDC Current Electricty for nerds

Why cant you use the ground of a second DC power supply as a return

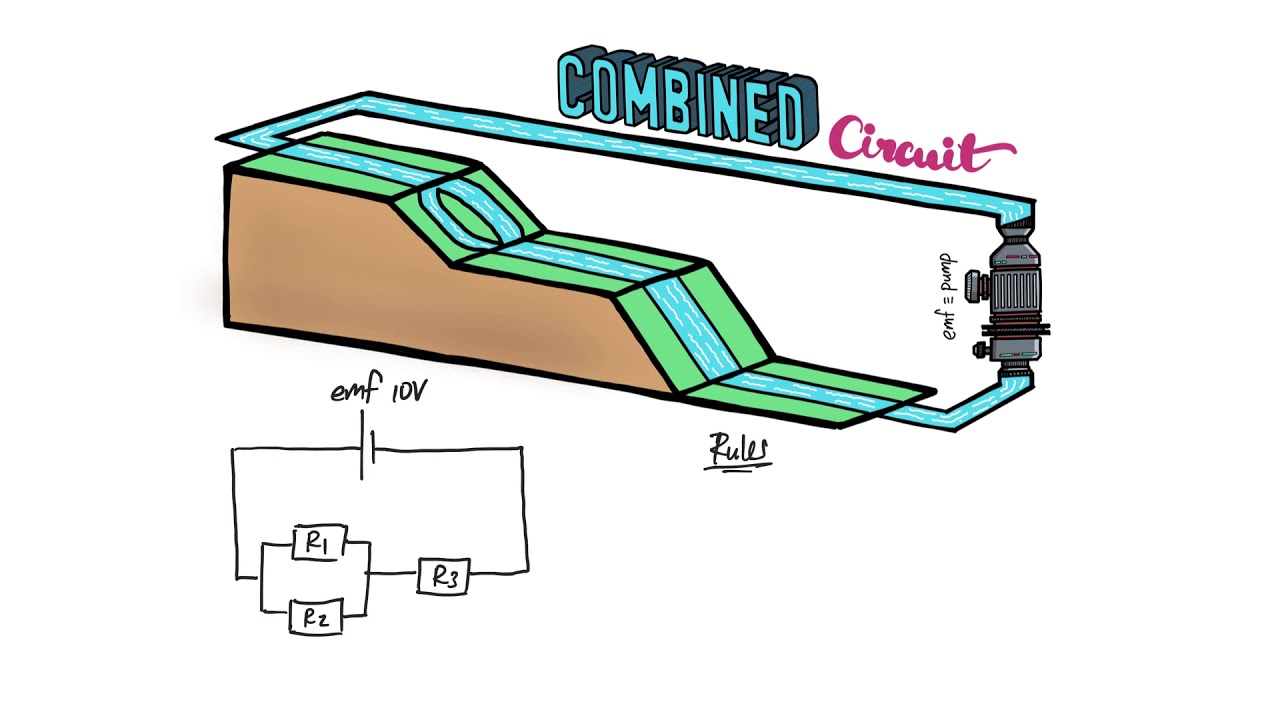

Understanding DC Circuit 04 Combined circuit YouTube
