Cat 5e /6 testers measure crosstalk from one pair to all three other pairs for each pair and compare it to the 568 specs, giving a pass/fail result. Some also calculate "ACR" or attenuation/crosstalk ratio, as it is a measure of how big the crosstalk signal is to the attenuated signal at the receiver.

How do I know if a wire is neutral or live?

In a plug, the live wire (brown) and the neutral wire (blue) are the two wires that form the complete circuit with a household appliance. The earth wire (green and yellow) does not normally form part of the circuit and is included as a safety wire.

What does a cable tester do?

Cable testers verify the electrical connections in a signal cable — confirming things are wired correctly between the ends of the cable.

What is a Fluke tester?

Fluke's line of electrical testers allow electrical and maintenance professionals the ability to troubleshoot and prevent electrical issues. They are accurate, safe and easy to use.

How do you tell if a wire is live with a multimeter?

Place the red (positive) probe on one wire and the black (negative) probe on ground. Once you position your probes, you check the multimeter for a reading. If the multimeter presents a reading of 120V (with wires for lighting) or 240V (with outlets for large appliances), then that wire is hot or live.

When would you use a network cable tester?

Network cable testers are frequently used to tell whether a patch cable will work before it is connected. A network cable tester can identify if the wires are paired correctly. It can also show if there is a break in the insulation, a situation which allows crosstalk between two wires that should not be connected.

What is cable tracer?

The basic cable-tracing device consists of two parts: the tone generator and the probe. The tone generator (transmitter) sends a signal down the cable, and the probe (receiver) picks up and amplifies the signal at the other end of the cable.

How do you read a cable tester?

If we put it to on it'll cycle through each of the pins on the cable. Your one check both sides to

How do I test if a cable is live?

A non-contact voltage tester is the safest way for testing live wires, performed by placing the machine near the wire. With digital multimeters, the two probes are attached to the cable and can check for resistance, amps and voltage.

How do you test a copper wire with a multimeter?

And all we're gonna do is simply touch one end on one of the probes. One end on the other one okay.

What are the types of cable tester?

There's are two types. There's a TDR for testing copper, twisted pair or coaxial, and then the OTDR is optical time‑domain reflectometer which is used for testing fiber. A TDR or an OTDR, it's used to determine the distance of a cable run.

Which tool is tested most cable wiring?

A cable tester is an electronic device used to verify the electrical connections in a signal cable or other wired assembly. Basic cable testers are continuity testers that verify the existence of a conductive path between ends of the cable, and verify the correct wiring of connectors on the cable.

Can you check a cable with a multimeter?

Turn the multimeter's dial to resistance and choose a small scale. Place the cable and its plugs on a flat wooden surface. This time, check the sleeves, i.e. the longer parts of the plug. Use the probes to hold the plug sleeves down — red on one plug and black on the other.

Does copper stick to magnet?

Certain metals in their natural states such as aluminium, copper, brass, lead gold, and silver don't attract magnets due to the fact they are weak metals. However, properties including iron and steel can be added to these metals in order to make them magnetic.

How do you test copper with a magnet?

"Just like real silver, copper is only very slightly magnetic," Martin says. "You can conduct the same magnet test by placing a magnet on the surface of the item. If the magnet sticks, you can make sure that the item isn't copper." Small magnets are also easy for you to bring to the flea market or antique shop.

What is the difference between a regular cable tester and a cable certifier?

Essentially, cable certifiers only need to be used if required by a cable manufacturer's warranty, or specifically stated in the job specification. In all other scenarios, a transmission tester is the most effective and economical way to provide proof of performance to an international standard.

What is a Level 3 cable tester?

The TIA Level III are used to certify the performance of the upcoming 10 Gigabit Ethernet link specifications.

How do I test if cable is bad?

To test, connect the multimeter to each of the wire's ends. As before if a full circuit is made and there are no problems, when connected the multimeter should show a low reading. If the reading is showing 'I' it means, there is a break.

How do you test a crossover cable without a cable tester?

Plug one end of the cable into the ethernet jack on one computer, and do the same for the other computer. Make sure you use the right jack. The HDMI or USB jacks won't work. Confirm that you're using a crossover cable.

Which of the following is used to test a network cable or port?

Cable testers A cable tester is used to test for any faults or breaks in an Ethernet cable. Cable testers are designed to allow you to plug both ends of a cable into the tester.

11 Copper cable tester Images

Siwali Swantika Distributor Resmi Indonesia Authorized Distributor

Copper Cable Testers Selection Guide Fluke Networks

ST007 Fiber Copper Cable Tester Bitrate

Copper Cable Testers Selection Guide kokr Fluke Networks

Copper Cable Testers Fluke

FLUKE NETWORKS Cable Network Tester Network Cabling Copper Cable

Fiber Copper Network Solutions

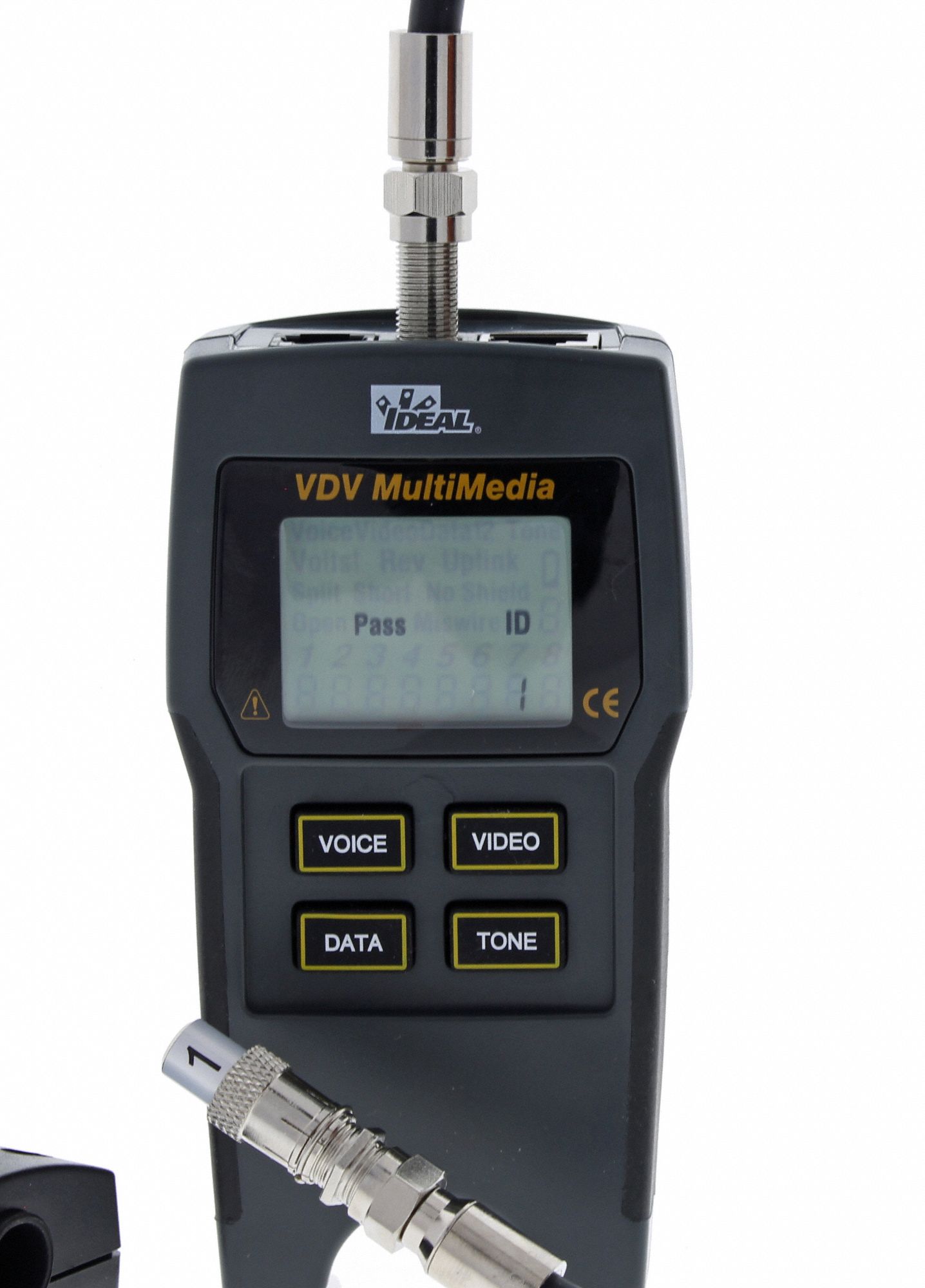

IDEAL Multimedia Cable Tester 2NV5833856 Grainger
