An adder, or summer, is a digital circuit that performs addition of numbers. In many computers and other kinds of processors adders are used in the arithmetic logic units (ALUs).

What is full adder subtractor?

In digital circuits, an adder–subtractor is a circuit that is capable of adding or subtracting numbers (in particular, binary). Below is a circuit that adds or subtracts depending on a control signal. It is also possible to construct a circuit that performs both addition and subtraction at the same time.

What is half subtractor truth table?

Half Subtractor (HS): Half subtractor is a combination circuit with two inputs and two outputs which is difference and borrow. It produces the difference between the two binary bits at the input and also produces an output (Borrow) to indicate if a 1 has been borrowed.

What is difference between full adder and full subtractor?

When designed from truth-tables and K-maps, a full subtractor is very similar to a full adder, but it contains two inverters that a full adder does not. When configured to subtract, an adder/subtractor circuit adds a single inverter (in the form of an XOR gate) to one input of a full adder module.

What are types of binary subtractor?

Types of Binary Adder & Subtractor

• Half Adder.
• Full Adder.
• 4 Bit Adder.
• Subtractor.
• Adder / Subtractor.

How do you do BCD subtraction?

To subtract two BCD numbers, we are going to use the 10s complement method. Taking the first number and storing into B, Load 99 into A then subtract the number to get the 9's complement. After that add 1 with the result to get 10's complement. We cannot increase using INR instruction.

How do you subtract in truth tables?

When you add a a supply and B and a borrow out follow in the display the full subtractor performs

Which circuit is used for subtraction?

A Half Binary Subtractor Circuit A half subtractor is a logical circuit that performs a subtraction operation on two binary digits.

What is a binary subtractor?

A binary subtractor is a device that accepts two binary numbers at its input and produces a difference at its output.

How does a 4-bit adder subtractor work?

The Binary Adder-Subtractor is a combination of 4 Full-Adder, which is able to perform the addition and subtraction of 4-bit binary numbers. The control line determines whether the operation being performed is either subtraction or addition. This determination is done by the binary values 0 and 1, which is hold by K.

What is full subtractor diagram?

A full subtractor is a combinational circuit that performs subtraction of two bits, one is minuend and other is subtrahend, taking into account borrow of the previous adjacent lower minuend bit. This circuit has three inputs and two outputs.

What is a 4 bit binary subtractor?

In Digital Circuits, A Binary Adder-Subtractor is one which is capable of both addition and subtraction of binary numbers in one circuit itself. The operation being performed depends upon the binary value the control signal holds. It is one of the components of the ALU (Arithmetic Logic Unit).

Why BCD is called 8421 code?

The BCD8421 code is so called because each of the four bits is given a 'weighting' according to its column value in the binary system. The least significant bit (lsb) has the weight or value 1, the next bit, going left, the value 2.

Where is full subtractor used?

The full subtractor is used to subtract three 1-bit numbers A, B, and C, which are minuend, subtrahend, and borrow, respectively. The full subtractor has three input states and two output states i.e., diff and borrow.

How many outputs are in a subtractor?

Explanation: There are two outputs required for the implementation of a subtractor. One for the difference and another for borrow.

What are the applications of subtractor?

Subtractors are mostly used for performing arithmetical functions like subtraction, in electronic calculators as well as digital devices. Subtractors are used in processors to compute tables, addresses, etc. It is also useful for DSP and networking based systems.

Why a full adder is called so?

A full adder circuit is central to most digital circuits that perform addition or subtraction. It is so called because it adds together two binary digits, plus a carry-in digit to produce a sum and carry-out digit.

What is the full subtractor?

The full subtractor is a combinational circuit which is used to perform subtraction of three input bits: the minuend , subtrahend , and borrow in . The full subtractor generates two output bits: the difference and borrow out . is set when the previous digit is borrowed from .

What is the binary subtraction of 101001 010110 =?

Question :- what is the binary subtraction of 101001-010110 ? → 010011 (Ans.)

15 Binary subtractor truth table Images

Four Bit 4 Bit Adder Subtractor Truth Table Decoration Items Image

Counting in Binary For Truth Tables YouTube

Four Bit 4 Bit Adder Subtractor Truth Table Decoration Items Image

tech2play Binary Subtraction

Binary truth INVESTED iQ

Solved The truth table for a 1bit combinational binary Cheggcom

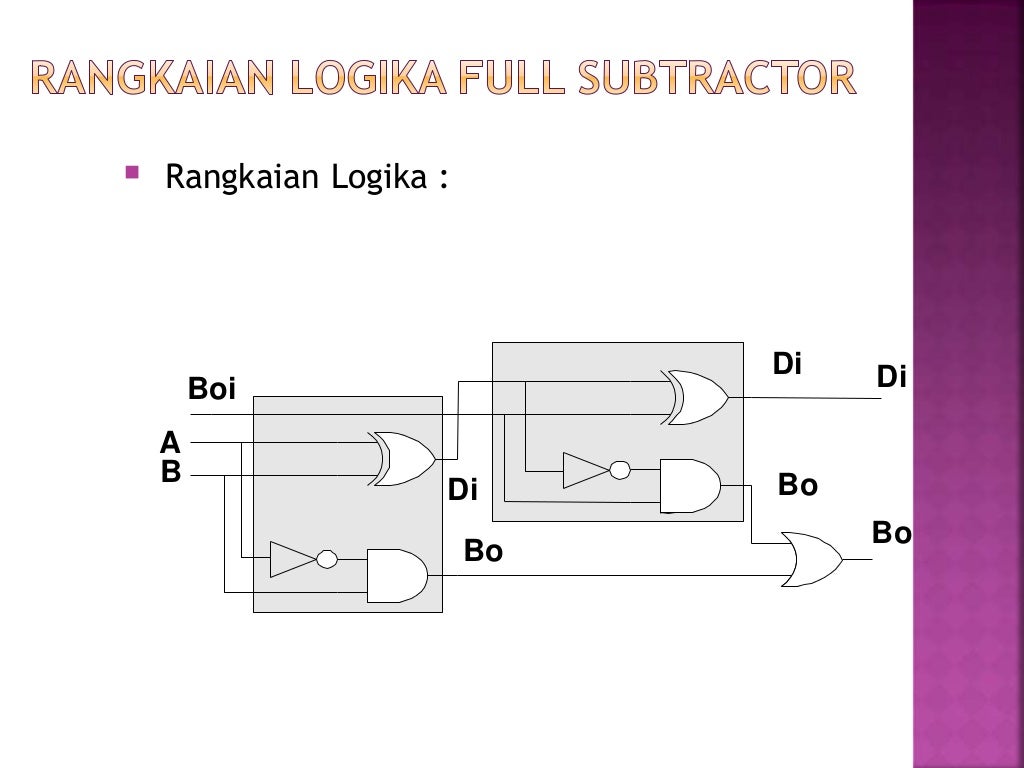

4 bit binary full subtractor
