What is plug setting multiplier

Mho relay is a voltage restrained directional relay. Important Points: Reactance relay is suitable for the protection of a short transmission line because its operation is independent of arc resistance. The relay which is selected for a long transmission line should be less affected due to power swings.

What is time setting multiplier of a relay?

A Relay is generally provided with control to adjust the time of operation of the Relay. This adjustment is known as Time Setting Multiplier or TSM. Normally a Time Setting Dial is provided which is calibrated from 0 to 1 s in step of 0.05 s.

What is the significance of TSM?

TSM provides executional data that can create a continuous feedback loop, enabling you to better understand the factors that affect overall performance as well as answering important questions that can lead to improvement and lower costs.

What is TMS in protection?

Time Multiplier Setting (TMS) or Time Dial.

What is meant by relay time?

Timer Relays A Timer Relay is a combination of an electromechanical output relay and a control circuit. The contacts will open or close before or after a pre-selected, timed interval.

What is Idmt and DMT?

DMT and IDMT application is used so that when current raises above threshold value the relay does not trip immediately and the trip time is calculated for that actual current and still increasing for particular duration the relay signal is given manually and tripping occurs for protection of component.

What is use of PSM and TSM?

Time Setting Multiplier (TSM): The arrangement provided for setting the operating time of protective relay from zero sec to maximum permissible time for a specified current setting is known as time setting multiplier. Plug Setting Multiplier (PSM): It is the ratio of fault current in relay coil to pick-up current.

What is PSM and TMS?

The plug setting multiplier of a relay is defined as the ratio of secondary fault current to the pick-up current. PSM = Secondary fault current/Relay current setting. Pick up current = (Rated secondary current in CT) x (Current setting) Important Point: Time Multiplier Setting (TMS) is the ratio.

How many TMS treatments are needed?

During a typical course, you'll receive around 36 treatments over a nine week period. You'll undergo five treatment sessions per week for the first six weeks, and then taper down the remaining six sessions over the following three weeks.

Can TMS be harmful?

As mentioned earlier, TMS therapy is highly effective and proven safe. However, that does not mean that patients can't experience any side effects from this treatment. The most common side effects that impact patients include mild headaches or tingling in the scalp or jaw.

What is the difference between 50 and 51 relay?

50 and 51 are types of overcurrent relays (relays driven by a current transformer). Type 50 is an "instantaneous off" relay, whereas type 51 has an inbuilt time delay.

What are the two settings of a relay?

These relays also have two settings: the pick-up current and the curve level. In early electromechanical relays the curve is set by means of a dial. Thus, the setting is called the “time dial setting - TDS”.

What are the four 4 modes of time delay relays?

Time delay relays are built in these four basic modes of contact operation:

• 1: Normally-open, timed-closed.
• 2: Normally-open, timed-open.
• 3: Normally-closed, timed-open.
• 4: Normally-closed, timed-closed.

Where is Idmt relay used?

An IDMT relay is used to protect feeder through 500/1 CT. The relay has a PSM 100% and TMS = 0.4, relay characteristics are given for TMS = 1.

How do you calculate TMS?

(2) TMS <= Minimum Fault Current / CT Primary Current.

What are the four functions of a relay?

As a control element, relays have the following functions:

• Expanding control range.
• Amplification.
• Integrated signal.
• Automatic control, remote control, and monitoring.

What is 50N protection?

50N is a ground protection consisting of a set of residual-connected CTs. This protection is obtained by connecting three independent CTs in residual connection to the protection relay 50N. This means that you are saving money by using the Phase protection CTs to obtain a further ground protection.

How does a distance protection relay work?

A distance relay is a type of protection relay most often used for transmission line protection. Distance relays measure the impedance from the installation side to the fault location and operates in response to changes in the ratio of measured current and voltage.

What is Idmt relay?

IDMT relay is inverse definite minimum time relay. It is one in which Time of operation is inversely proportional to magnitude of fault current near pickup value and becomes substantially constant slightly above the pickup value of the Relay.

How the Buchholz relay works?

If an electrical arc forms, gas accumulation is rapid, and oil flows rapidly into the conservator. This flow of oil operates a switch attached to a vane located in the path of the moving oil. This switch normally will operate a circuit breaker to isolate the apparatus before the fault causes additional damage.

5 What is plug setting multiplier Images

Popup Title Goes Here

Engineering PhotosVideos and Articels Engineering Search Engine

6Outlet Multiplier Set of 2 WallTap Outlets Ideaworks 12 Outlets

Multiplier

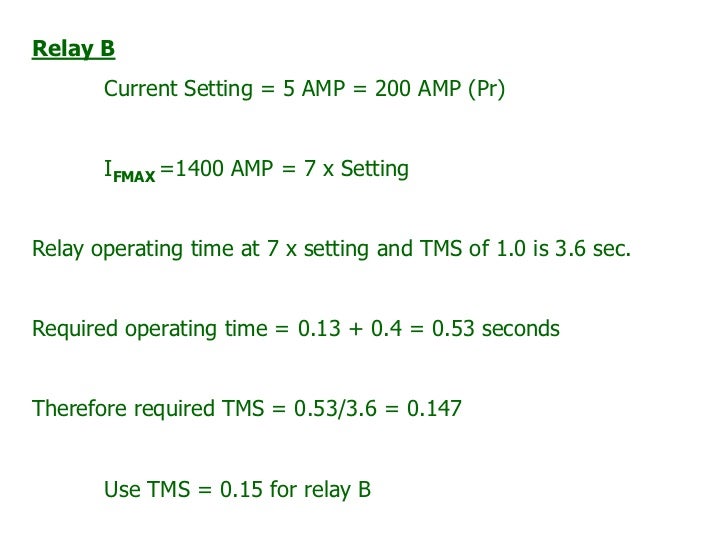

ECNG 3015 Overcurrent Protection
