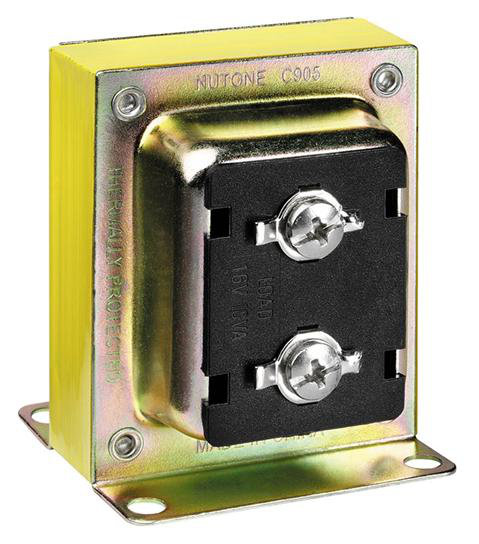

Vintage doorbell transformer

For metal junction boxes, it is required to connect the green ground wire from the transformer to the metal junction box or clamp it to the metal conduit. If it doesn't work when connected properly then either you have something very strange going on in your panel or the device is defective.

Which breaker stops doorbell?

A doorbell's transformer is not directly connected through a dedicated circuit breaker. Instead, it's wired to an existing light switch, outlet, or electrical box sharing a circuit with other electrical devices. So, typically, you cannot easily find breaker for doorbell inside the main electrical panel.

Do I need to turn off power to change doorbell transformer?

As you test the doorbell components, you don't need to turn off the power. The doorbell transformer takes the household voltage of 120 and typically reduces it to around 16 volts for doorbell operation. Though you can leave the power on as you test, turn it off before you begin replacing any of the doorbell parts.

How do I increase the voltage on my doorbell?

16 volt doorbell transformers are available. If your current doorbell transformer is not 16 volts, it should be a simple matter to replace it with a 16 volt transformer. Your local Ace Hardware, Lowes, Home Depot, or other store should have 16 volt transformers.

How long does a doorbell transformer last?

A basic low-tech doorbell that consists of a bell button, a transformer, wiring, and a bell mechanism can be expect to last about 40 years.

What size transformer do I need for ring doorbell?

The Ring Video Doorbell Pro requires a doorbell transformer rated at 16-24 VAC 50/60HZ, 10-40VA max. The Ring Video Doorbell Pro 2 is slightly different, requiring a doorbell transformer rated at 16-24 VAC 50/60HZ, 30-40VA max.

Will a 16V 10VA transformer work with ring doorbell?

Our Ring Pro requires a power supply between 16VAC and 24VAC to operate as intended. A 16V 10VA rated transformer is fine to use, however, it's important to consider the age/ length of wiring, number of chime kits, and other factors such as resistance.

Do transformers have a positive and negative?

There is no polarity in a transformer, not hot, nor ground. A transformer is an AC device, and it isolates the two sides, and is not connected to the core.

Can you wire a doorbell without a transformer?

Any transformer that converts line-voltage to low-voltage will work as a doorbell transformer. Is a transformer required for all doorbells? Yes. Doorbells are low-voltage applications and they will not work without a transformer.

Does polarity matter on transformer?

Transformer polarity is fundamental to grasping how transformers function and how they're utilized. Understanding polarity is essential to properly paralleling single-phase transformers and connecting instrument transformers (current and potential) to metering devices and protective relays.

How do I identify my doorbell transformer?

The doorbell transformer may be located on the wall near your security alarm keypad or control station. Look in the utility room: A lot of doorbell transformers are installed in the utility rooms of your home's HVAC unit or furnace.

How many volts is a doorbell transformer?

The voltage of the transformer Most doorbell transformers have a voltage of 16 volts, but some may have a higher or lower voltage.

How many ring doorbells can a transformer have?

Do I need more than 1 transformer if I hook up 2 door bells pro cams? A: 2 Video Doorbell Pros can certainly operate on 1 transformer.

Does it matter which wire goes where on a doorbell transformer?

Typically, it does not matter which wire goes to which terminal. Turn the power back on at the breaker.

Do old doorbells have transformers?

The doorbell transformer powers the chime, and every doorbell system that is wired into a home's electrical system (and isn't battery powered) has one, even modern video systems like Nest Hello or Ring Doorbell.

Where is a doorbell transformer typically located?

Doorbell transformers are usually tucked away along an exterior wall in your garage, basement, or attic. It will be in the general vicinity of your doorbell(s), typically close to the ceiling of that room. It will be attached to the side of a wall-mounted electrical junction box.

Are doorbell transformers AC or DC?

The doorbell transformer must support 220-240V AC on the input side and anywhere from 8 to 24V AC on the output side. Often the low voltage side will use screws as connection points instead of wires (as shown in picture).

What does va mean on a transformer?

Volt-ampere explained As a unit of measurement for electrical power, VA represents how much energy a device consumes or how much current it draws from the electrical circuit. In electrical circuits, power is measured in volts (V), as well as in amperes (A). A volt is the unit of electric potential difference.

How do you replace a old doorbell transformer?

Let's review the step-by-step process to replace the doorbell transformer.

1. Turn off the circuit breaker for the transformer.
2. Disconnect the power supply.
3. Disconnect and remove the old transformer.
4. Wire and install the new transformer.
5. Power the transformer back on.

How do you trace a doorbell wire?

1 Answer

1. Disconnect power to the transformer.
2. Disconnect the red wire from the "Trans" terminal on the chimes, and connect it to the loose red wire.
3. Disconnect the door bell wires from the transformer, and connect them to the signal generator.
4. Scan the area around the door with the probe.
