Series Generator - Why DC Series Generator Is Not Started At No Load?

Series generator

The DC series motor attains dangerously high speed when we run it on no load. The main reason of over speeding is that at no load the flux produced by the field winding is very less and the reduced flux cause over speeding of the motor.

Can a series generator be operated on no load?

At no load condition, load on the motor is zero hence armature current(Ia) is also zero. From equation (i) (If=Ia) hence field current(If) will also=0 at no load condition. Hence based on above discussion it is advised that DC Series motor should not operate at no load condition.

What is the difference between series and shunt motors?

A series motor respond by decreasing its speed with small increase in current for a given load torque. A shunt motor holds its speed nearly constant with large increase in input current for same amount of load torque.

What are the applications of series motor?

Application of DC Series motor

• Cranes.
• Air compressor.
• Lifts.
• Elevators.
• Winching system.
• Electric traction.
• Hair drier.
• Vacuum cleaner and in speed regulation application.

Can an electric motor run a generator to power itself?

YES, but it can only be done long term with an electric motor that is designed to also run as a generator and if the generator will be paralleled with other generation the motor will need to be a synchronous motor.

What is a shunt generator used for?

Applications of Shunt Wound DC Generators They are used for general lighting. They are used to charge battery because they can be made to give constant output voltage. They are used for giving the excitation to the alternators. They are also used for small power supply (such as a portable generator).

Why does a series generator have rising characteristics?

It should be noted that the DC series generator has rising characteristics because its terminal voltage increases as the load current increases. However the terminal voltage starts to decrease at high loads due to excessive demagnetizing effect of armature reaction.

Why series motor should not be started unloaded?

A series motor should never be started at no load. With no mechanical load on the series motor, the current is low, the counter-EMF produced by the field winding is weak, and so the armature must turn faster to produce sufficient counter-EMF to balance the supply voltage. The motor can be damaged by overspeed.

What are characteristics of series generator?

The internal characteristics of a DC series generator is the graph plotted between generated EMF (E) on-load and the armature current. Because of the effect of armature reaction, the magnetic flux on-load will be less than the flux at no-load.

What are the 4 types of generator?

Based on these applications various types of generators include portable generators, inverter generators, standby generators, industrial generators and induction generators. Portable generators are very useful in a variety of applications. They come in varying power configurations suitable for different types of uses.

What is a DC series motor?

A series motor is a direct current motor that has two windings that are in series, with the same current flowing through each. Use of series motors is generally limited to cases where a heavy power demand is necessary to bring the machine up to speed, as in the case of certain elevator and hoist installations.

How many KVA does a welder need?

Can I use a small(er) generator to run my welder? As shown in the table 5a above ↑, the recommended minimum generator size is not less than 7kva (for up to 160A welders).

Why is a series generator not practical?

Variation in load resistance causes the terminal voltage to vary. The terminal voltage will start falling, at saturation armature reaction effect becomes pronounced at large load current. Hence, series generators are not used for delivering power at a constant voltage.

Which type of motor is used in welding?

They consist of a (3-phase) motor, directly coupled to a DC generator.

What is DC series-wound generator?

When the field winding of a DC generator is connected in series with the armature, the generator is called a series-wound generator (Figure 10). The excitation current in a series-wound generator is the same as the current the generator delivers to the load.

Why series motor is used when high starting torque is required?

Series motors have the characteristic of developing very high starting torques. The reason for this is the same current that passes through the armature also passes through the field windings.

What are the 4 types of motors?

They are:

• Series DC Motor.
• Shunt/Parallel DC Motor.
• Compound DC Motors.
• Permanent Magnet DC Motor.

How do I calculate generator size?

Mathematics of Calculating Generator Sizing

1. Running Wattage (R) = 350 watts.
2. Starting Wattage (S) = 350 x 3 = 1,050 watts.
3. Total Wattage (R + S) = 350 + 1,050 = 1400 watts.

Why is it called DC generator?

A DC generator or direct current generator is one kind of electrical machine, and the main function of this machine is to convert mechanical energy into DC (direct current) electricity.

What are series generators used for?

Applications of Series DC Generators Hence, several series generators can be connected in series to provide high voltage DC power transmission at constant load current. The series DC generators are also used in supplying field excitation current in DC locomotives for regenerative breaking.

6 Series generator Images

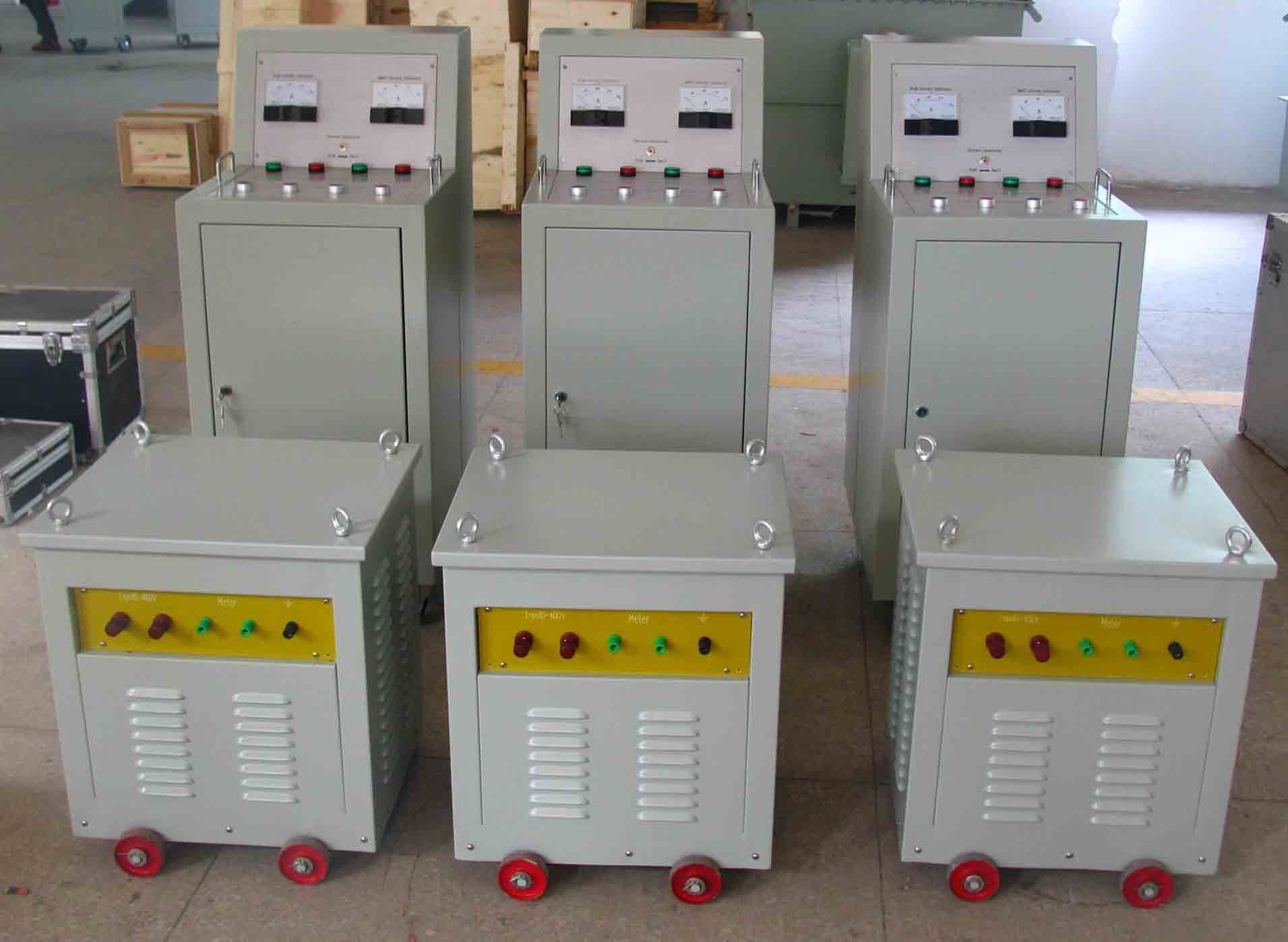

Series Large Current Generator China Generator Products Generator
