Combinational logic examples

Combinational elements are elements like logical gates that have no state and rely entirely on current inputs to produce an output. Given identical inputs, a combinational element will always produce the same output. An example of a combinational element is an ALU unit within a CPU.

Is an ALU combinational?

The ALU is a combinational logic circuit that performs addition and subtraction, as well as the logical operations AND, OR and XOR.

Can you mix 2 types of RAM?

Can You Mix Different RAM Brands? In short, the answer to this question is: yes. No matter the brand, speed, and size of the RAM, theoretically you can mix and match RAM in your system; though it may prove to be problematic. Also, depending on the setup & workload, you may not even notice a difference in performance.

Why is it called combinational logic?

Combinational Logic Circuits are made up from basic logic NAND, NOR or NOT gates that are “combined” or connected together to produce more complicated switching circuits.

What is the difference between combinational logic and?

The major difference between combinational and sequential logic circuit is that the combinational logic circuit consists of only logic gates while the sequential logic circuits consist of logic gates and memory elements.

Are flip flops combinational?

In a digital system, the logic circuits can be divided into two classes: combinational and sequential. A combinational circuit uses logic gates only; a sequential circuit uses flip-flops (ffs) and logic gates.

What are the two types of combinational circuits?

There are three main categories of combinational circuits: arithmetic or logical functions, data transmission and code converter as given below in category diagram. Functions of Combinational circuits are generally expressed by Boolean algebra, Truth table, or Logic diagram.

Which is not an example of combinational circuit?

Registers: The register is a set of data holding units which is the part of a computer processor. It is not constructed by the use of logic gates and does not perform any operation. Thus, we can say that the register is not a combinational circuit.

Is multiplexer is a combinational circuit?

It is a combinational circuit which have many data inputs and single output depending on control or select inputs.

Is a CPU a combinational circuit?

The actual mathematical operation for each instruction is performed by a combinational logic circuit within the CPU's processor known as the arithmetic–logic unit or ALU. In general, a CPU executes an instruction by fetching it from memory, using its ALU to perform an operation, and then storing the result to memory.

What is a combinational logic system?

A combinational logic circuit is a circuit whose outputs only depend on the current state of its inputs. In mathematical terms, the each output is a function of the inputs.

Is a register combinational or sequential?

A register is a set of flip-flops with combinational logic to implement state transitions that allow information to be stored and retrieved from them. In the simplest form, a flip-flop is a one-bit register.

Does RAM use flip-flops?

use in computer memory Static RAM (SRAM) consists of flip-flops, a bistable circuit composed of four to six transistors. Once a flip-flop stores a bit, it keeps that value until the opposite value is stored in it. SRAM gives fast access to data, but it is physically relatively large.

What is meant by combinational?

Definitions of combinational. adjective. able to or tending to combine. synonyms: combinable, combinatory combinative, combinatory. marked by or relating to or resulting from combination.

What is the difference between combinational logic and sequential logic?

The combinational circuit is time-independent. The output it generates does not depend on any of its previous inputs. On the other hand, sequential circuits are the ones that depend on clock cycles. They depend entirely on the past as well as the present inputs for generating output.

What uses combinational logic?

Combinational circuits are used in a wide variety applications including calculators, digital measuring techniques, computers, digital processing, automatic control of machines, industrial processing, digital communications, etc. Different types of combinational logic circuits are used for various applications.

Is ROM a combinational circuit?

It consists of two basic components – Decoder and OR gates . A Decoder is a combinational circuit which is used to decode any encoded form ( such as binary, BCD ) to a more known form ( such as decimal form ) . In ROM, the input to a decoder will be in binary form and the output will represent its decimal equivalent .

Is logic gate a combinational circuit?

A combinational circuit is the digital logic circuit in which the output depends on the combination of inputs at that point of time with total disregard to the past state of the inputs. The digital logic gate is the building block of combinational circuits.

Does combinational logic have memory?

Logic circuits divide into two neat categories: combinational circuits and sequential circuits. A combinational circuit has no memory of previous inputs, while a sequential circuit does.

What are the 8 logic gates?

The basic logic gates are classified into seven types: AND gate, OR gate, XOR gate, NAND gate, NOR gate, XNOR gate, and NOT gate. The truth table is used to show the logic gate function. All the logic gates have two inputs except the NOT gate, which has only one input.

5 Combinational logic examples Images

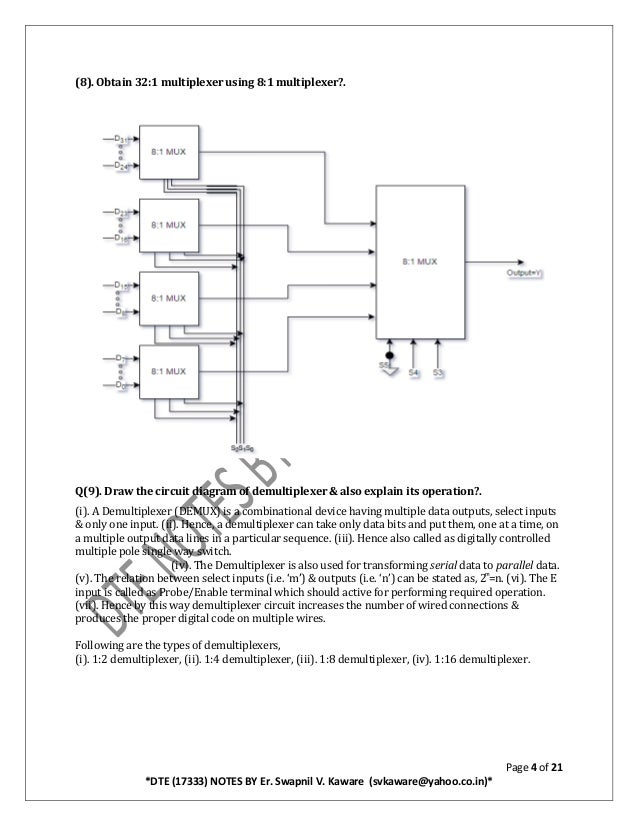

Combinational Logic Circuits

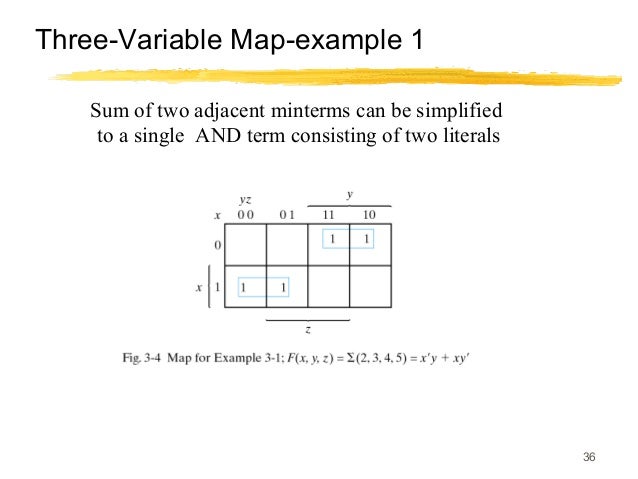

02 combinational logic

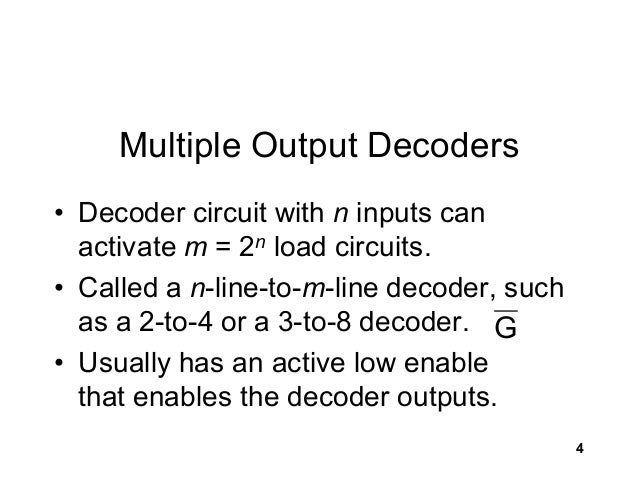

Chapter 06 Combinational Logic Functions

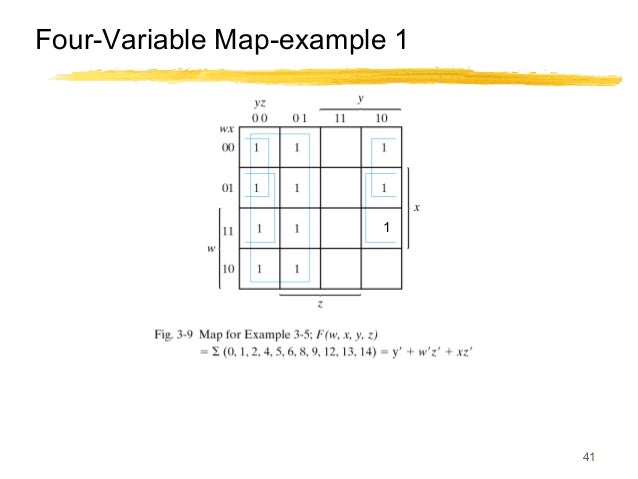

02 combinational logic
